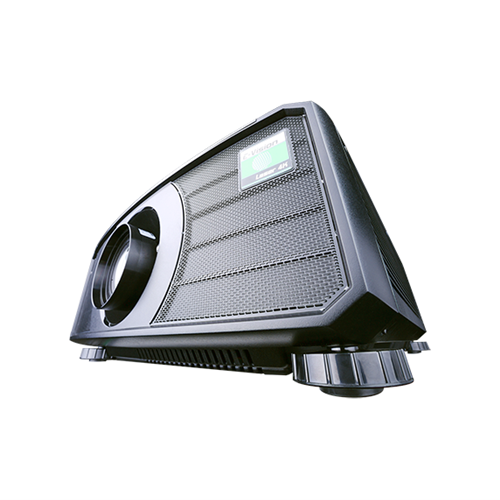

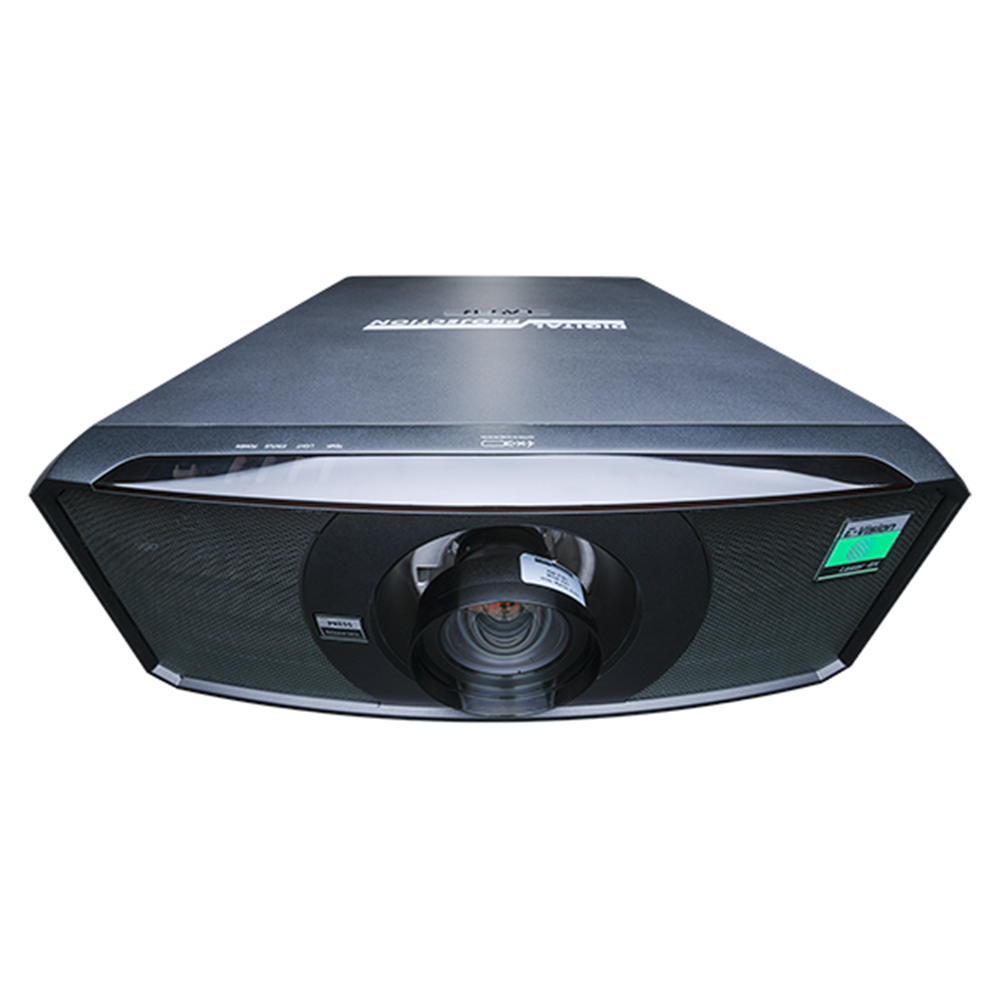

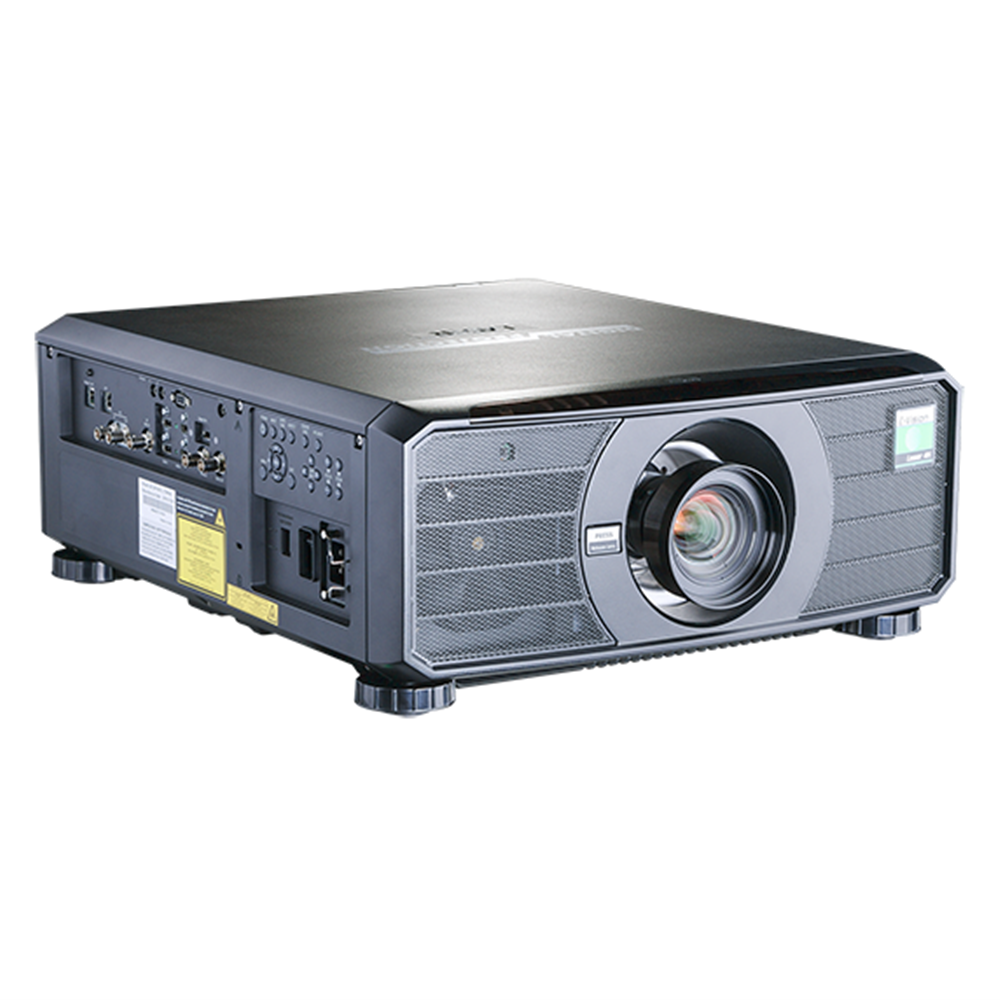

E-Vision Laser 11000 4K-UHD

• 10,500 ISO Lumens / 9,500 ANSI Lumens (HC Model 4,700 / 4,200)
• 6,000:1 Dynamic Contrast Ratio (HC Model 18,000:1)
• 4K-UHD Resolution

10,500 lumens of solid-state illumination at 4K-UHD resolution
The E-Vision Laser 11000 4K-UHD delivers a stunning 10,500 lumens from a stable solid-state light source, capable of producing over 20,000 hours of illumination. The 4K UHD resolution delivers stunning detail and image subtlety that only 4K-UHD powered by Texas Instruments DLP chip can. This single chip projector was developed with Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout the lifetime of the display. With display resolutions of 4K-UHD (3840 x 2160) or WQXGA+ (2716 x 1528), this projector offersthe ultimate in flexibility.


Equally compelling is the lack of lamp replacements due to the solid state illumination system. By bypassing regular lamp replacement cycles, almost all costs related to the E-Vision Laser are incurred at time of purchase. This key characteristic allows the E-Vision Laser 10000 4K-UHD to have a much lower cost of ownership over the lifespan of the display.


Combine the exceptional bright, long-life illumination source with a host of other precision features, and you have a projector solution that’s perfectly suited to a diverse range of professional venues. HDMI 2.0 with HDCP 2.2 comes as standard as well as DisplayPort 1.2 with HDCP 2.2 for when you need Frame Sequential and Dual Pipe 3D.

Specifications

• Colour System: Laser Phosphor with enhanced colourwheel
• DMD Specification: Display resolutions 4K-UHD (3840 x 2160) or WQXGA+ (2716 x 1528)
• Display Type: 1 x 0.67" WQXGA+ TRP UHD DMD™
• 8.3 megapixels on screen at 4K-UHD: Fast transit pixels for smooth greyscale and improved contrast.
• Aspect Ratio: 16:9
• Fill Factor Not applicable: Smooth Picture DMD™

Key Features

Video & Graphics Processing

• Two projectors in one - 4K-UHD and WQXGA+
• DisplayPort 1.2 with HDCP 2.2
• 2 x HDMI 2.0 with HDCP 2.2
• 2 x HDMI 1.4b inputs with HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
• Sequential Processing: 3D via single HDMI 1.4b input
• Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs
• Synchronisation of active glasses
• 3G-SDI with loop-through
• DICOM simulation mode

Geometry Correction

• Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
• User definable custom warp
• Digital zoom, pan and scan.
• Independent four boundary blanking control for custom input window sizing
• Scaling available for fixed aspect ratio screens.
• Unscaled processing for pixel mapped display.

Edge Blending

• Blending control available for all sides with width control.
• Correction for non-active pixels at the edge of the display.

Picture in Picture

• Two sources can be displayed simultaneously using 2D inputs with the original aspect ratios maintained

HDBaseT® Interface

• Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
• Allows projector to be placed up to 100m from source with low cost cabling
• Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4

Colour Processing

• Four colour modes available: ColorMax / Manual Color Matching / Color Temperature / Gains and Lifts
• Powerful seven point colour correction for accurate colour matching with presets
• Easy colour temperature selection
• Manual seven point colour adjustment
• Traditional lifts and gains

Projector Controller Software

• Intuitive user interface for network control
• Simultaneous control of user-defined groups of projectors
• At-a-glance monitoring of projector status

Projector Automation

• Real-time clock provides daily on/off automation
• E-mail alerts for system status

Source Compatibility:

• 2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort
• inputs.
• 3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
• 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
• WQXGA+ mode:
  • 2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
  • 3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.
• 4K-UHD mode:
  • 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.
• Auto mode:
  • Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
  • Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.

Inputs/Outputs

Video & Computer			Communication & Control
Type	Connector	Qty	Type	Connector	Qty
DisplayPort 1.2 (2D)	DisplayPort	1	3D Sync Out	BNC	1
HDMI 1.4b (3D)	HDMI	2	3D Sync In	BNC	1
HDMI 2.0 (2D)	HDMI	2	LAN	RJ45	2
3G-SDI in (2D)	BNC	1	RS232	9-pin D Sub	1
3G-SDI out	BNC	1	Wired Remote	3.5mm Stereo	1
HDBaseT (see LAN) (2D)	RJ45	1	12V Trigger	Jack	2
			3D Sync IR Out	3.5mm Stereo Jack BNC	1
			NOTE: One of the LANports is shared withHDBase-T.

3D Formats Supported

• Frame Sequential
• Dual-Pipe

HDTV Formats Supported

• 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
• 1080i (50Hz, 60Hz)
• 720p (50, 60Hz)
• 2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
• 4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

Computer Compatibility

• 2D
  • 4K-UHD up to 60Hz.
  • WQXGA+ up to 120Hz.
• 3D
  • Supported formats will be displayed within WQXGA+.

Bandwidth

• 498 megapixels per second via DisplayPort and HDMI 2.0.

Remote Control

• Addressable IR remote control, wireless and wired.
• On-Board keypad

Automation Control

• Crestron RoomView® Connected
• PJLink Class 1
• LAN
• RS232
• AMX (Device Discovery)
• Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)

Colour Temperature

• 3200K to 9300K

Lamp Type

• Laser Light Source

Typical Lamp Life

• 20,000 hours

Lenses

Lens	Part No.	Optimised Focus Range	Lens Shift
0.38 :1 fixed	117-341	0.68m - 2.44m	none
0.76 :1 fixed	112-499	0.81m - 5.08m	none
0.74 - 0.93 :1 zoom	115-339	1.02m - 12.7m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.24 - 1.78 :1 zoom	112-500	1.33m - 11.73m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.71 - 2.25 :1 zoom	112-501	1.83m - 14.9m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.20 - 3.67 :1 zoom	112-502	2.36m - 24.2m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.54 - 5.36 :1 zoom	112-503	3.8m - 35.35m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.24 - 8.27 :1 zoom	112-504	5.59m - 54.8m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame

Lens Mount

• Motorised and programmable shift, zoom and focus.
• Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

• Front/Rear Table
• Front/Rear Ceiling
• Adjustable Front/Rear Feet

Orientation

• Table Top or Inverted: Yes
• Pointing Up: Yes
• Pointing Down: Yes
• Roll (Portrait): Yes

Power Requirements

• 100-130VAC and 200-240VAC selectable, 50/60Hz single phase

Power Consumption

• 100V_60HZ Typical: 1344W, Maximum TBDW
• 240V_50HZ Typical: 1290W , Maximum TBDWW

Thermal Dissipation

• Typical 4590 BTU/Hour @ 100VAC
• Typical 4406 BTU/Hour @ 240VAC BTU/Hour

Fan Noise

• Smooth Picture On:
  • Normal mode: typical 43 (max 45) dBA
  • Eco mode: typical 39 (max 41) dBA
• Smooth Picture Off:
  • Normal mode: typical 42 (max 44) dBA
  • Eco mode: typical 38 (max 40) dBA

Operating/Storage Temperature

• Operating: 5 to 40C (41 to 104F)
• Storage: -10 to 60C (14 to 140F)

Operating Humidity

• 10 to 85% non-condensing ((with maximum temperature of 40C )

Weight (Chassis Only)

• 31 kg
• 63.34 lb

Dimensions

• L: 59.83 cm x W: 50 cm x H: 21.85 cm
• L: 23.55 in x W: 19.68 in x H: 8.60 in

Safety & EMC Regulations

• UL/cUL, CB, CCC, CQC Eco label, CECP, KC, KTL, IC,BSMI, RoHS (China), RoHS (EU),FCC Class A, FDA,CE, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 2, WEEE (EU)

Accessories

• Infrared Remote (replacement): 118-678
