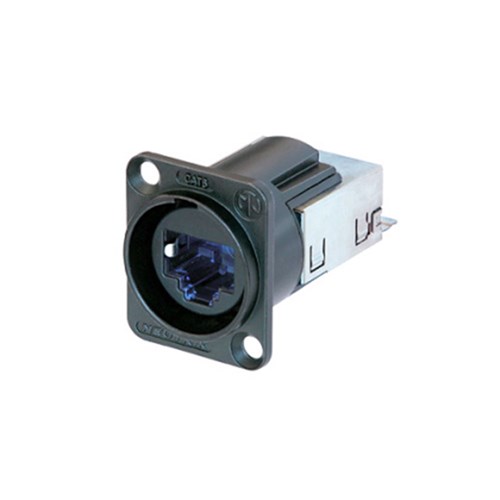

NE8FDY-C6-B

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors.
Not compatible with the etherCON cable connector carriers NE8MC* and the CAT6A cable connectors NE8MX6*.

Features & Benefits

• CAT6 compliant - data rate up to 10 GBit/s
• CAT6 performance - fast data transmission and high bandwidth applications
• CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
• IP65 - Dust and waterproof in mated condition
• Shielded system - high noise immunity and EMI protection
• Push Pull mating - secure and proven locking system
• Ground lead jumper on panel connector with selectable grounding option
• Gas-tight IDC termination without tool
