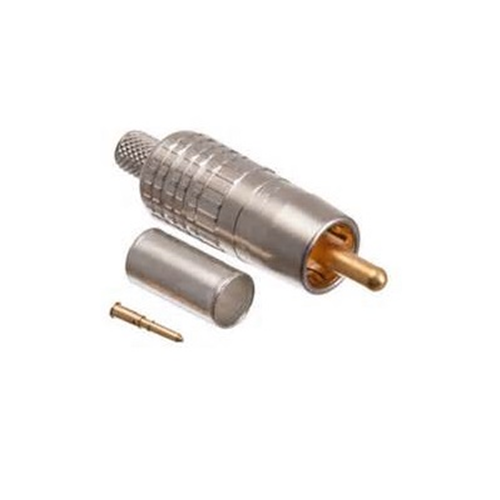

RCA CRIMP CONNECTOR

Product Code: CA-RCAP-C4F

Brand
Canare
RRP $20.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
  • Details
  • Downloads
?  Multimedia Patchcords.
?  Hi-Res Video Monitors.
?  SPDIF Digital Audio.
?  Duplication Decks.
?  VCR and Camcorders.
?  Audio Interconnects.
?  Home Theater Installations.
?  Standard 75 ohm construction Crimp Pin & Sleeve.
?  DC to 200MHz >26dB Return Loss (<1.1 VSWR) .
?  Absolutely No Soldering Required.
?  Assembly Time Reduced by 80%.
?  Superior cable pull strength.
?  Internal Pressure Contact Fingers.
?  Gold plated center Shaft.
?  Easy Assembly using Canare Strip & Crimp Tools.
?  Operating temperature -20 to +60 degrees Celsius.

75 ohm RCA Connector, Straight Plug
Pack Qty: 100pcs
Product Listings
Model Cable Boot Crimp Die Crimp Pin Sleeve

*RCAP-C25F

L-2.5CFB / 1855A / 8218 / 1417B / 1418B

 -

TCD-35CA

 B11014E *BN7029C
RCAP-C25HD

L-2.5CHD

 -

TCD-35CA

 B11015E *BN7129

RCAP-C3A

L-3C2VS / L-3C2V / V*-3C

CB24

TCD-35CA

B11014E

BN7003A

*RCAP-C3GS

GS-6

CB25

TCD-35D

 *BN1093

*BN7079

RCAP-C3F

L-3CFB / LS-3CFB / V*-3CFB

CB24

TCD-35CA

B11015E

BN7003A

*RCAP-C42

1505F

 -

TCD-31C

 B11016E *BN7011

RCAP-C4A

LV-61S / 8241 / 8279 / RG-598/U

CB25

TCD-4CA
TCD-451CA

B11015E

BN7015A

RCAP-C4F

L-4CFB / LS-4CFB / V*-4CFB / 1505A / 8212
8241F / 9167 / 9259 / 9659

CB25

TCD-4C
TCD-451CA

B11016E

BN7015A

RCAP-C53

L-4.5CHD / 1694A / 9066 / 9116 / 9118 / 9248

CB26

TCD-35CA

B11020D

BN7046

RCAP-C5A

L-5C2VS / L-5C2V / V*-5C

CB26

TCD-35CA

B11016E

BN7016

RCAP-C5F

L-5CFB / LS-5CFB / V*-5CFB

CB26

TCD-5CF
TCD-55FA

B11020D

B75004A

RCAP-C77

LV-77S / 8281F

CB26

TCD-5CF
TCD-55FA

B11016E

B75004A
































NOMINAL SPECIFICATIONS
Model Parts Imp. Bandwidth
VSWR
(Return
Loss)
DC to
200MHz		 Body


Material
(Plating)		 Center
Contact

Material
(Plating)		 Outer
Contact

Material
(Plating)		 Dielectric

Material		 Crimp
Pin

Material
(Plating)
RCAP-C
Series

Body,
Crimp Pin,
Sleeve

 75
ohm

<1.1
(>26dB)

 Brass
(Nickel)		 Phosphor
Bronze
(Gold)		 Beryllium
Copper
(Gold)		 PPO
Noryl		 Brass
(Gold)



(contd.) NOMINAL SPECIFICATIONS
Model Crimp
Sleeve

Material
(Plating)		 Cable Retention
lbs.
(kgs)		 Insulation
Resistance
at 500V DC		 Voltage
Rating for
1 mim.		 Center
Contact
Resistance		 Outer
Contact
Resistance
RCAP-C
Series		 Copper
(Tin)

>55
(>24.9)

 >100M ohm 500V AC
(rms)		 <10m ohm -


RCAP-C Series Dimensions

Note: All of Canare crimp plugs, BCP-A,-B,-C, RCAP-C and FP-C, are the same procedure.

Product Documents

No documents available
