Speakers

Column Speaker 20W Ip66 CS420 Australian Monitor

Product Code: AJ-CS420

Brand
Australian Monitor
RRP $1,189.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Series Column Series
Size 3.5"
Speaker Type Outdoor
  • Details
  • Downloads

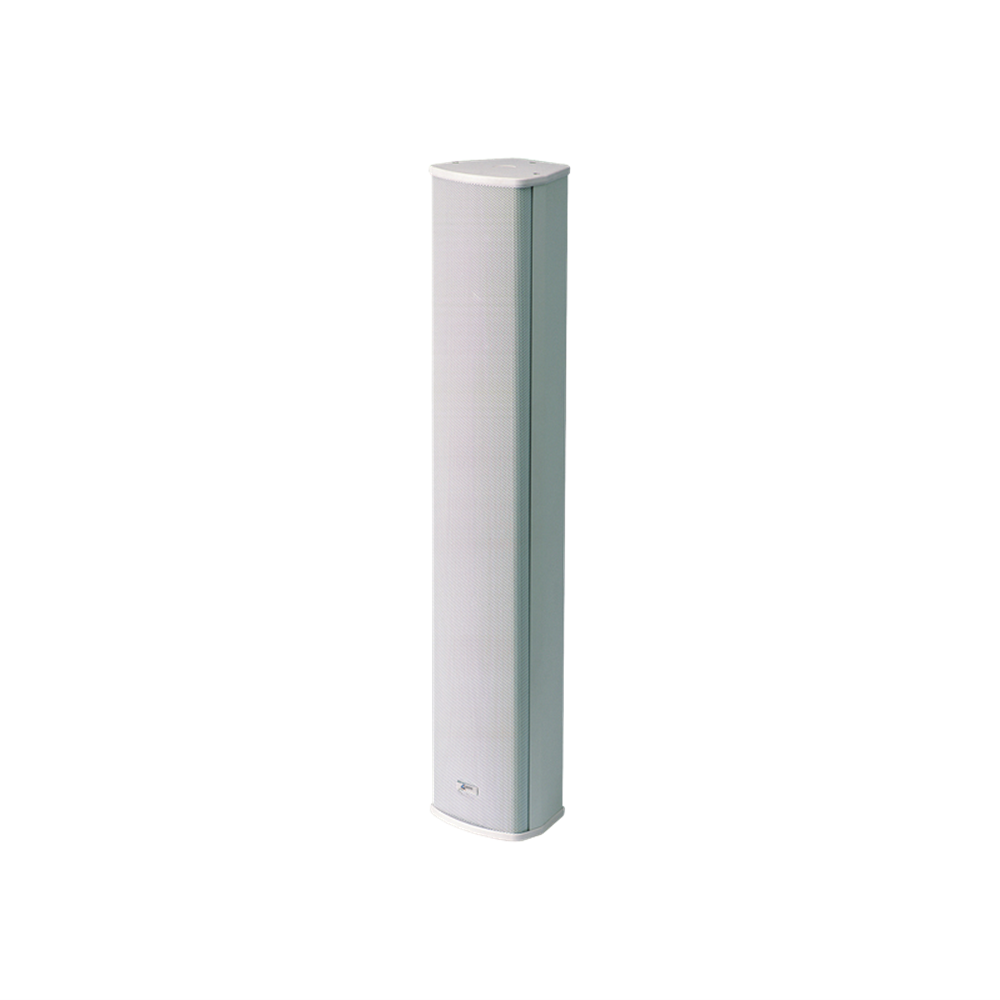

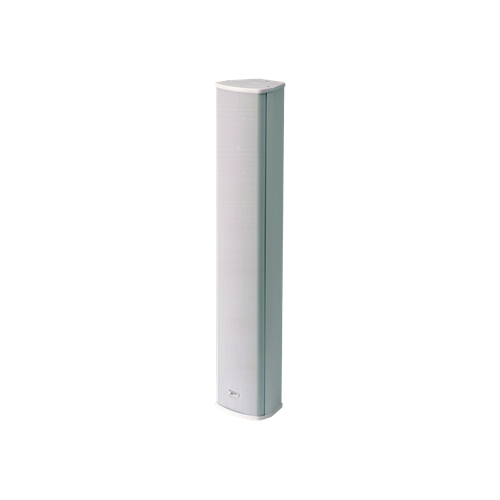

CS420


Column Loudspeaker
20W, IP66 Rated

The CS420 is a specialised IP66 Rated Weatherproof Column Speaker that combines 4 x 3.5” woofers with a 3.25” tweeter for excellent speech reproduction.

With a subtle design and supplied with a mounting bracket the CS420 is an excellent vocal re-enforcement speaker for indoors or outdoors.

  • Includes four 3.5” speakers and a 3.25” tweeter
  • Smooth response, excellent intelligibility
  • Dispersion.H:180˚ x V:45˚(@1Khz), H:100˚ x V:30˚(@4Khz)
  • Tappings 20, 10, 5, 2.5W @ 100V
  • IP66 Rated
  • Flexible swivel bracket included

Specifications

  • Form Factor: Column
  • Max Continuous Power: 20W
  • Tappings: 20W-10W-5W-2.5W
  • Max Program Power: 40W
  • IP Rating: IP66
  • Max Peak Power: 80W
  • EASE Model: Yes
  • SPL 1W/1m: 94dB
  • Powered: Passive
  • Max SPL RMS: 107dB
  • Driver Diameter: 3.5" x 4 & 3.25"
  • Max SPL Peak: 113dB
  • Colour: White (RAL 9003)
  • Frequency Response (-3dB): 120Hz - 20kHz
  • Warranty: 5 years
  • Dispersion: 190 x 45deg
  • Product Dimensions: (W x D x H) 585mm x 114mm x 96mm
  • Net Weight: 4.2 Kg
  • GTIN EAN: 9323383012110

Product Documents
