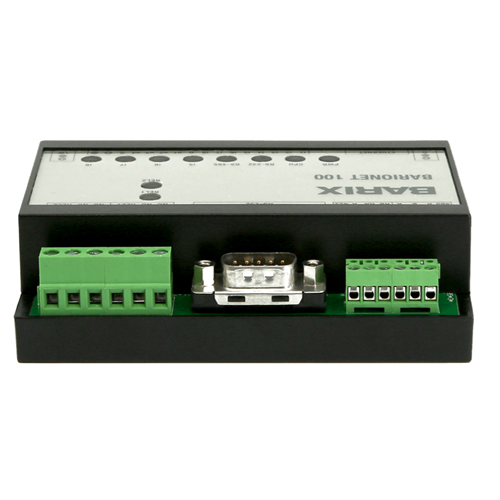

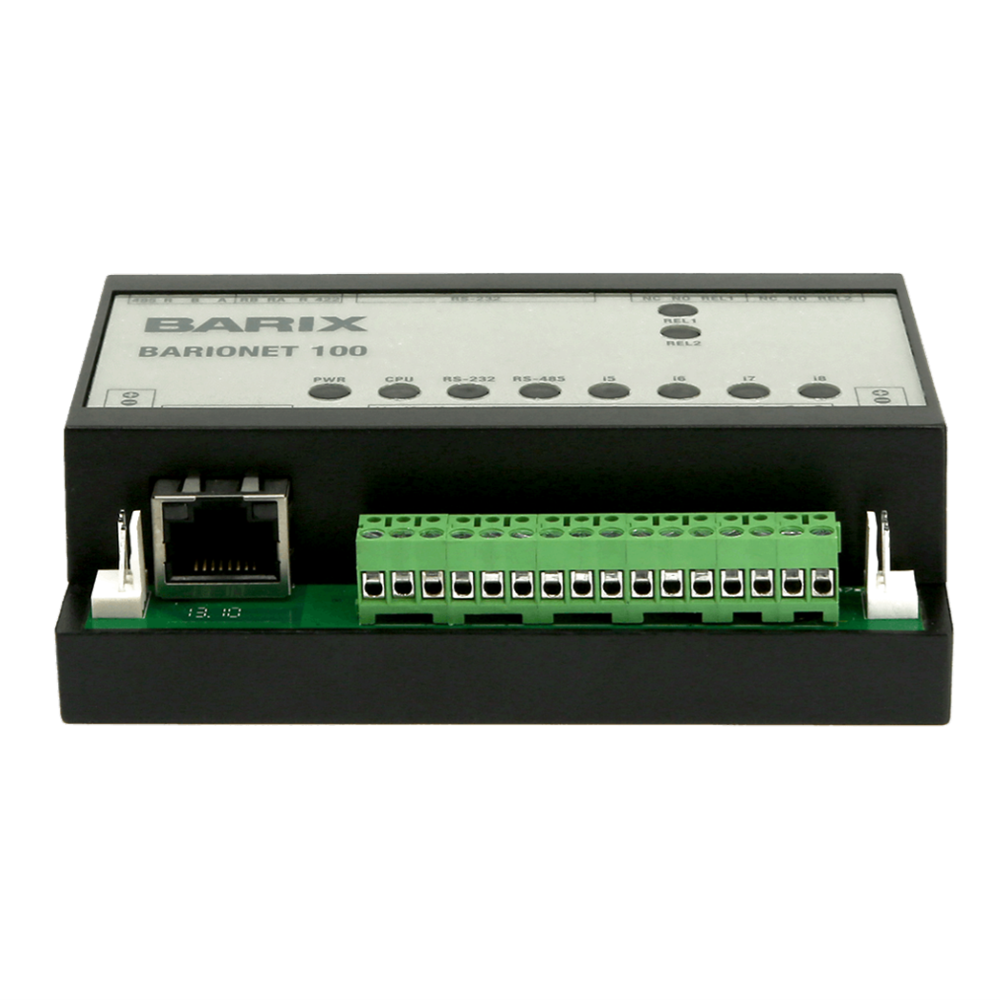

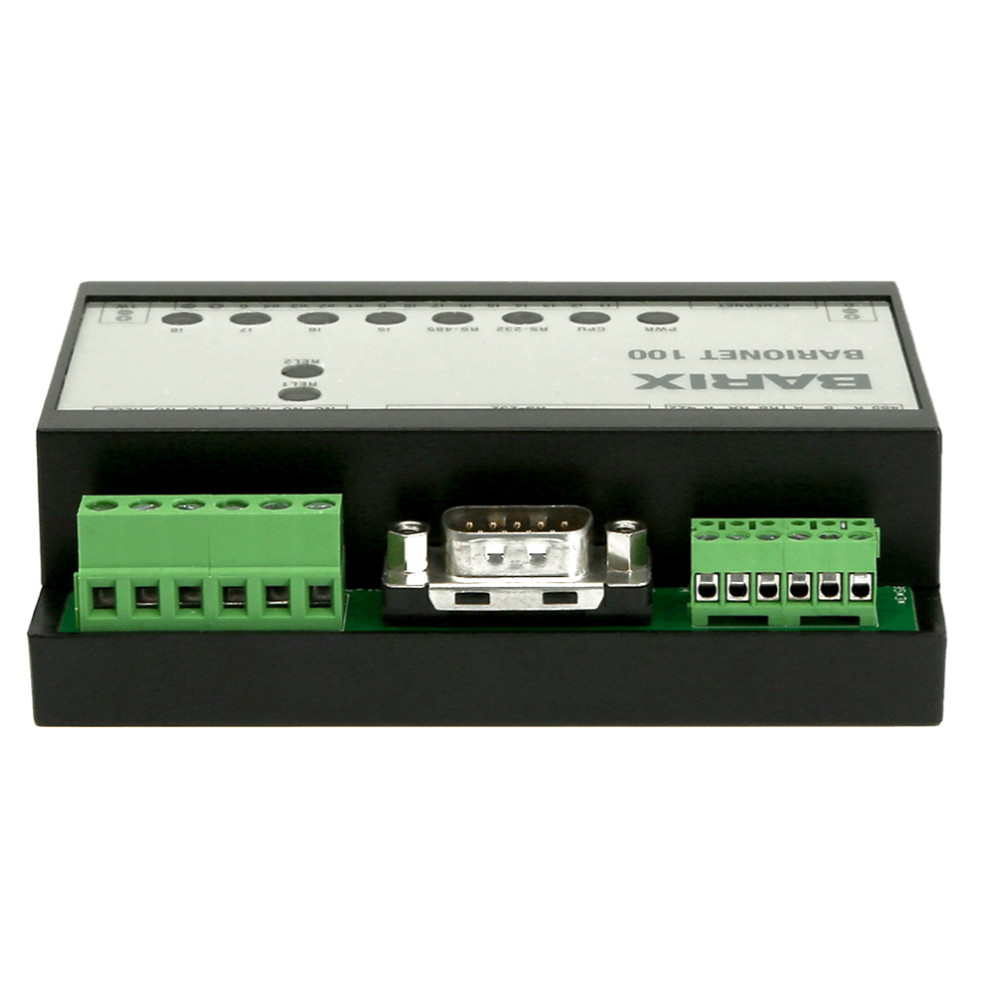

Barionet Barionet 100

Two serial ports, 2 relay and 4 digital outputs, 4 digital and 4 digital + analog inputs and Dallas 1-wire support, UL listed.

• I/O device server with web server, Modbus/TCP and SNMP support
• Web server
• Modbus/TCP and SNMP support
• Serial ports
• Digital and analog IO
• Dallas 1-wire
• UL listed
• Wiegand Interface Input

The Barionet 100 is a low cost, flexible and multiprotocol capable I/O device server which bridges the physical world of sensors and activators with IP Automation and IT management systems.

Speaking both SNMP and Modbus/TCP as well as universal ASCII protocols, the Barionet devices are easily integrated into monitoring and management systems.

The Barionet is a programable network controller, via BCL (Barix Control Language) programming the functionality of the device can be expanded/customized. The development kit is available for free, downloadable with the firmware.

Applications

• Environmental monitoring, logging and alarming
• Access Control/Door control
• Temperature monitoring, logging and HVAC control
• Contact closure monitoring
• PV power management
• Automation and remote control via network

Features

• Relay Output (2x250VAC, 5A max)
• Digital Inputs (4)
• Open Collector (digital) Outputs (4x24VDC)
• Analog (0..5VDC) Input (4
• RS-232 Serial Port (1)
• RS-422/485 Serial Port (1)
• Supply Voltage (9-30VDC)
• One Dallas 1-wire interface with support for up to 50 temperature sensors or one RTC chip
• Wiegand Interface Input (2)
• Control interfaces: HTTP/CGI, TCP, UDP, SNMP, Modbus/TCP
• IO capabilities extendable via Barionet extension units

Specifications

I/O Interfaces

• 2 relay outputs (250 VAC, max. 5 A)
• 4 digital inputs (0..12 V), configurable pullups
• 4 universal inputs (analog 0..5/10 V or digital 0..12 V) with configurable pullups
• 4 digital outputs (open collector, 24 V 0.1 A)
• 2 Wiegand interfaces
• 1 Dallas 1-Wire® capability

Serial Interfaces

• 1 RS-232 * (DSub-9 male, RX/TX only)
• 1 RS-422/485 * (2/4-wire)
• 300..19’200 Baud, 7/8 bit, Odd/Even/No par

Network Interface

• RJ45 10/100 Mbit Ethernet (Autodetect)
• TCP/IP, UDP, ICMP, DHCP, AutoIP, IPzatorTM, XML, SOAP, Modbus/TCP, SNMP, CGI, HTTP web server for control, status and configuration

Misc

• 8+2 LED status indicators

Power input

• 9..30 VDC or 12..24VAC
• 4 Watt max.

Case

• high quality plastic, 160 g, , DIN-rail mount.
• Dimensions: 105 mm x 85 mm x 31 mm (4.13“ x 3.34“ x 1.1”)

MTBF

• Min. 850 000h acc. to MIL217F at 25°C
• ambient temperature

User Interface

• browser based (integrated webserver),
• network control API
