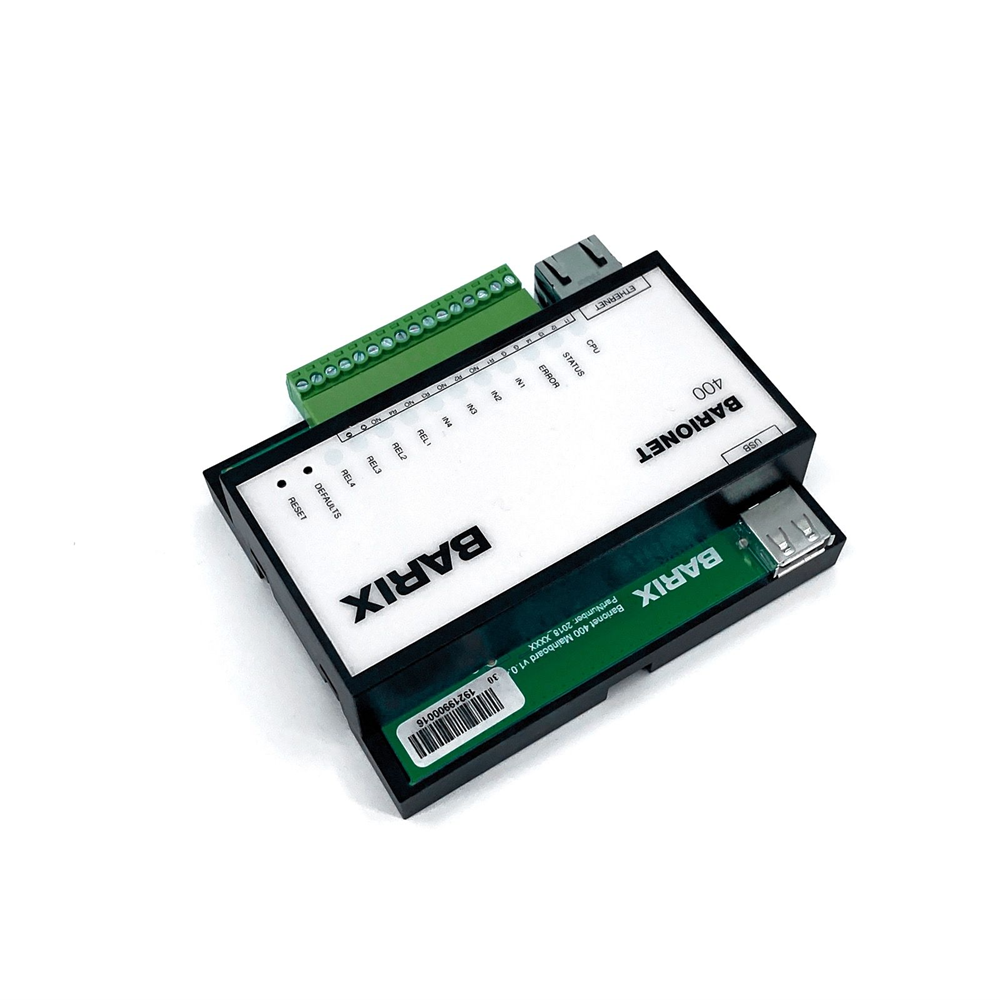

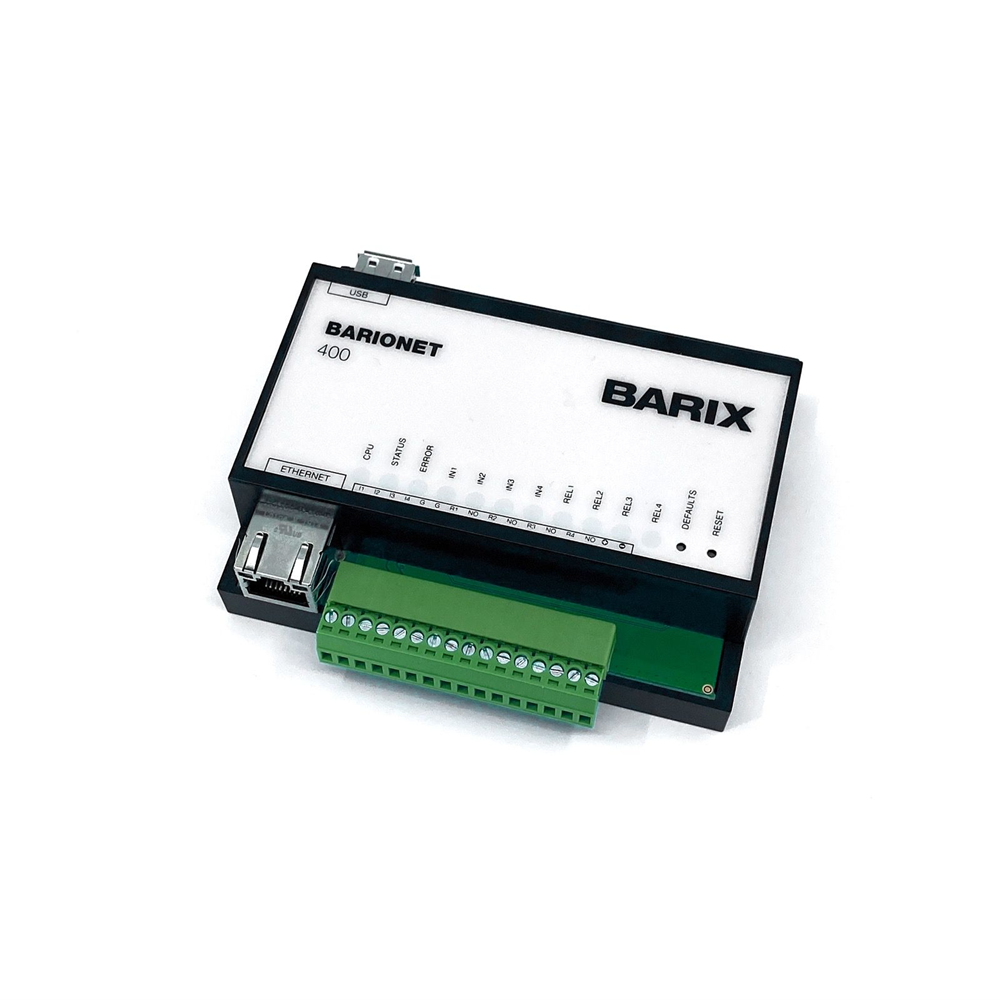

BARIONET 400

Universal, programmable I/O device server
Barionet 400 is a fully programmable I/O device server of Barix, based on Linux/Lede/OpenWRT. The device features a wide range of interfaces such as USB, digital Inputs, Relays. It is IPv4 or IPv6 capable. Supporting multiple communication protocols, the Barionet can be used in multiple applications such as automation building control, public transport and many more. Barix Products are developed in Switzerland and manufactured to the highest standards.

Features

• Embedded Linux / Lede / OpenWRT
• Programmable in C++, Lua or Python
• IPv4 / IPv6 stack
• One 10/100 Ethernet port
• 4 Relay Outputs
• 4 Digital Inputs
• USB Host Interface
• Barionet DIN-Rail Case
• Supply Voltage 9-30 VDC
• IEEE 802.3af PoE
• Optional Real Time Clock
• SNMP Support
• Easy integration into Syn-Apps Revolution & Singlewire InformaCast

Specifications

• OPERATION SYSTEM
  • Linux / Lede / OpenWRT
• NETWORK / WIFI INTERFACES
  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation
  • WiFi 802.11 b/g/n, 2.4 GHz
  • TCP/IP, UDP, ICMP, DHCP, CGI, HTTP, SNMP
• I/O INTERFACE
  • 4 x Relay Outputs (30VDC, 0.5A)
  • 4 x Digital Inputs (dry contacts)
• USB INTERFACE
  • 1 x USB Host (Type A) Interface
• OEM OPTIONS
  • RTC Real Time Clock
• CPUS / MEMORY
  • MediaTek MT7620N
  • 64MB SDRAM
  • 16MB Flash
• USER INTERFACE
  • Web interface for control / configuration
  • 10 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button
• POWER REQUIREMENTS
  • Single 9-30V DC supply voltage, 2.5 Watt (without attached USB devices) or
  • IEEE 802.3af PoE
• MTBF
  • > 950’000h
• MEASUREMENT
  • 4.05” x 3.35” x 1.22” / 103mm x 85mm x 31mm
• WEIGHT
  • 160g
