AI Auto Tracking PTZ Camera PTC310U Aver

Product Code: AF-PTC310U

Brand
Aver
RRP $5,679.00


Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads

PTC310U

AI Auto Tracking PTZ Camera

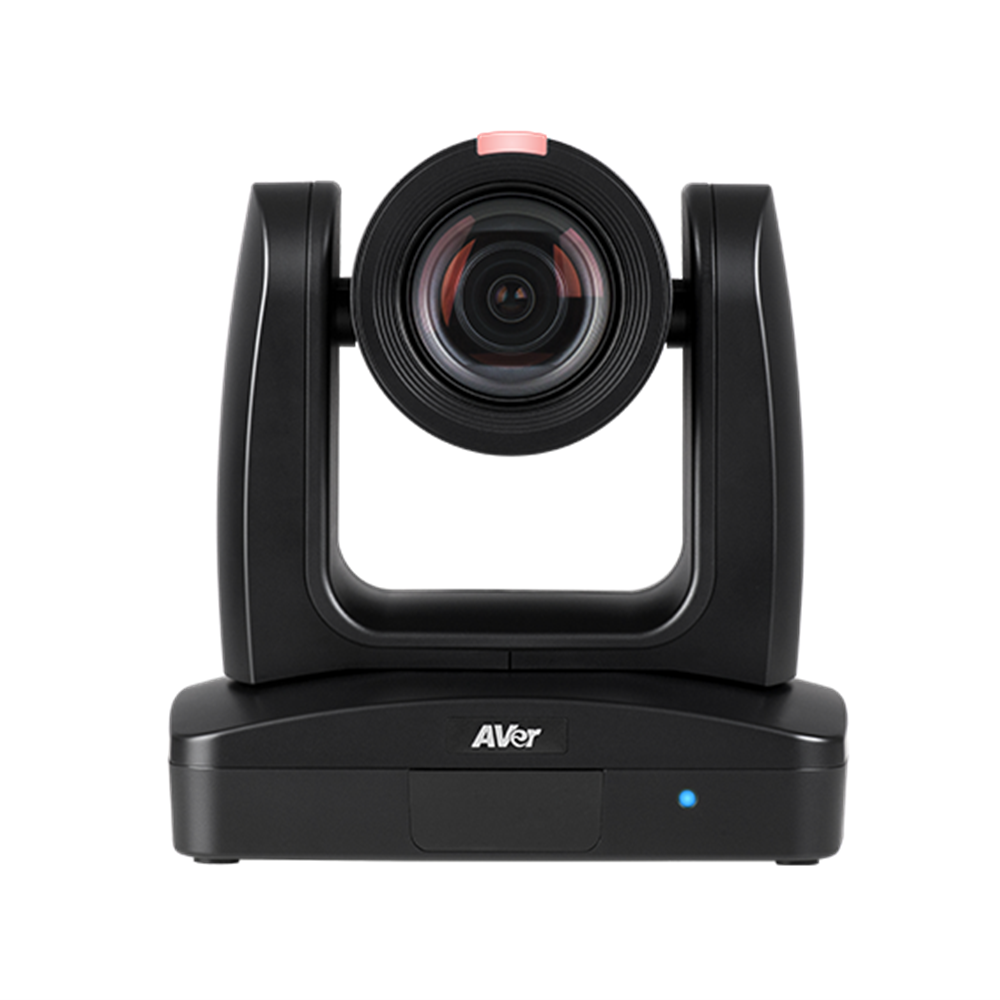

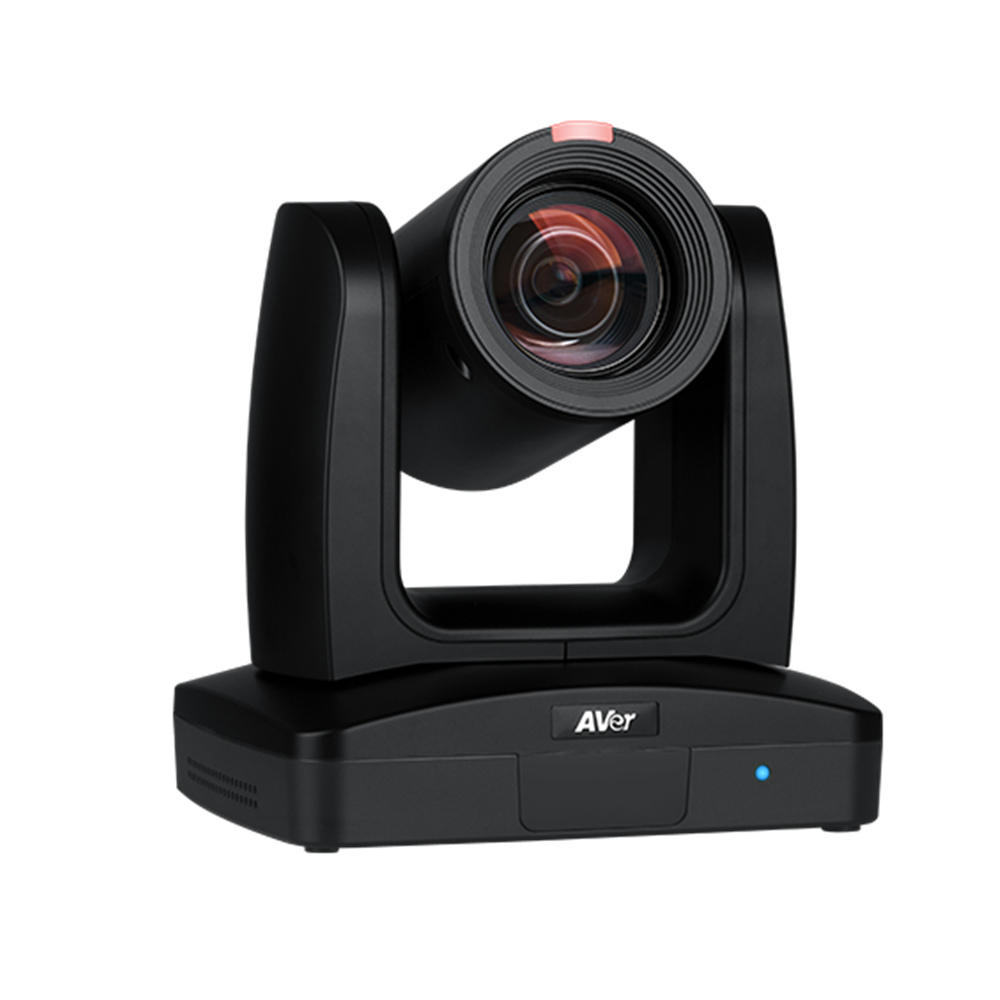

The PTC310U AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310U features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!


  • 4K Ultra HD Resolution
  • 12X Optical Zoom
  • IP/HDMI/USB/3G-SDI
  • Human Detection AI
  • Presenter Mode
  • Zone Mode
  • Intuitive Web UI
  • Exclusive Ceiling Mount

4K Output Resolution
Equipped with 4K resolution, the PTC310U provides ultra-precise auto tracking. The PTC310U also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.


12X Optical Zoom & 2X Sensor Zoom
The zoom power of PTC310U camera reaches an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310U.


Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC310U to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.


Click & Track

Redirect focus in an instant with the PTC310U. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.


Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.


Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Specifications

Camera
  • Image Sensor: 1/2.8" 4K Exmor CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50dB
  • Gain: Auto, Manual
  • TV Line: 1400 (Center)
  • Shutter Speed: 1/1 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual
  • Optical Zoom: 12X
  • Digital Zoom: 12X
  • Sensor Zoom: 2X
  • Viewing Angles:
    • DFOV : 78° (Wide) to 7° (Tele)
    • HFOV : 70° (Wide) to 6° (Tele)
    • VFOV : 42° (Wide) to 3° (Tele)
  • Focal length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
  • Pan/Tilt Angles: Pan : ±170°, Tilt : +90° / -30°
  • Pan/Tilt Speed (Manual): Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
  • Preset Speed: Pan : 200° /sec, Tilt : 200° /sec
  • Preset Positions: 10 (IR), 256 (RS-232)
  • Camera Control - Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
  • Camera Control - Protocols: VISCA / PELCO-D (RS-232 / RS-422 / IP), CGI (IP)
  • Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
  • Power Frequencies: 50Hz, 60Hz
AI Auto Tracking Functions
  • Tracking Modes: Presenter Mode, Zone Mode
Audio
  • Channel: 2ch (Stereo)
  • Codecs: AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
  • Sample Rates: 48 / 44.1 / 32 / 24 / 16 / 8 KHz

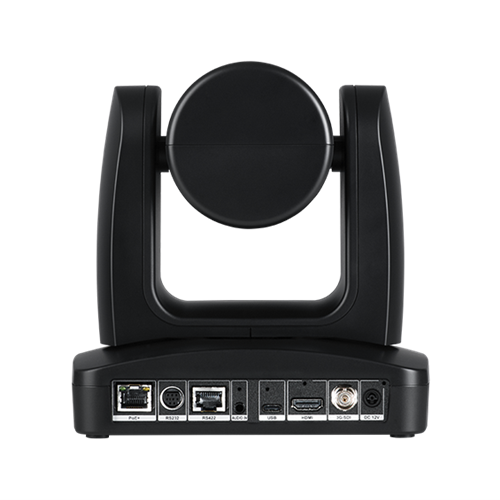

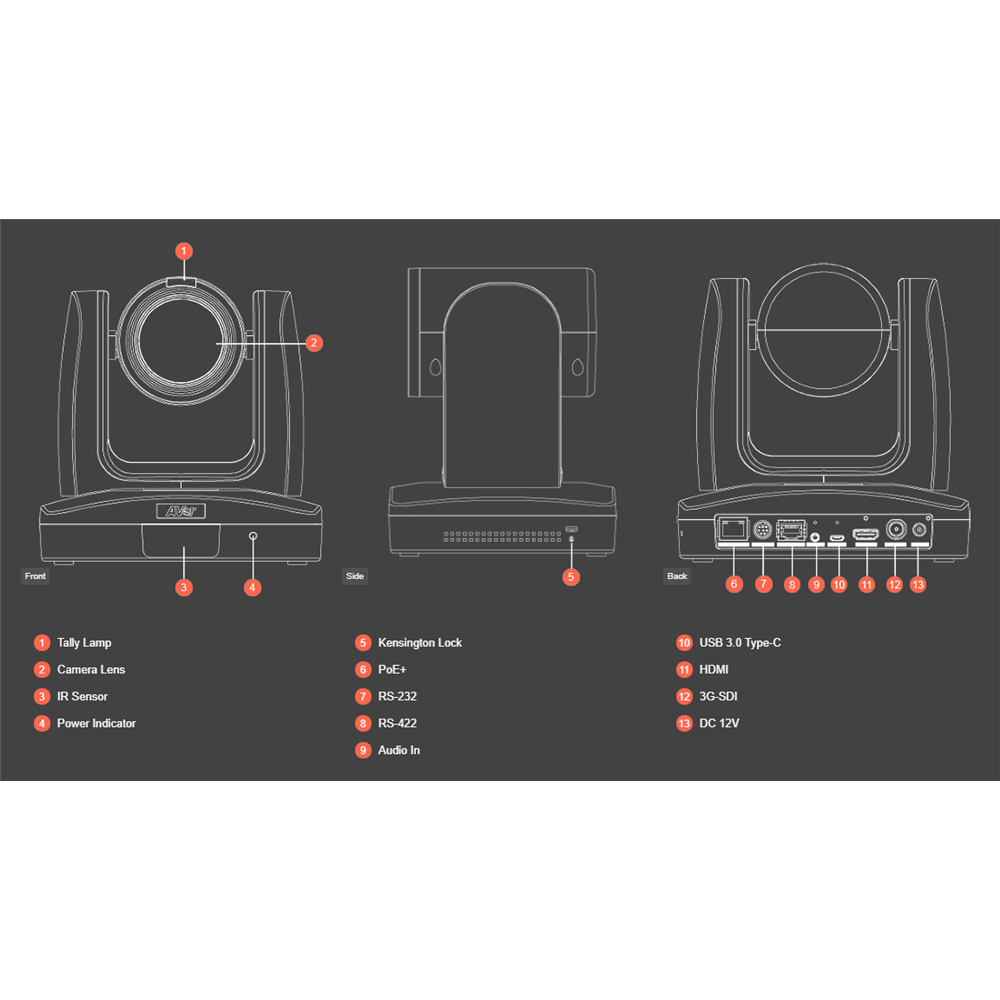

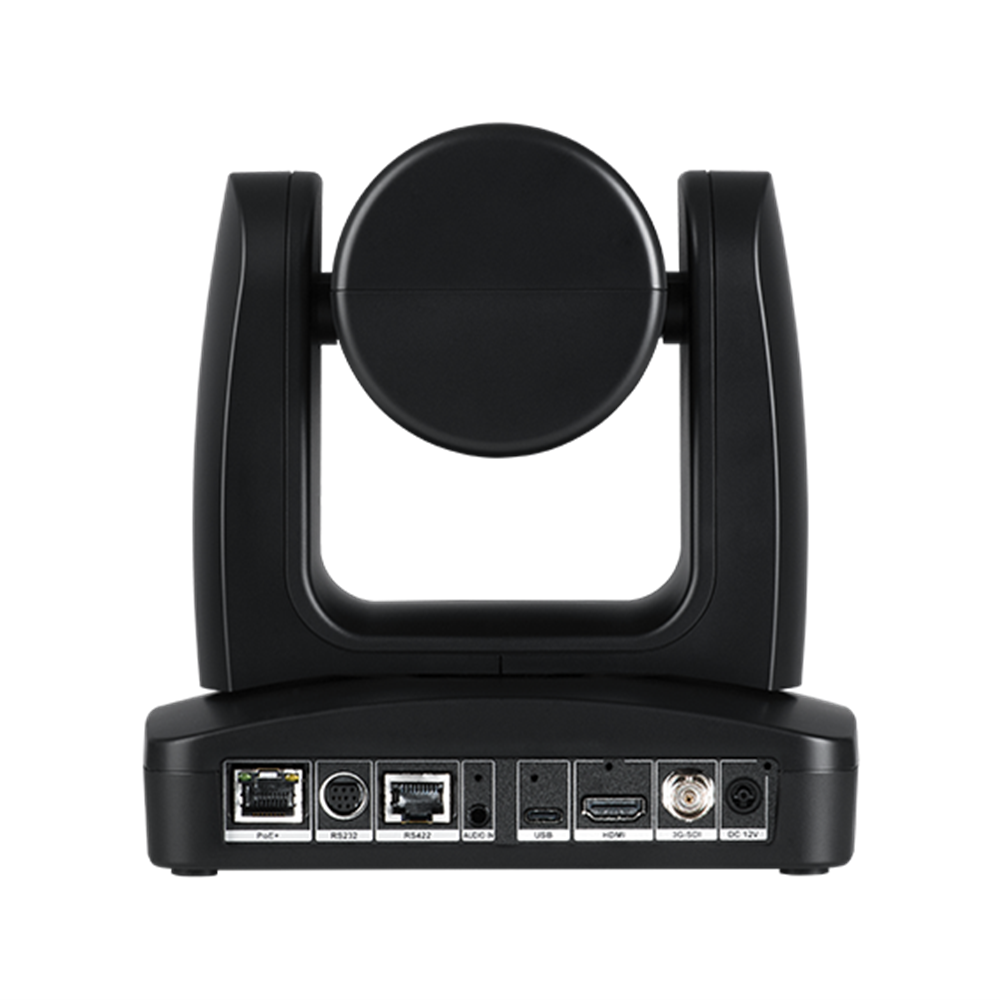

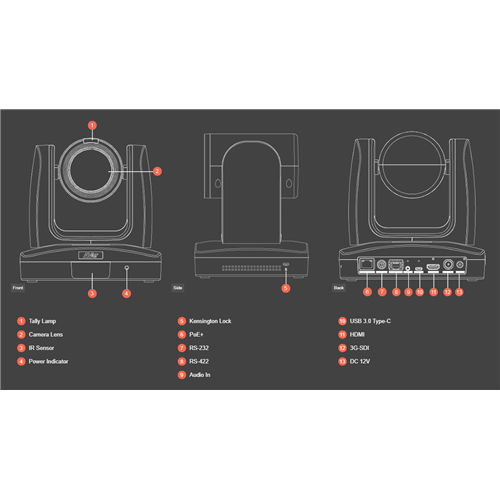

Interface
  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Inputs: MIC / Line in
General
  • Power Requirement: AC100V-AC240V to DC12V/5A
  • Power Consumption: 18W
  • PoE: PoE+
  • Dimensions (W x H x D): 180.0 x 183.5 x 145.0 mm
  • Net Weight: 1.7 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security: Kensington slot
  • Remote Control: Infrared
  • Operating Conditions: Temperature: 0°C to +40°C ; Humidity: 20% to 80%
  • Storage Conditions: Temperature: -20°C to +60°C ; Humidity: 20% to 95%
IP Streaming
  • Resolution: 4K 30fps
  • Network Video Compress Format: H.264, H.265, MJPEG
  • Maximum Frame Rate: 4K 30fps or 1080p 60fps
  • Bit-rate Control Modes: VBR, CBR (selectable)
  • Range of Bit-Rate Setting: 512 Kbps to 32 Mbps
  • Network Interface: 10/100/1000 Base-T
  • Multi-Stream Capability: 2 (RTSP / Web Page), 1080p 60fps (max.)
  • Network Protocols: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  • NDI ®|HX Capability: Yes (optional)
USB
  • Connector: USB 3.0
  • Video Format: MJPEG
  • Maximum Video Resolution: 2160p
  • USB Video Class: UVC1.1
  • USB Audio Class: UAC1.0
Web UI
  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera/Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
  • IP Search & Configuration Tool: Support Windows® 7 or later
Warranty
  • Camera: 3 Years
  • Accessories: 1 Year
  • Package Contents: Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
  • Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable
