8K60Hz 1 X 4 HDMI splitter Dolby Vision & HDR , audio de-embed, down scaler

Product Code: WY-EXPSP01028K

Brand
Wyrestorm
RRP $649.00


Unit of Measure
EACH



Unspecified
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Splitters
  • Details
  • Downloads

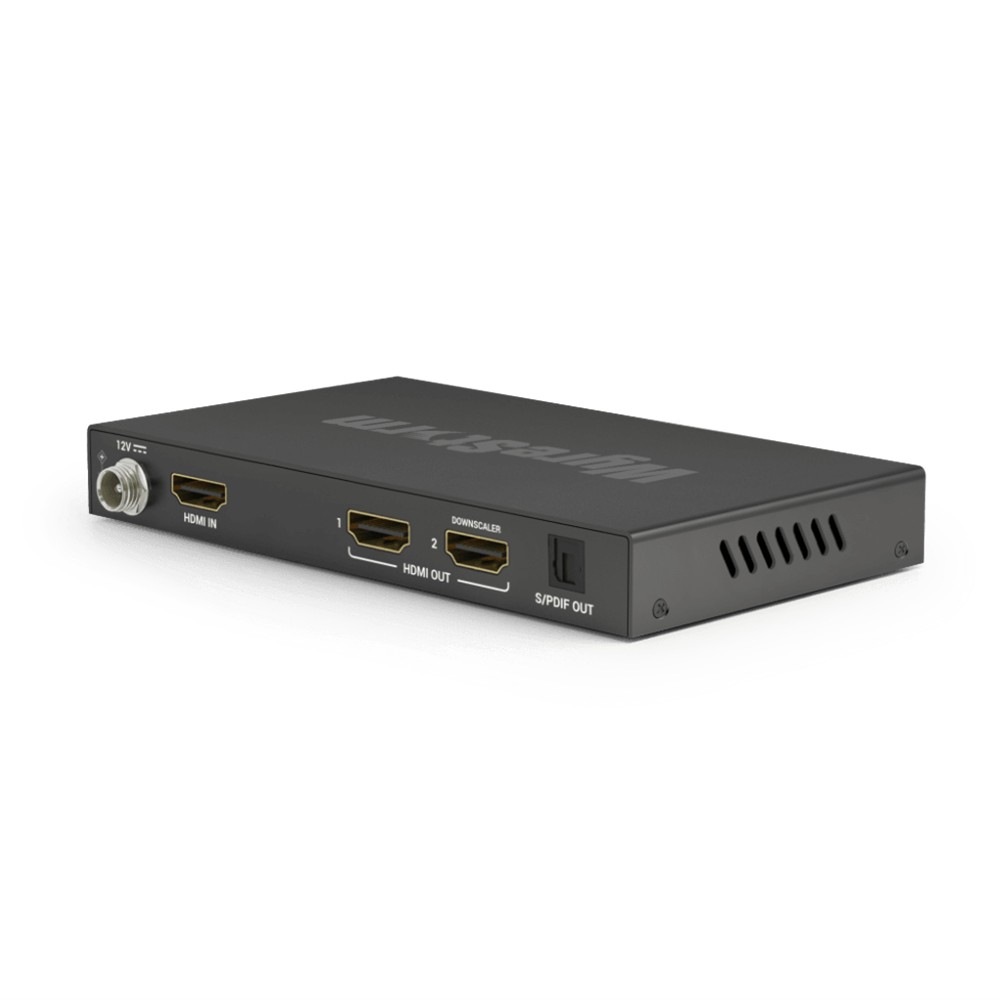

WyreStorm Essentials 8K60 1:2 HDMI Splitter

Our EXP-SP-0102-8K packs a punch as it is a powerful plug-and-play 8K HDMI splitter that has the ability to send uncompressed up to 8K@60Hz or 4K@120Hz up to two displays, but the most useful feature of this splitter is that the second output can scale content down from either 8K>4K or 4K>1080p! Furthermore, its compatible with DSC (Display Stream Compression) version 1.2a pass-through, an approved method of compression in accordance to the HDMI 2.1 specification, allowing up to a lossless 10K@120Hz signal to be transmitted.

Don’t forget to pair this splitter with our passive or active HDMI 2.1 cables!

Features

  • HDCP 2.3 compliant
  • S/PDIF audio output from HDMI de-embed
  • Supports up to 40Gbps FRL and 18Gbps TMDS
  • FRL to TMDS and TMDS to FRL mode conversion
  • Supports HDMI2.1 features such as QFT (Quick Frame Transport), QMS (Quick Media Switching), ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
  • Small compact size for discrete installations
  • No single use plastic included* #SUPFree


TAILORED FOR RESIDENTIAL
The WyreStorm Essentials 8K splitter is the perfect addition to the modern home AV install that includes a powerful 8K display. Split captivating brand new 8K source content to another display in any home entertainment, or media room application. Downscaling allows the content to be split to a second display even if the display resolution isn’t as high as the source content.


SCALING SOLUTIONS

As early adopters of 4K and 8K signal distribution, we know that retrofitting is important in the dawn of new resolution standards. With our splitter, you can rest assured that you won’t be forced to upgrade all displays or AVRs to 8K to reap its benefits. Just set the splitter to downscale to 4K and enjoy 8K content while supporting 4K at the same time!


EDID MANAGEMENT

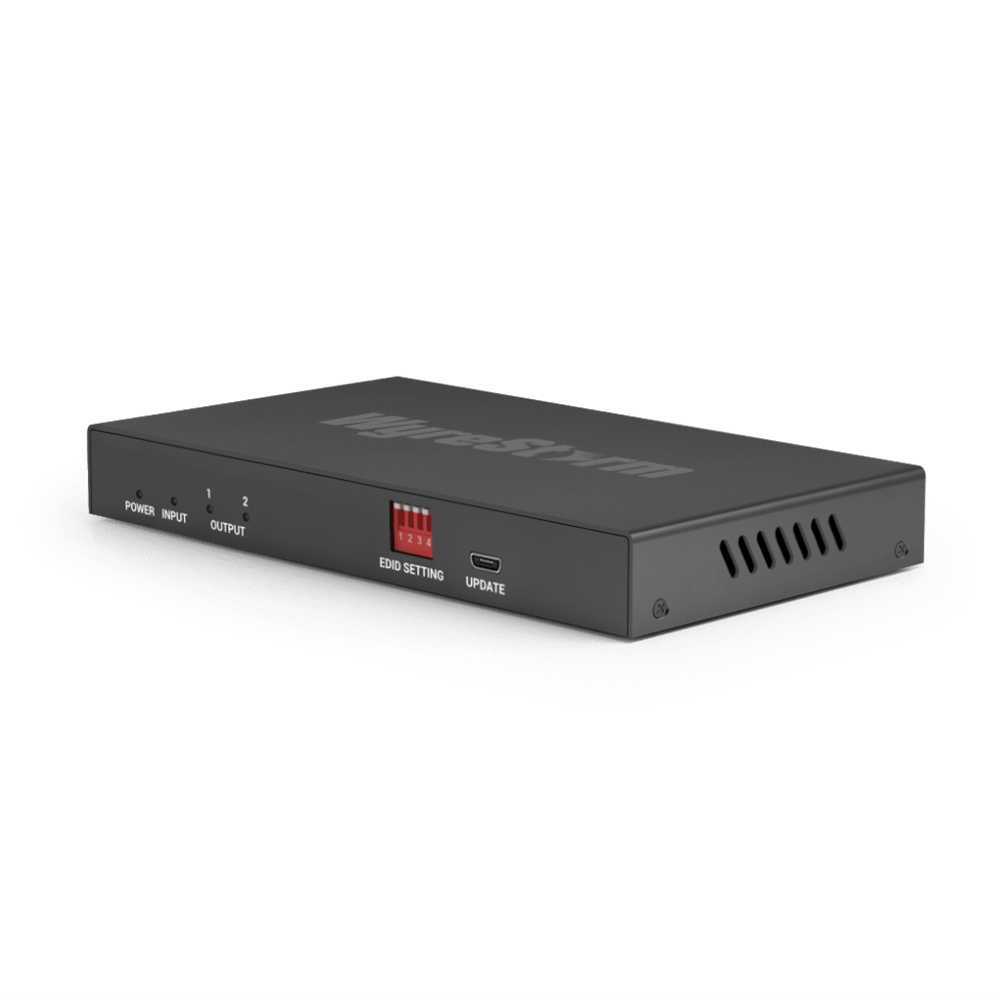

Display compatibility is the last thing you need to worry about. Our splitter gives you 5 EDIDs that can be adjusted via dipswitches. The splitter also supports Smart EDID, which will auto-negotiate EDIDs based on the detected displays and adjust accordingly.


8K AND BEYOND

Our Essentials 8K splitter not only meets 8K demands but they’re empowered with DSC passthrough, an approved method found in the HDMI 2.1 specification to transmit super-high bandwidth content (up to 10K@120Hz!) producing mathematically lossless content.


COMPLETE YOUR SETUP

WyreStorm offers HDMI 2.1 cables in a number of different lengths and flavors. Use our passive 2.1 cables for short distances up to 3m (9ft). If you need to go a long distance take advantage of our Active Optical 2.1 cables that can reach 15m (50ft).

Technical Specifications

  • TRANSMISSION
    • Transmission Encoding: Uncompressed (with DSC 1.2a Pass-through between Source-Display when required)
    • End to End Latency: Zero
    • Maximum Transmission Bit Rate: 40Gbps (4-core, 10Gbps per lane)
  • VIDEO
    • HDMI: TMDS (600MHz Maximum) | FRL (16b/18b encoding) | DSC 1.2a Supported
    • Input: 1x HDMI: 19-pin type A Male
    • Output: 2x HDMI: 19-pin type A Male
    • Maximum Data Rate: 40 Gbps (FRL) | 18 Gbps (TMDS)
    • Video Resolution (Max):
      • 1920 x 1080p @240Hz
      • 4096 x 2160p @120Hz 4:4:4 10bit
      • 5120 x 2880p @60Hz 4:4:4 10bit
      • 7680 x 4320p @60Hz 4:2:0 10bit
      • 10240x4320p @120Hz w/DSC
    • Supported Standards: DCI | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100
  • AUDIO
    • Audio Return Channel (ARC): Supported
    • Audio Formats: 2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos
    • Maximum Sampling Rate: 192KHz
    • Maximum Audio Channels: 32
  • COMMUNICATION & CONTROL
    • HDMI: HDMI 2.1 | HDCP 2.3 | EDID | CEC (Pass-through) | VRR (Variable Refresh Rate) | ALLM (Auto Low Latency Mode) | FVA (Fast Vactive)
  • POWER
    • Power Consumption: 12V DC 1A
    • Max Power Consumption: 3.5W
  • ENVIRONMENTAL
    • Maximum BTU: 12BTU/hr
    • ESD Protection:
      • Human-body Model:
      • ±8kV (Air-gap discharge) / ±4kV (Contact discharge)
  • In the Box:
    • 1x EXP-SP-0102-8K
    • 1x DC 12V PSU (UK/US/EU/AU)
    • 2x Mounting Brackets (with screws)
