8 Zone Paging & Bgm System DIGIPAGE Australian Monitor

Product Code: AJ-DIGIPAGE

Brand
Australian Monitor
RRP $4,539.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Australian Monitor
Zones 8 Zones
  • Details
  • Downloads

Product Number: DIGIPAGE

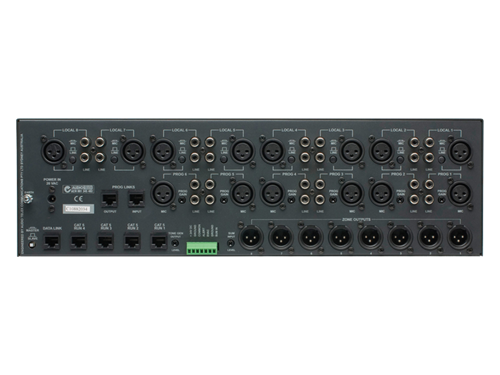

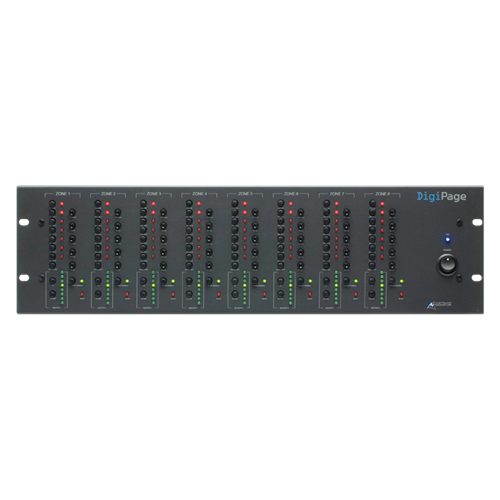

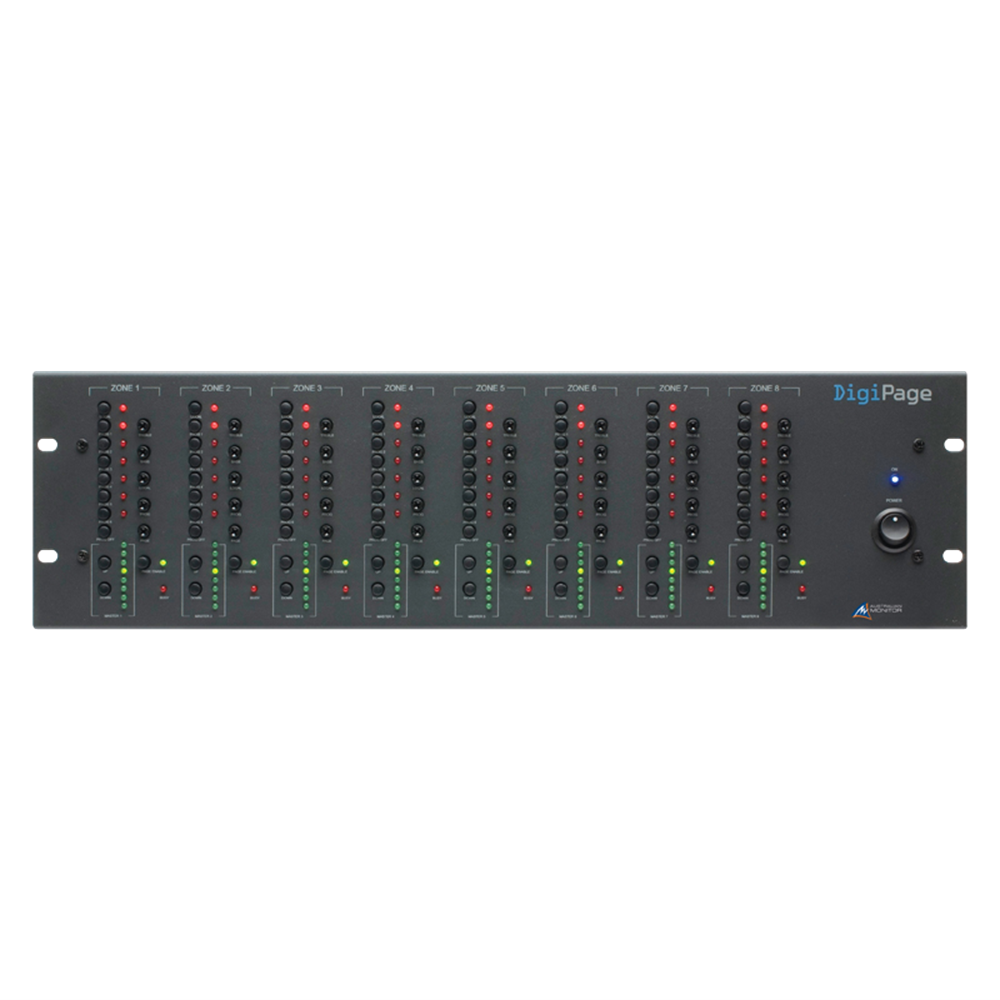

The DigiPage is a 3 rack unit multi zone paging and source selection system that offers unprecedented flexibility for multi zone paging and source routing applications. 6 program inputs and one dedicated local microphone/line input are available to each of the 8 zone outputs. With LED indication for program/local input selection, zone output level, paging enable/disable and network busy, the DigiPage provides extensive status indication to the user.



The DigiPage is also expandable to 16 zones via a simple link cable to a second unit. Paging stations are available in 8 or 16 zone models allowing paging into any individual zone, any combination of zones or All Call. Remote control panels are also available, allowing source selection and volume control from within each remote zone. Both paging stations and remote control panels connect via an inexpensive and industry standard CAT5 cable network. An overall priority input is also provided for emergency or evacuation signals.



The DigiPage is an incredibly versatile and well-featured product that provides a simple solution to the complex applications of multi zone paging and source routing.



Features



  • 6 balanced microphone/dual RCA line program inputs
  • 8 dedicated local inputs (one per output zone)
  • 8 Zone outs (expandable to 16 zone outs)
  • Capacity for multiple remote paging microphones
  • Remote wall panels for source select and Volume control
  • Emergency input
  • 4 CAT5 ports which are used to connect to remote zone paging microphones DPRM remote panels
  • Easy front panel input selection
  • AC/DC operation


Specifications

  • Zones: 8 Mono
  • Paging Stations Connected: 16 (minimum)
  • Program Inputs: 6 MIC or Line
  • Paging Station P/N: DP8M or DP16M
  • Local Inputs: 1 MIC or Line per zone
  • Remote Source Control: DPRMB or DPRMW
  • Tones: Yes
  • Mounting: 3RU
  • Input Voltage: 100-240Vac 50-60Hz
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 180.5mm x 133mm Shipping Dimensions
    • (W x D x H) 537mm x 255mm x 258mm
  • Net Weight: 7.0 Kg
  • Shipping Weight: 7.6 Kg
  • GTIN EAN: 9323383010895
