  • 6.5" 2-way Silver outdoor speaker w/bracket IP56 - Gray One Systems

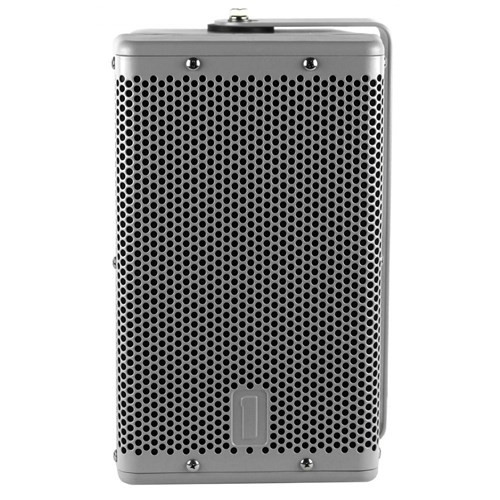

6.5" 2-way Silver outdoor speaker w/bracket IP56 - Gray One Systems

Product Code: OS-106.STH

Brand
One System
RRP $1,150.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands One Systems
Series Silver Series
Size 6.5"
Speaker Type Outdoor
  • Details
  • Downloads

106.STH Silver Series Loudspeakers

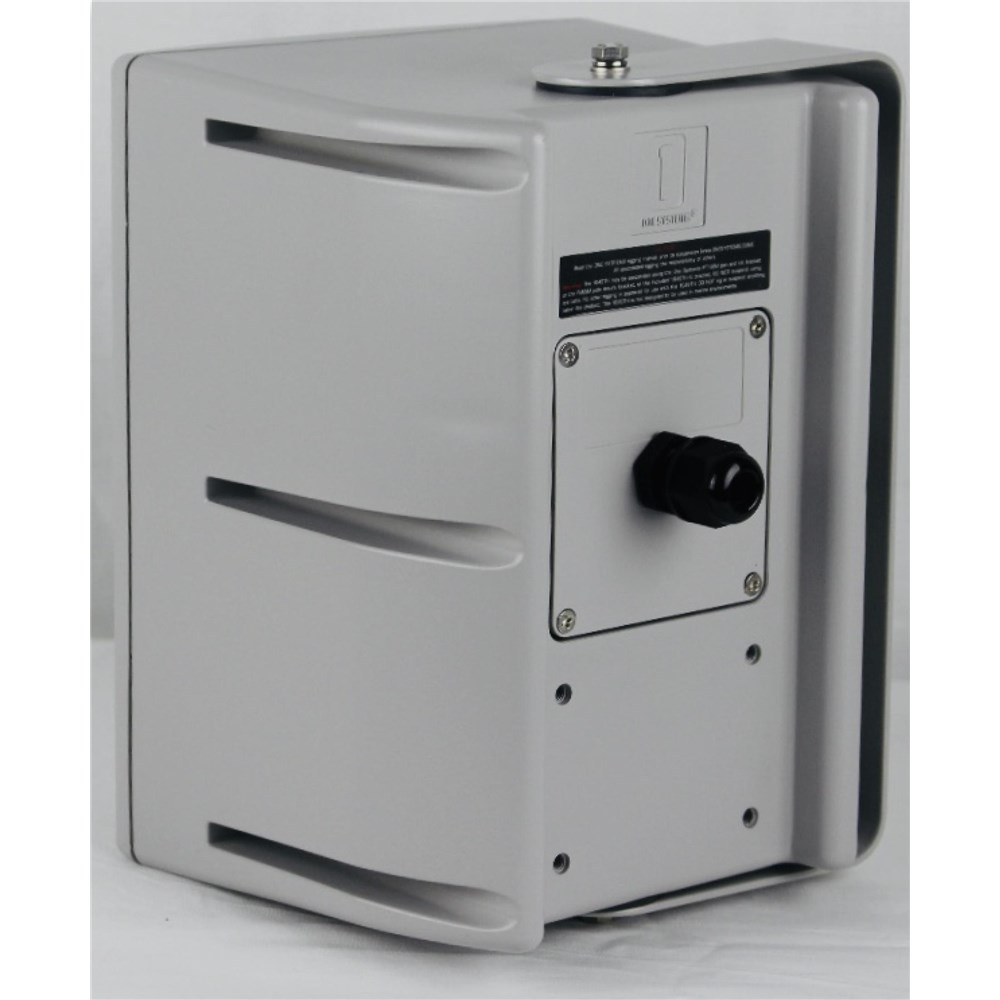

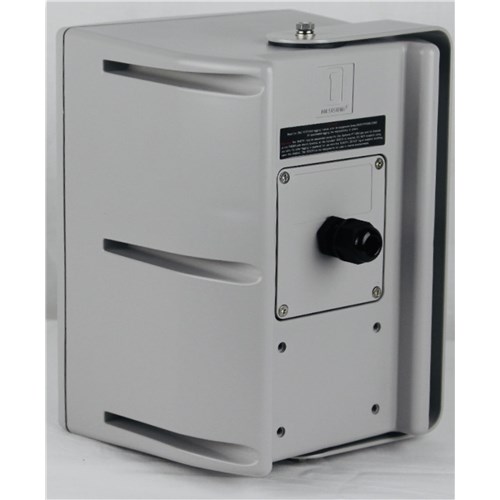

The One Systems 106.STH™ is a premium-grade 6.5" two-way loudspeaker suitable for indoor and outdoor professional audio applications where high intelligibility and accuracy are required. The system’s direct-radiating transducers include a 6.5" woofer with a large-sized voice coil that provides high reliability and excellent linearity. Its HF section utilizes a small-format compression driver with a Low-Q 110o x 70o waveguide. The 106.STH is installer-configurable for Lo-Z (8 ohm) or Hi-Z (70.7 / 100 volt) operation using separate input barrier strips. The 106.STH’s rugged thick-walled enclosure, specially-built components and its stainless steel rigging hardware ensures long life in direct weather applications. The 106.STH U-Bracket is comprised of structural steel with a zinc powder coating. Wall and pole mount pan/tilt brackets are available for added installation flexibility.

U-Bracket is included as standard


Features

  • Stainless steel rigging points
  • Dual layer zinc rich powder coat utilized on grille and included U-Bracket
  • Combined 70.7V/100V/Direct operation
  • No performance degrading passive protection devices
  • 80 Watts continuous power handling in direct (8 ohm) operation
  • Highly suitable for inland direct weather environments
  • Optional PM2/M pole mount system and PT10/M pan/tilt bracket available
  • IEC 529 IP 56 ingress protection

Specifications

  • Frequency Response: 90Hz-20kHz
  • Coverage Pattern: 110 (H) x 70 (V)
  • Crossover Frequency: 1.5kHz
  • System Sensitivity 1w/1m: 87dB
  • Power Handling: 80w
  • Input Impedance (Lo Z): 8
  • Input Taps (Hi Z): 50/25/12.5w
  • Weight: 5.2kg, 11.4 lbs
  • Size (mm): 312 x 185 x 217.1 (Not including U-Bracket)
  • Size (Inches): 12.3 x 7.3 x 8.5 (Not including U-Bracket)

Product Documents
