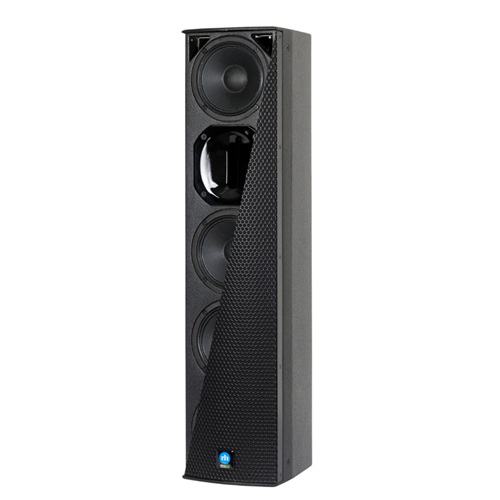

P3-64

High Directivity, High Output, Vertical Design

The P3-64 was developed specifically for applications needing wide horizontal directivity and tightly controlled vertical directivity.
It features a 1.4” voice coil high frequency compression driver with a 1” throat coupled to a Complex Conic horn. The patented Complex Conic horn eliminates high frequency beaming and provides wide angle coverage out to 20 kHz and beyond. The four high-efficiency 6” woofers produce a strong low end. Together, the 1” HF driver and quad 6” woofers deliver a surprisingly high 130 dB peak output level from 80 Hz to 20 kHz.
Designed In Flexibility

Twelve M6 Universal Mounting Points and a 2.75 in. x 4.25 in. four-point speaker mounting plate make installation easy and clean. The mounting plate is compatible with the W-WALL-IC7II mount as well as the Adaptive Technologies MM060 Multi-Mount.

A recessed handle at the top of the back panel makes carrying the P3-64 easy, and a standard pole socket makes them the ideal speaker for sound-on-a-stick applications in low-ceilinged rooms where you need the tight, vertical directivity to cover evenly to the back of the room.

Technical Data

• Frequency Response: 80 Hz. to 20 kHz. (+ or - 3 dB)
• Sensitivity: 1.0 volt for rated output, analog
• Maximum Peak SPL: 130 dB-SPL@1 watt/1 meter
• Dispersion: 150 h x 60 v
• Crossover Frequency: 1.8 kHz, active electronic
• Enclosure: 3/4 in./19 mm Lite Ply plywood
• Grille: 16 GA powder coated, plated steel
• Finish: Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
• Mounting: 12 x M6 UMH points; 1 x M10 nutplate; 2.75 x 4.25 in. speaker mount plate & 35 mm tripod socket
• Weight: 42 lbs/19 kg
• Dimensions: 200 mm w x 883 mm h x 238 mm d

SA1250 Amplifier Specifications

• Audio Connections: 2 x XLR-3, In & Loop-out, Analog and AES
• Max Input Level: +22 dBu, Analog, 0 dBFS digital
• Network Connections: 2 x RJ45, Looping Ethernet/RHAON
• User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
• Software: RHAON II
• Power Output: LF= 1000 watts, @ 8 oms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
• Power Connector: Neutrik powerCON TRUE-1
• Temperature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
• Latency: 6.25 ms
