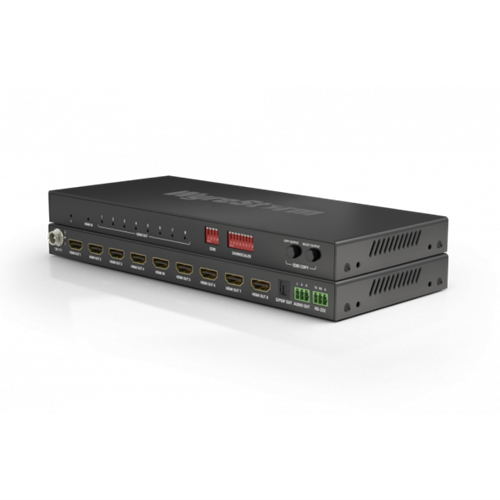

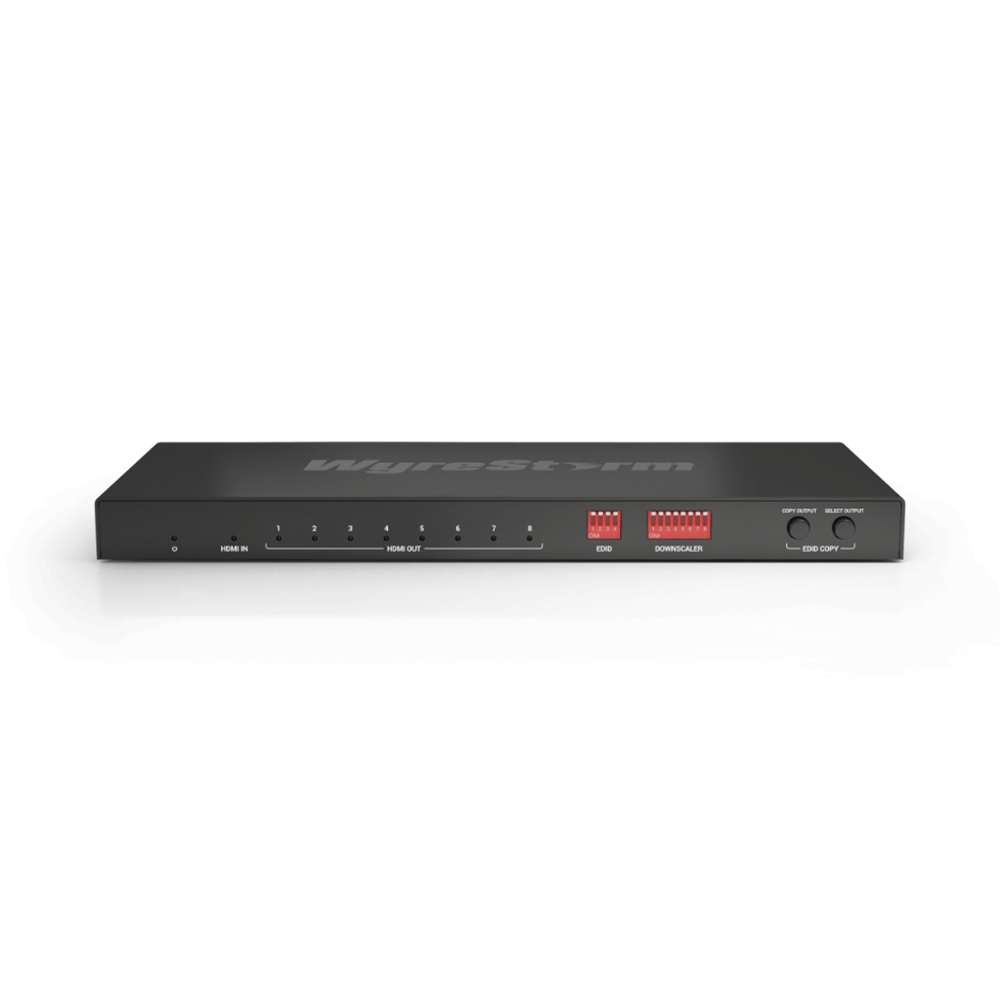

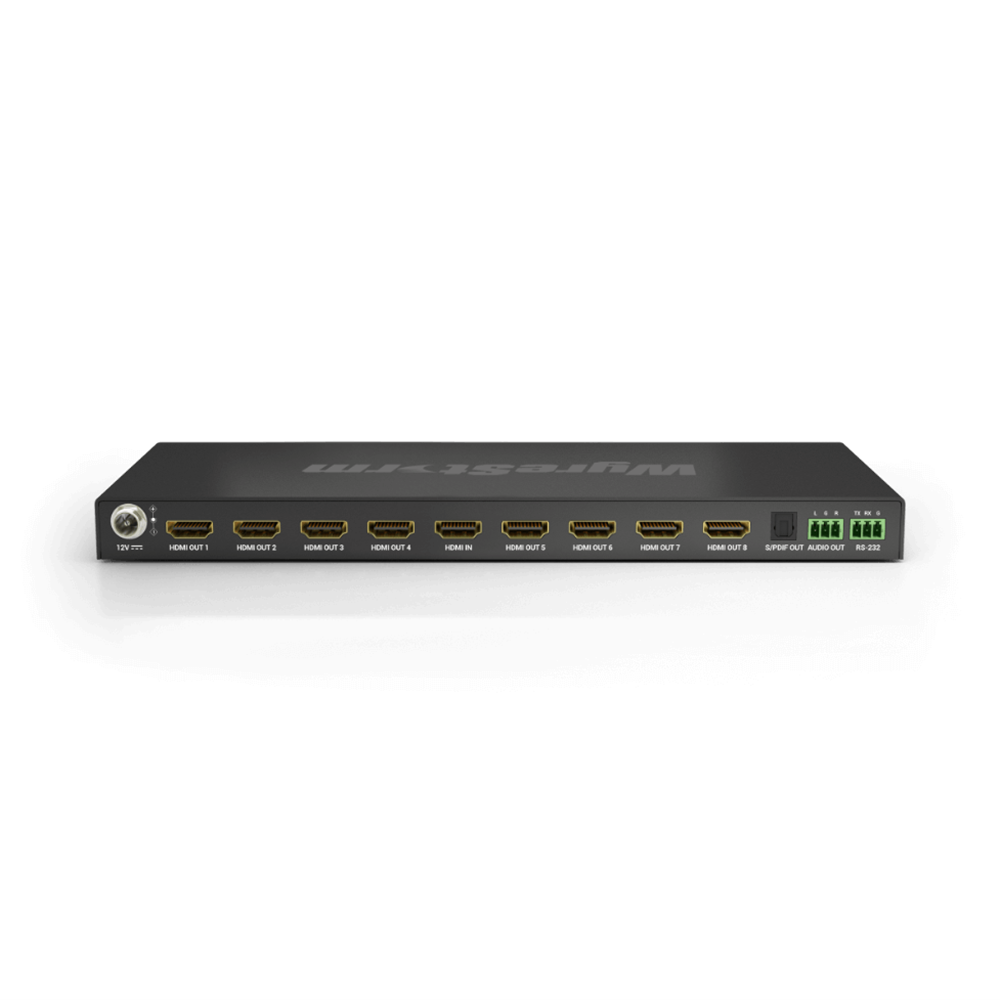

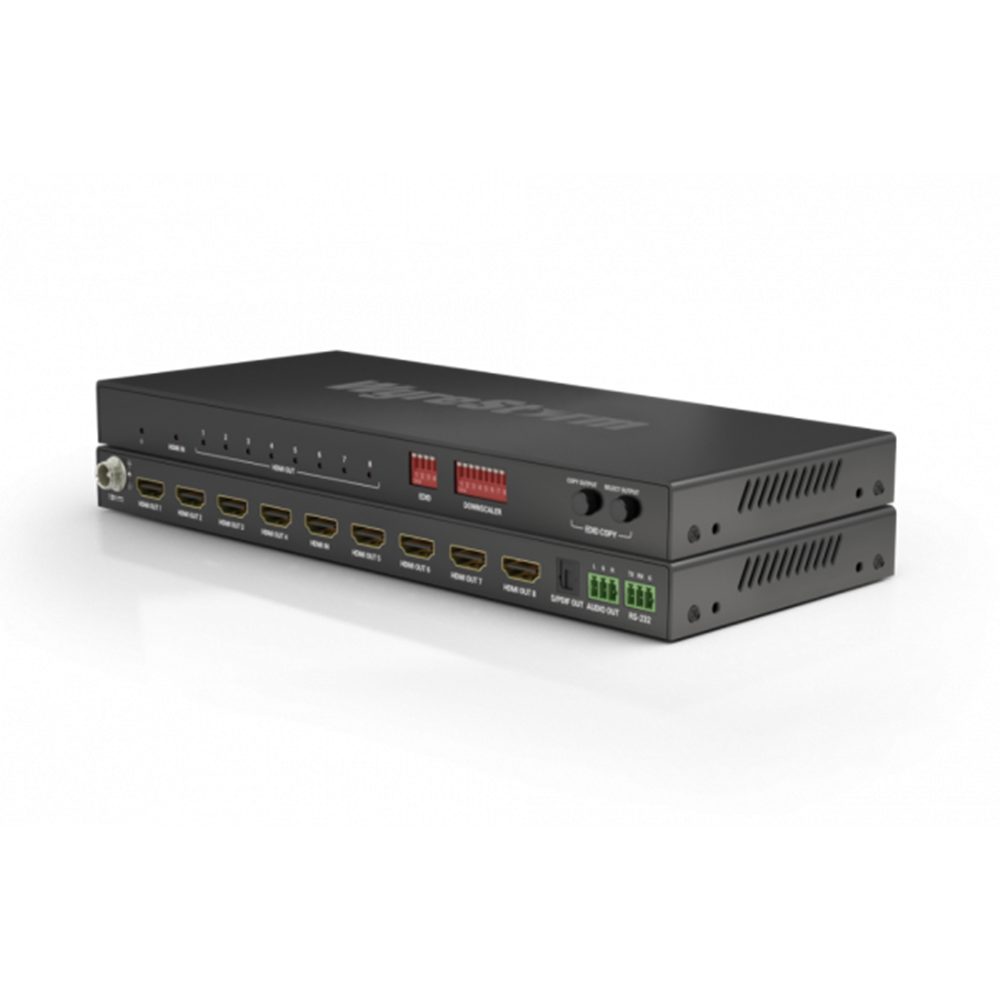

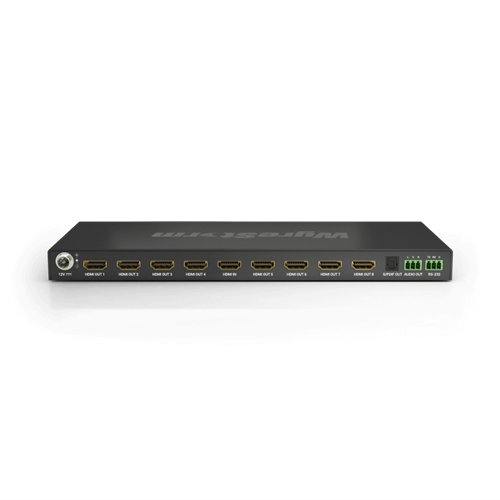

4K HDR 1:8 Splitter with Scaling Outputs

The SP-0108-SCL is a small and compact, yet powerful HDMI splitter that can be used in many applications, from digital signage, education, to retail or hospitality. Each HDMI output of the SP-0108-SCL features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. An analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs.

TAILORED FOR RETAIL
The SP-0108-SCL is perfectly tailored for small to medium retail environments such as electronic stores where multiple different brands of TVs are on a wall showing the same content for comparison. The audio for these screens can also be de-embedded for in-store audio zones for potential customers to enjoy.

OUTPUT SCALERS
Each of the 8 outputs on the SP-0108-SCL feature down scalers, which can be set via dipswitch or API, allowing support for mixed resolution distribution of HDMI content to 4K and 1080p display simultaneously.

AUDIO DE-EMBED
Featuring both an analog and digital S/PDIF, easily de-embed HDMI input audio to a secondary audio distribution system without the need for external adapters or converters.

EDID MANAGEMENT
Previous professional splitters offered basic EDID management with up to 8 different EDID settings, but the SP-0108-SCL provides more flexibility with its advance EDID management, boasting up to 16 pre-loaded EDIDs to choose from, ensuring reliable and consistent video distribution. We’ve further included a custom EDID setting, allowing you to upload your own unique EDID to use, making the SP-0108-SCL’s EDID library virtually unlimited. To make life even easier, manage EDID information through the API, dipswitches or copy and EDID from a display with the front panel buttons.

CEC TRIGGERING
Working automatically on signal presence or triggered via the API, this 1×8 splitter can send power trigger commands to all compatible connected screens or projectors, meaning an integrated autonomous control solution.

Additional Features

• Small compact design allows the splitter to be mounted locally and discreetly.
• Download PC software or connect a control system to the provided RS232 port
• Send API or use dipswitches to control EDID settings
• CEC power off delay up to 30 mins upon loss of sink

Technical Specifications

AUDIO & VIDEO

• Inputs: 1x HDMI: 19-Pin Type A
• Outputs: 8x HDMI Out: 19-pin type A | 1x 3-pin Phoenix | S/PDIF
• Video Encoding: Uncompressed 18Gbps
• End to End Latency: None
• Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
• Video Resolution (Max):
  1920x1080p @60Hz 16bit
  3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
  3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
  3840x2160p @50Hz 10bit 4:2:0 HLG
  4096x2160p @60Hz 8bit 4:4:4
• Supported Standards: DCI | RGB | HDR10 | HDR 10+ | Dolby Vision | HLG | BT.2020
• Maximum Pixel Clock: 600Mhz

COMMUNICATION & CONTROL

• HDMI: HDCP 2.2 | EDID
• RS-232: 1x 3-pin Phoenix connection

POWER

• Power Supply: 12V DC 1A
• Max Power Consumption: 6.73W
