WyreStorm Essentials™ 4K HDR 4×1 HDMI Switcher with Auto-Switching, HDCP 2.2 & Remote

SKU: EXP-SW-0401-H2

The WyreStorm EXP-SW-0401-H2 is a powerful plug-and-play 4K switcher solution. With up to 18Gbps pure HDMI support, which allows up to four 4K HDR sources to be routed to a single display. The EXP-SW-0401-H2 is capable of auto switching, giving the user the convenience of simply turning on their favorite device without the requiring manual intervention. Furthermore, the EXP-SW-0401-H2 is equipped with signal compensation, allowing an extender or splitter to connect to its output without degrading or delaying the signal.

• AUTO SWITCHING
  WyreStorm’s Essentials line of switchers follows the last in first out rule when it comes to auto-switching, making this a convenient feature when a new source is introduced.
• PLUG AND PLAY
  A trend you may notice is the plug-and-play features WyreStorm’s Essentials product line possesses and it doesn’t stop at our switchers. You can find the same auto EDID and HDCP negotiation found in other Essentials products, but specifically signal regeneration is what makes WyreStorm’s Essentials switchers the king of plug-and-play!
• SIGNAL REGENERATION
  While the EXP-SW-0401-H2 is a stand-alone device, sometimes wiring to the display is too long for a standard HDMI cable, or maybe there are additional displays added. Because of its signal regeneration feature, additional devices can be connected to the output of the switch, like an extender set or splitter, all without signal delay or degradation.
• SLIM BY DESIGN
  Slim design allows discrete placement, but sleek enough to show off in open space.

Features

• A true plug-and-play HDMI switcher, supporting up to four 4K HDR sources to one screen
• Compatible with the latest HDR standards, such as HDR10, HLG and Dolby Vision
• HDCP 2.2 compliant
• Automatic input cable equalization and signal regeneration eliminates signal degradation
• Slim design allows discrete placement, but sleek enough to show off in open spaces

Specifications

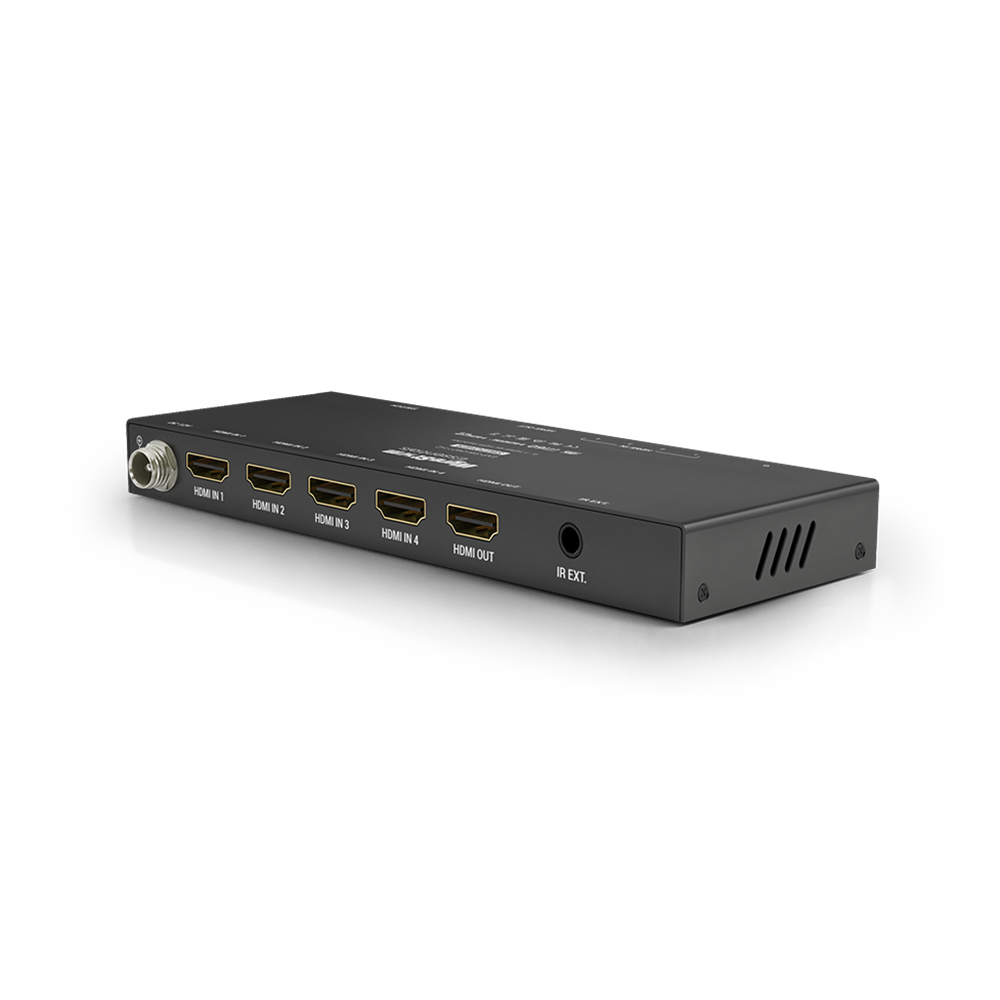

• Inputs:    4x HDMI In: 19-pin type A
• Outputs:    1x HDMI Out 19-pin HDMI type A
• Video Encoding:    HDMI | TMDS
• Encoding Data Rate:    NA
• End to End Latency:    NA
• Video Resolutions (Max):

  Video Resolutions	Video Resolutions
  1920x1080p @60Hz 16bit	7m/23ft
  3840x2160p @60Hz 8bit 4:2:0	3m/12ft
  4096x2160p @60Hz 12bit 4:2:2 Dolby Vision/HDR10	3m/12ft

• Supported Standards:    DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock:  600MHz
• Color Depth:    12bit

• HDMI:    HDCP 2.2 | EDID | DVI-D supported with adapter (not included)
• IR:    1x IR Ext. Port
• Push Button:    Front Panel Push Button

• Power Supply:    12V DC 1A
• Max Power Consumption:    3.2W

• Operating Temperature:    0 ~ + 45°C (32 ~ + 113 °F), 10% ~ 90%, non-condensing
• Storage Temperature:    -20 ~ +70°C (-4 ~ + 158 °F), 10% ~ 90%, non-condensing
• Maximum BTU:    10.92 BTU/hr

• Rack Units/Wall Box:    <1U
• Height:    16mm/0.62in
• Width:    175mm/6.9in
• Depth:    66.2mm/2.6in
• Weight:    0.25kg/0.55lbs

• Safety and Emission:    CE | FCC | RoHS | EAC | RCM
