WP4R

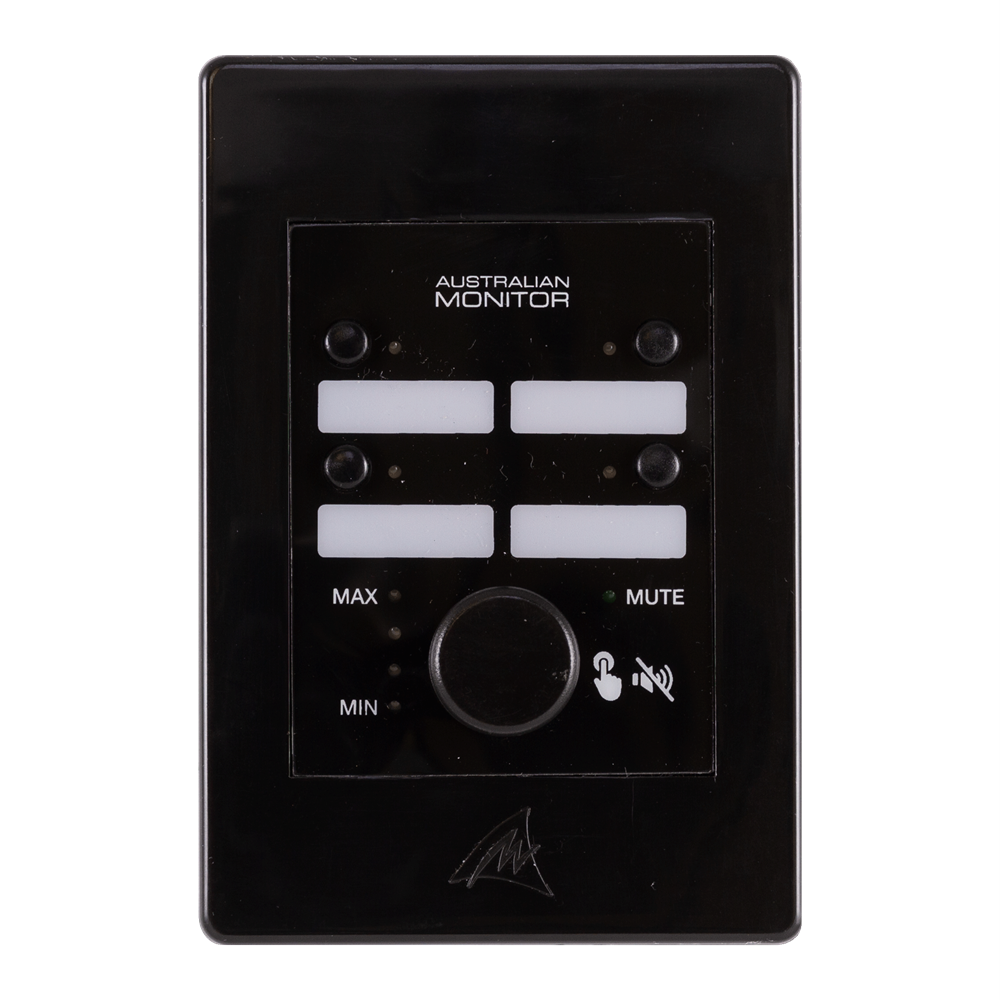

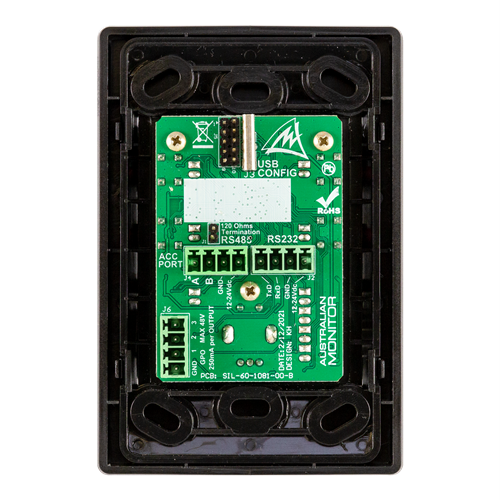

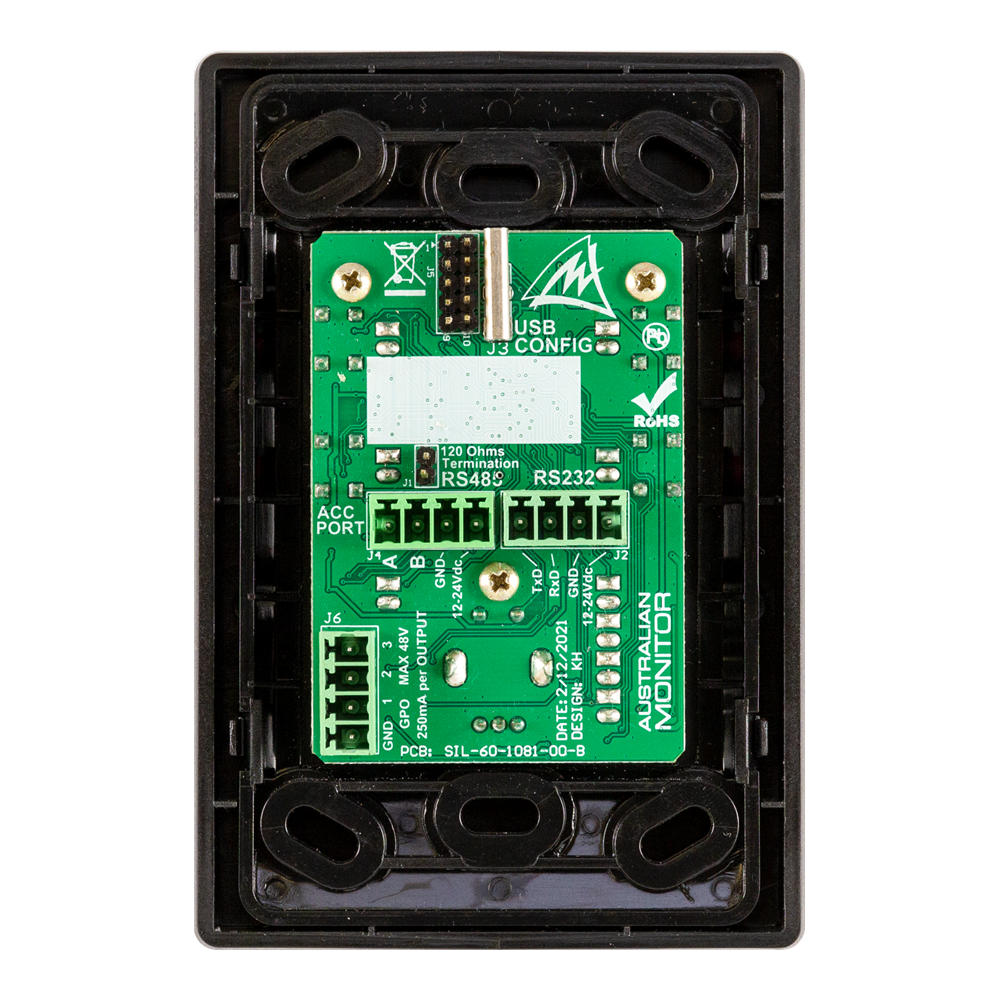

The WP4R has 4 programmable buttons and a rotary encoder which can be configures with the ZONEMIX PC application software. There are also 3 GPOs on the rear of the WP4R as well as USB-C, RS485 and RS232 connections for setup.

Options for each button include.

• Enable or disable an input in the assigned zone
• Volume up and down for the assigned zone
• Recall of global or zone presets
• Activate a paging message
• Triggering of the 3 GPO's
• Muting the assigned zone
• Available in black or white

In addition to the standard black and white colour options, the WP4R is compatible with HPM VIVO™ cover plates providing up to 14 additional colour options; unique interior fitouts can be achieved where required, such as hotels, restaurants, bars and designer retail venues.
