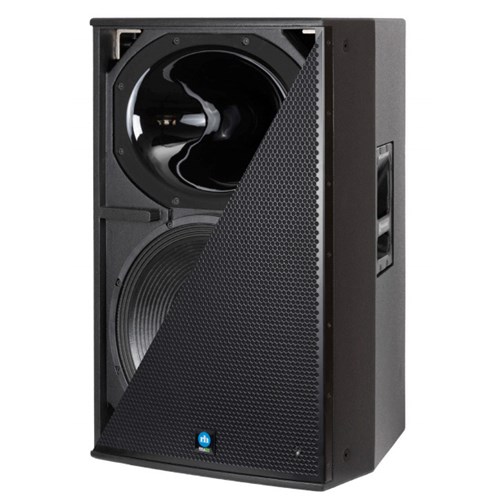

P3-15-RD

The P3-12 offers the sonic and performance advantages of a three-way loudspeaker in a cabinet the size of most two-ways. The CoEntrant CDT3 mid-high driver allows the use of a single, optimally sized Complex Conic horn. Not only does this insure consistent directivity through crossover, but also allows the horn to be ideally sized for consistent directivity through the low-mid crossover as well. Only Renkus-Heinz can combine this level of performance, fidelity and power in such a compact, easy to install or transport, loudspeaker.

Technical Data

• Frequency Response: 55 Hz. to 20 kHz. (+ or - 3 dB)
• Sensitivity: 1.0 volt for rated output, analog
• Maximum Peak SPL: 133 dB-SPL@1 watt/1 meter
• Dispersion: 60 h x 40 v (Optional 90 h x 40 v)
• Crossover Frequency: 480 Hz & 2.5 kHz active electronic
• Enclosure: 3/4 in./19 mm Lite Ply plywood
• Grille: 16 GA powder coated, plated steel
• Finish: Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
• Weight: 69 lbs/31.2 kg
• Dimensions: 445 mm w x 724 mm h x 479 mm d

SA2000 Amplifier Specifications

• Audio Connections:
  • 2 x XLR-3, In & Loop-out, Analog and AES
  • 2 x RJ45 Dante Primary & Secondary Etherne
• Network Connections: 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
• Max Input Level: +22 dBu, Analog, 0 dBFS digital
• User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
• Software: RHAON II
• Latency:
  • 6.25 ms Analog & AES
  • 6.25 ms + Dante transport latency
• Power Output: LF= 1000 watts, @ 8 ohms / MF = 500 watts @ 4 ohms, HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 400 mW. 1/8 power: 480 W (onset of limiting) 1/3 power: 1100 W (hard limiting)
• Power Connector: Neutrik powerCON TRUE-1
• Temperature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
