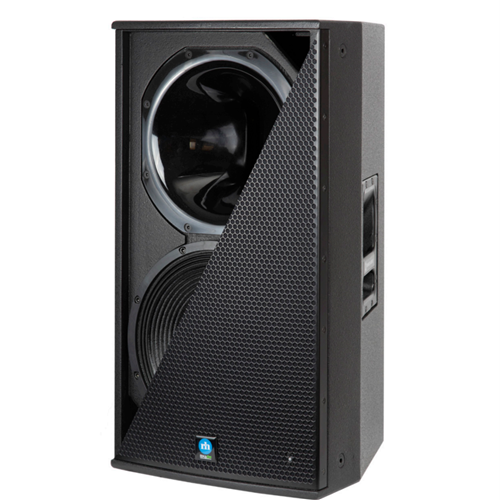

P3-12

The P3-12 offers the sonic and performance advantages of a three-way loudspeaker in a cabinet the size of most two-ways. The CoEntrant CDT3 mid-high driver allows the use of a single, optimally sized Complex Conic horn. Not only does this insure consistent directivity through crossover, but also allows the horn to be ideally sized for consistent directivity through the low-mid crossover as well. Only Renkus-Heinz can combine this level of performance, fidelity and power in such a compact, easy to install or transport, loudspeaker.

• Frequency Response: 60 Hz. to 20 kHz. (+ or - 3 dB)
• Sensitivity: 1.0 volt for rated output, analog
• Maximum Peak SPL: 133 dB-SPL@1 watt/1 meter
• Dispersion: 90 h x 40 v (Optional 60 h x 40 v)
• Crossover Frequency: All Models 480 Hz & 2.5 kHz active electronic
• Enclosure: 3/4 in./19 mm Lite Ply plywood
• Grille: 16 GA powder coated, plated steel
• Finish: Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
• Weight: 59 lbs/27 kg
• Dimensions: 3620 mm w x 699 mm h x 394 mm d

SA1250 Amplifier Specifications

• Audio Connections: All Models 2 x XLR-3, In & Loop-out, Analog and AES
• Network Connections: All Models 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
• All Models 2 x RJ45, Looping Ethernet/RHAON
• Max Input Level: All Models +22 dBu, Analog, 0 dBFS digital
• User DSP: All Models Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
• Software: All Models RHAON II
• Power Output: All Models LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.
• Mains Voltage: All Models 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: All Models Idle: 200 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
• Power Connector: All Models Neutrik powerCON TRUE-1
• Temperature Limits: All Models Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
• Latency: All Models 6.25 ms
• All Models 6.25 ms Analog & AES
• 6.25 ms + Dante transport latency
