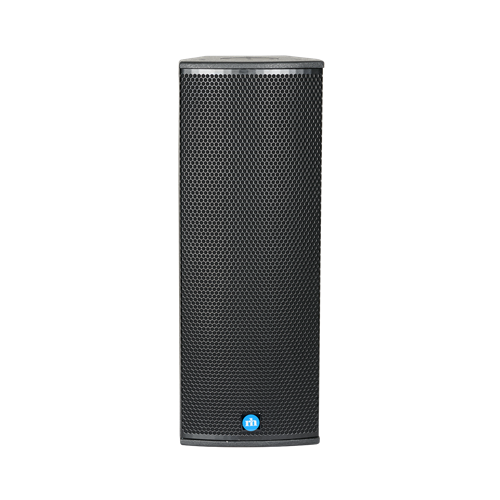

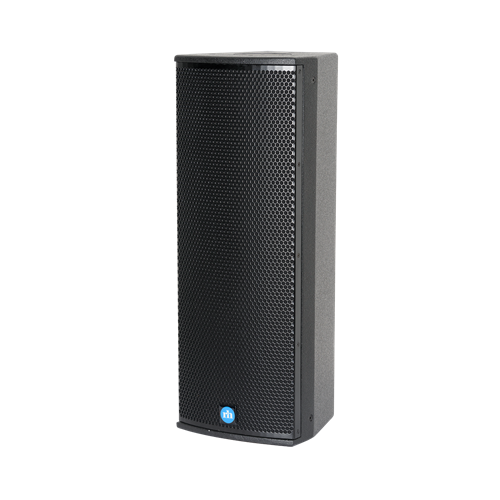

C82-A

2-Way, Full Range 2x8" LF, 1x1" HF Self-Powered Analog, SA625-A Amp Module

Two-Way Complex Conic Loudspeaker System

The C82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.

Key Features

• Miniaturized Design
  Outstanding, full-range 90 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
  Complex Conic Horn provides superior pattern control with low distortion.
• Coverage Pattern
  Complex Conic Horn provides smooth 120º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Dual Heavy-Duty 8-inch Woofers
  With carbon fiber cones easily handles 500 Watts of program power.
• Built-in Crossover
  Eliminates need for a separate electronic crossover and bi-amplification.

Applications

• Virtually any application where size is a critical issue and high output and outstanding sonic performance is required.
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
  over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc.
• Multi-channel playback systems in dance clubs (with optional subwoofers), compact floor monitors, cue loudspeakers for live music, etc.

Technical Information

• Sensitivity:  99 dB (1W/1m)
• Max SPL:  126 dB Peak
• Dispersion:  120° x 60°
• Freq. Response:  ± 3 dB, 90 Hz to 20 kHz
• HF Driver:  1" Titanium driver, model SSD1445-16; 20 W AES
• LF Driver: Dual 8" woofer, model SSL8-20; 1" VC; 125 W AES @ 16 Ohms
• Power Rating:  See SA625 Amplifier
• Enclosure: Poplar Ply, perforated metal grille
• Connectors:  See SA625 Amplifier
• Finish: Black or White Paint
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M6 threads)
  • M10 U-bracket attachment points
• Dimensions:
  • 28-1/2" H x 10-5/16" W x 10-1/2" D
  • 724 mm H x 262 mm W x 267 mm D
• Weight: 34 Lbs / 15.4 kg, Net

SA625 Amplifier Specifications

• Audio Connections:  2 x XLR-3, In & Loop-out, Analog
• Maximum Input Level: +22 dBu, Analog
• Latency: 6.25 ms
• Power Output: LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
• Power Connector:  Neutrik powerCON TRUE-1
• Temprature Limits:  Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
