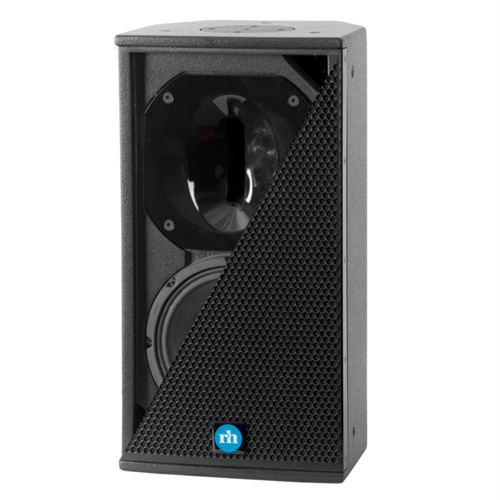

TX81

8-inch Heavy Duty Woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T81 features an 8-inch heavy duty woofer and a 1-inch titanium HF driver.

TX81 Non-Powered Loudspeakers
For use with external amplification

Key Features

• High Volume Output, Small Enclosures
  70 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
• Exclusive 120° x 60° Complex Conic Design
  Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
• 1-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 8-inch Woofer
  Easily handles 250 Watts of program power.

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

• Ideal for fills, delays, distributed and playback systems Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments

Portable Applications

• Ideal solution for portable, compact, full-range sound reinforcement requirements.
• Performing artists, rental A/V, schools, churches, etc.

Technical Information

• Sensitivity: 96 dB (1W/1m)
• Dispersion: 120° H x 60° V or 90° H x 60° V Rotatable
• Freq. Response: ± 3 dB, 90 Hz to 20 kHz
• HF Driver: 1" Titanium driver, model SSD1445-16; 20 W AES
• LF Driver: 8" woofer, model SSL8-20; 1" VC; 125 W AES @ 16 Ohms
• Power:
  • 125 W AES @ 16 Ohms
  • 250 W Pgm @ 16 Ohms
• Connectors: Screw terminals & looping 4-pin Neutrik SpeakOn style connectors
• Enclosure: 18mm Lite Ply, perforated metal grille
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M6 threads)
  • M10 U-bracket attachment points
• Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
• Dimensions: 262 mm H x 533 mm W x 267 mm D
• Weight: 25 Lbs / 11.3 kg, Net
