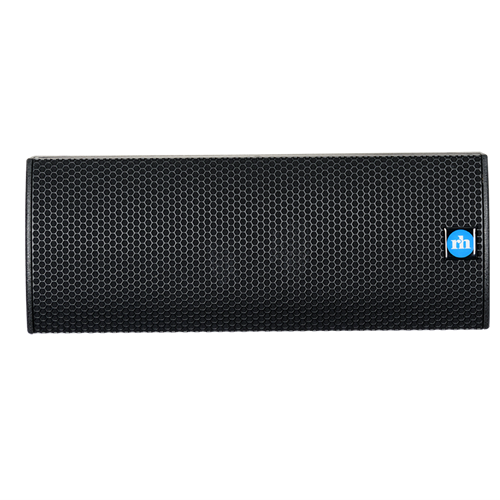

TA62-A

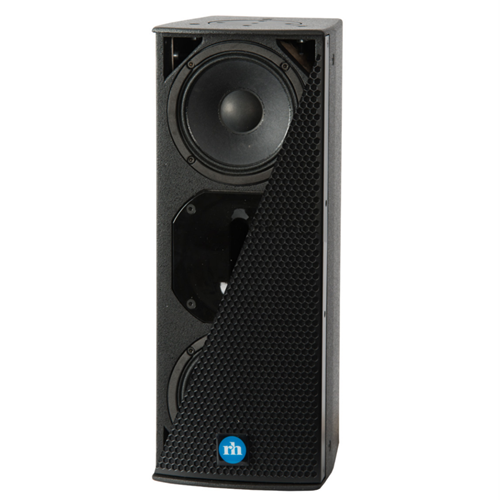

The T62 features dual 6.5-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.

TA62 Powered Loudspeakers
Equipped with SA625 Series Amplification

TX62 Non-Powered Loudspeakers
For use with external amplification

Key Features

• Miniaturized Design
  Outstanding, full-range 70 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
  Complex Conic Horn provides superior pattern control with low distortion.
• Wide-Angle 150º x 60º Coverage
  Complex Conic Horn provides smooth 150º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 6.5-inch Woofers
  With carbon fiber cone easily handles 400 Watts of program power.
• Built-in Crossover
  Eliminates need for a separate electronic crossover and bi-amplification.

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required.
• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
  over balconies, etc.
• Foreground music systems in shopping malls, retail stores, offices, etc.

Technical Information

• Max SPL: 124 dB, Peak
• Dispersion: 150° H x 60° V Rotatable
• Freq. Response: ± 3 dB, 100 Hz to 20 kHz
• HF Driver: 1" Titanium driver, model SSD1445-16; 20 W AES
• LF Driver:  Dual, 6.5" woofer, model SSL6.5-18; 1" VC; 100 W AES @ 16 Ohms
• Power Handling: See SA625 Amplifier
• Connectors: See SA625 Amplifier
• Enclosure: 15mm Lite Ply, perforated metal grille
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M6 threads)
  • M10 U-bracket attachment points
• Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
• Dimensions: 200 mm H x 533 mm W x 238 mm D
• Weight: 25 lbs. / 11.3 kg, Net

SA625 Amplifier Specifications

• Audio Connectors: 2 x XLR-3, In & Loop-out, Analog
• Maximum Input Level: +22 dBu, Analog
• Latency: 6.25 ms
• Power Output: LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
• Power Connector: Neutrik powerCON TRUE-1
• Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
