Speakers

18 Sub Passive TX118S Renkus Heinz

Product Code: RH-TX118S

Brand
Renkus Heinz
RRP $6,300.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Renkus Heinz
Series T Series
Size 18"
  • Details
  • Downloads
  • Ordering

TX118S

18-inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

T118S subwoofers were developed as companion pieces to full range C series loudspeakers. They provide the high impact sub bass energy needed in many venues.


TX118S Non-Powered Loudspeakers
For use with external amplification


Key Features

  • Powerful 18-inch Subwoofers
    Outstanding 35 Hz to 100 Hz, 137 dB peak SPL sub-bass performance.
  • High Performance, High Power Woofers
    With 4-inch voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900 Watts of program power.
  • Built-In Lo-Pass Filter
    Eliminates the need for an external electronic crossover.

If you need an outstanding high-power 18-inch subwoofer, order the T118S.


Applications

  • Virtually any application where high-output, low frequency content is required

Permanent Installations

  • High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

  • Live music reinforcement, DJ systems, houses of worship, schools, etc.

Technical Information

  • Sensitivity: 98 dB (1W/1m)
  • Max SPL: 131 dB, peak, half space
  • Freq. Response: 35 Hz to 100 Hz
  • LF Drivers: SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
  • Power Handling:
    • 450 W AES @ 8 Ohms
    • 900 W Pgm @ 8 Ohms

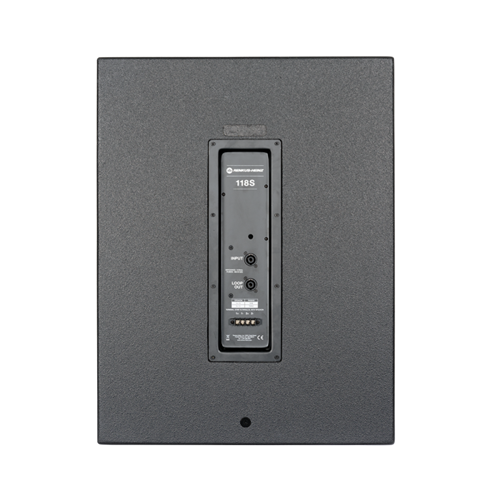

  • Connectors: Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
  • Enclosure: 19 mm Lite Ply, perforated metal grille
  • Hardware: 12 x M10 UMH Points, 35 mm Pole Socket
  • Finish: Black or White Paint, standard.
  • Custom Color, Weather Resistant, optional.
  • Dimensions: 445 mm w x 724 mm h x 432 mm d
  • Weight: 88 lbs. / 39.9 kg, net

Product Documents
