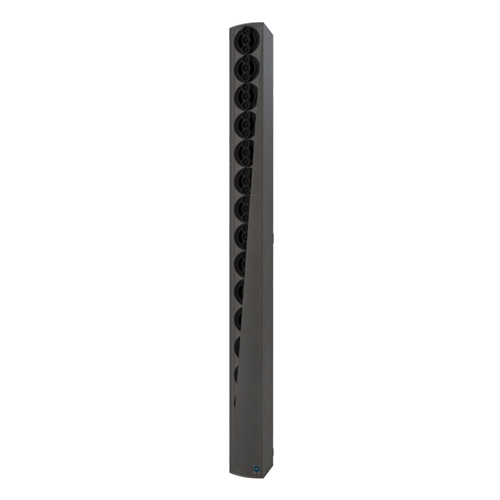

IC16-RD

Digitally Steerable Line Array Loudspeaker Systems

Since 2005 Renkus-Heinz have been leading the field in Digitally Steerable loudspeakers.

ICONYX has now been installed in thousands of project worldwide, from LAX International Airport in Los Angeles to the Great Hall of the People in Beijing, China.

Truly the most flexible, powerful and architecturally seamless, Digitally Steerable Column Array on the market Iconyx brings intelligible sound to even the most demanding acoustic environments.

Dual Redundant Dante Connectivity

• RHAON II Control and Dante audio delivery over the same Dante network connection
• 16x 4″ Coaxial Transducers each with three HF tweeters
• 16x Amplifier and DSP channels
• Beam control effective down to 400Hz
• Multiple beams and multiple acoustic beam centers
• Multiple Configuration Presets
• Slim, Low-Profile Design

ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to eight steerable beams can be individually shaped and aimed from a single IC16-RD column using the powerful software-controlled DSP.

Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.

Technical Information

• Sensitivity:    1.0 V (for rated power output)
• Freq. Range:    120 Hz to 18 kHz
• Max SPL:    111 dB peak @ 100 Ft. (30.5 meters)
• Power Consumption:    Idle: 120 Watts1/8 Power: 240 W (onset of limiting)1/3 Power: 840 W (hard limiting)
• Horiz. Dispersion:    150° up to 3 kHz; 120° above 3 kHz
• Vert. Opening Angles:    10°, 15° and 20°
• Vert. Aiming Angle:    Adjustable from -30° to +30°
• Typical Throw:    135 Ft. (40 meters)
• Beam Control:    Effective down to 400 Hz
• System Latency:    8ms analog input to outputPreset 0
• No. Transducers:    16 coaxial transducers, each having triple tweeters
• No. Amp. Channels:    16
• Transducers:    Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm
• Inputs:    Analog Audio: 2 balanced inputs on Phoenix ConnectorsAES/EBU: Phoenix ConnectorDual RJ45 connectors for Ethernet Control
• Computer Controls:    Gain, Mute, On/Standby, Input SelectionCompression8-Band Parametric EQShelving &Rolloff FiltersDelayPreset Configuration Selection
• Status Indicators:    PowerSignalOverdriveThermalMuteInput PadPreset Configuration Selection Readout
• Hanging Method:    2-point hinges or Metric M6 thread eye-bolts
• Enclosure:    Extruded Aluminum with perforated steel grille
• Finish:    White paint standardOptional finishes: black and custom color paintWeather resistant
• Weight:    72 Lbs (32.6 Kg) Net
• Dimensions:    74 3/4” H x 6 1/8” W x 7 5/16 D (1898mm x 156mm x 186mm) (includes Mounting Hinges)
