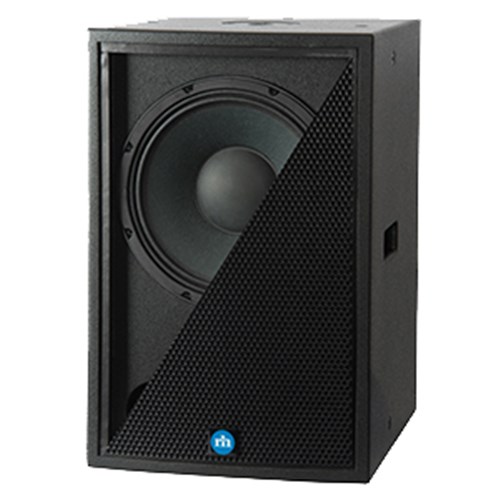

CX/CA112S 12 Inch High-Performance Subwoofer

C112S subwoofers were developed as companion pieces to full range C Series loudspeakers. They provide the high impact sub bass energy needed in many venues.

12-Inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

CX112S Non-Powered Loudspeakers
For use with external amplification

Key Features

• Powerful 12-inch Subwoofers
  Outstanding 40 Hz to 120 Hz, 133 dB peak SPL sub-bass performance.
• High Performance, High Power Woofers
  With long-throw magnetic structures easily handle 500 Watts of program power.
• Built-In Lo-Pass Filter
  May be bypassed to allow use of an external electronic crossover.

Applications

• Virtually any application where high-output, low frequency content is required

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

• Max SPL:    124 dB peak, half space
• Freq. Response:   40 Hz to 120 Hz
• LF Driver:     SSL12-23 woofer, 250 W AES @ 8 Ohms, 500 W Pgm
• Enclosure:   11 Ply Hardwood, perforated metal grille
• Finish:     Black Paint
• Power:     See SA650 Amplifier Specs
• Connectors:    See SA650 Amplifier Specs
• Hardware:     12 M10 Points, 1 x 35 mm pole socket
• Dimensions:   381 mm w x 587 mm h x 438 mm d
• Weight:   23.6 kg, net

• Audio Connections:
  • 2 x XLR-3, In & Loop-out, Analog and AES
  • 2 x RJ45 Dante Primary & Secondary Ethernet
• Network Connections:      2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
• Maximum Input Level:     +22 dBu, Analog; 0 dBFS digital
• User DSP:       Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
• Software:     RHAON II
• Latency:      6.25 ms + Dante transport latency
• Power Output:      LF= 500 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage:     100-240 volts, 50/60 Hz auto-switching
• Power Consumption:     Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
• Power Connector:      Neutrik powerCON TRUE-1
• Temprature Limits:      Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
