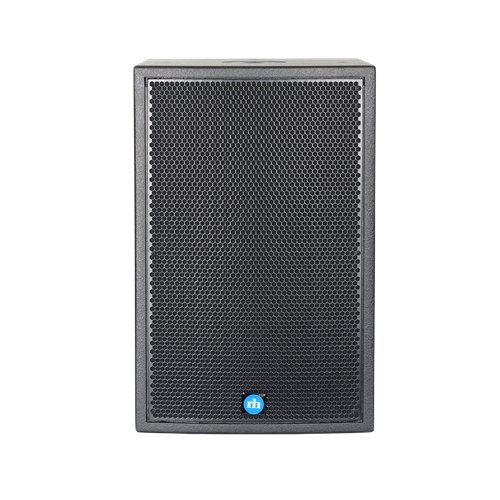

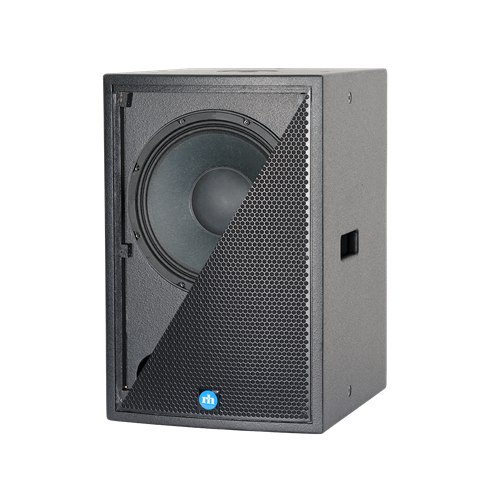

CA112S-A

C112S

12-Inch High Performance Subwoofer

Sound that makes performances and audiences truly come alive doesn't come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

Key Features

• Powerful 12-inch Subwoofers
  Outstanding 40 Hz to 120 Hz, 133 dB peak SPL sub-bass performance.
• High Performance, High Power Woofers
  With long-throw magnetic structures easily handle 500 Watts of program power.
• Built-In Lo-Pass Filter
  May be bypassed to allow use of an external electronic crossover.

Applications

• Virtually any application where high-output, low frequency content is required

Permanent Installations

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

Technical Information

• Max SPL: 124 dB peak, half space
• Freq. Response: 40 Hz to 120 Hz
• LF Driver: SSL12-23 woofer, 250 W AES @ 8 Ohms, 500 W Pgm
• Enclosure: 11 Ply Hardwood, perforated metal grille
• Finish: Black Paint
• Power: See SA650 Amplifier Specs
• Connectors: See SA650 Amplifier Specs
• Hardware: 12 M10 Points, 1 x 35 mm pole socket
• Dimensions: 445 mm w x 724 mm h x 432 mm d
• Weight: 52 lbs / 23.6 kg, net

SA625 Amplifier Specs

• Audio Connections: 2 x XLR-3, In & Loop-out, Analog
• Maximum Input Level: +22 dBu, Analog,
• Latency: 6.25 ms
• Power Output: LF= 500 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
• Power Connector: Neutrik powerCON TRUE-1
• Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
