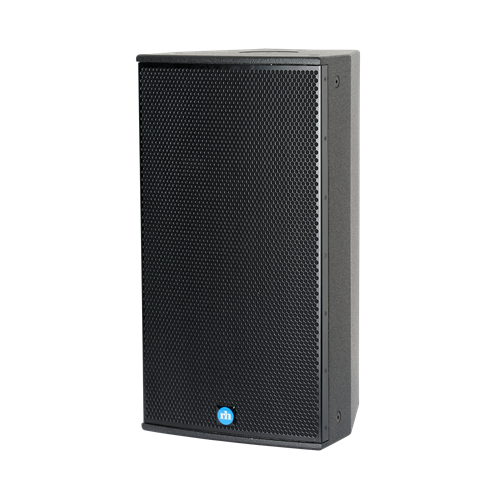

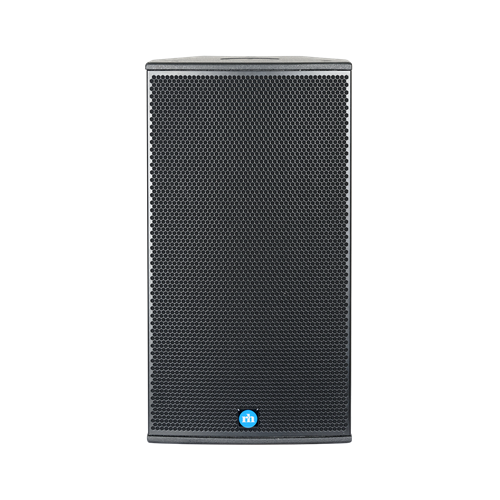

C121-A

12-Inch Heavy Duty Woofer + 2-inch Titanium HF Driver
Sound that makes performances and audiences truly come alive doesn't come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The C121 features a 12-inch heavy duty woofer and a 2-inch titanium HF driver.

Key Features

• Compact Design
  Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.

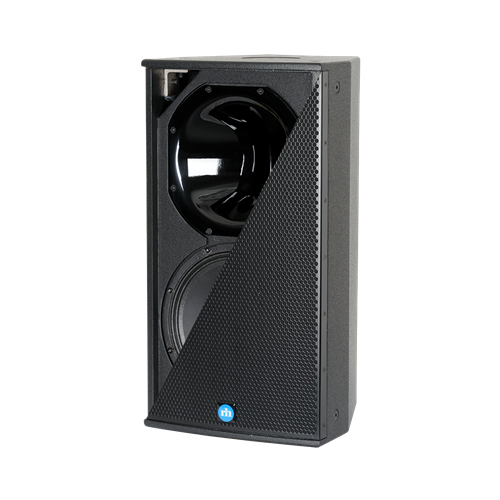

• Exclusive 90° x 40° Complex Conic Design
  Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
• 2-inch Extended Range Titanium HF Driver
  Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
• Heavy-Duty 12-inch Woofer
  Easily handles 600 Watts of program power.
• Built-in Crossover
  Includes EQ and high frequency protection; in the C121 eliminates need for a separate electronic crossover and bi-amplification.

If you need an outstanding high-power 12-inch 2-way system, order the C121.

Applications

• Virtually any application where size is a critical issue and outstanding sonic performance is required.

• Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
• Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.

• Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
• Rental A/V, DJ systems, churches, schools, etc.

Technical Information

• Max SPL: 127 dB Peak
• Dispersion: 90° x 40°
• Freq. Response: ± 3 dB, 60 Hz to 20 kHz
• HF Driver: SSD1747-8 driver, 60 W AES @ 8 ohms
• LF Driver: SSL12-26, 350 W AES @ 8 ohms
• Enclosure: Poplar Ply, perforated metal grille
• Finish: Black or White Paint
• Power Rating: See SA-1250 Amplifier
• Connectors: See SA-1250 Amplifier
• Hardware:
  • 12-point Universal Mounting Hardware (Metric M10 threads)
  • M10 U-bracket attachment points
• Dimensions: 686 x mm H x 365 mm W x 362 mm D
• Weight: 45 lbs / 20.4 kg, Net

SA1250 Specifications

• Audio Connections: 2 x XLR-3, In & Loop-out, Analog
• Maximum Input Level: +22 dBu, Analog
• Latency: 6.25 ms
• Power Output: LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
• Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
• Power Consumption: Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
• Power Connector: Neutrik powerCON TRUE-1
• Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
