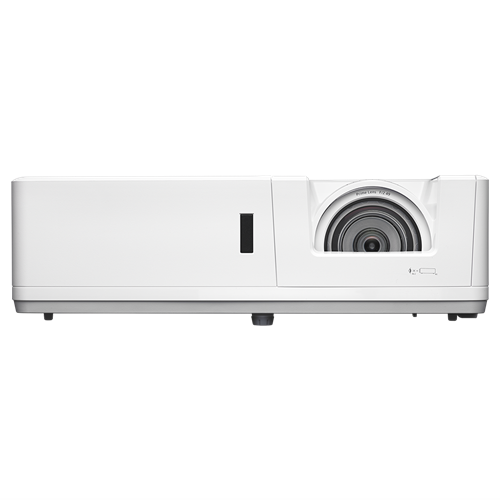

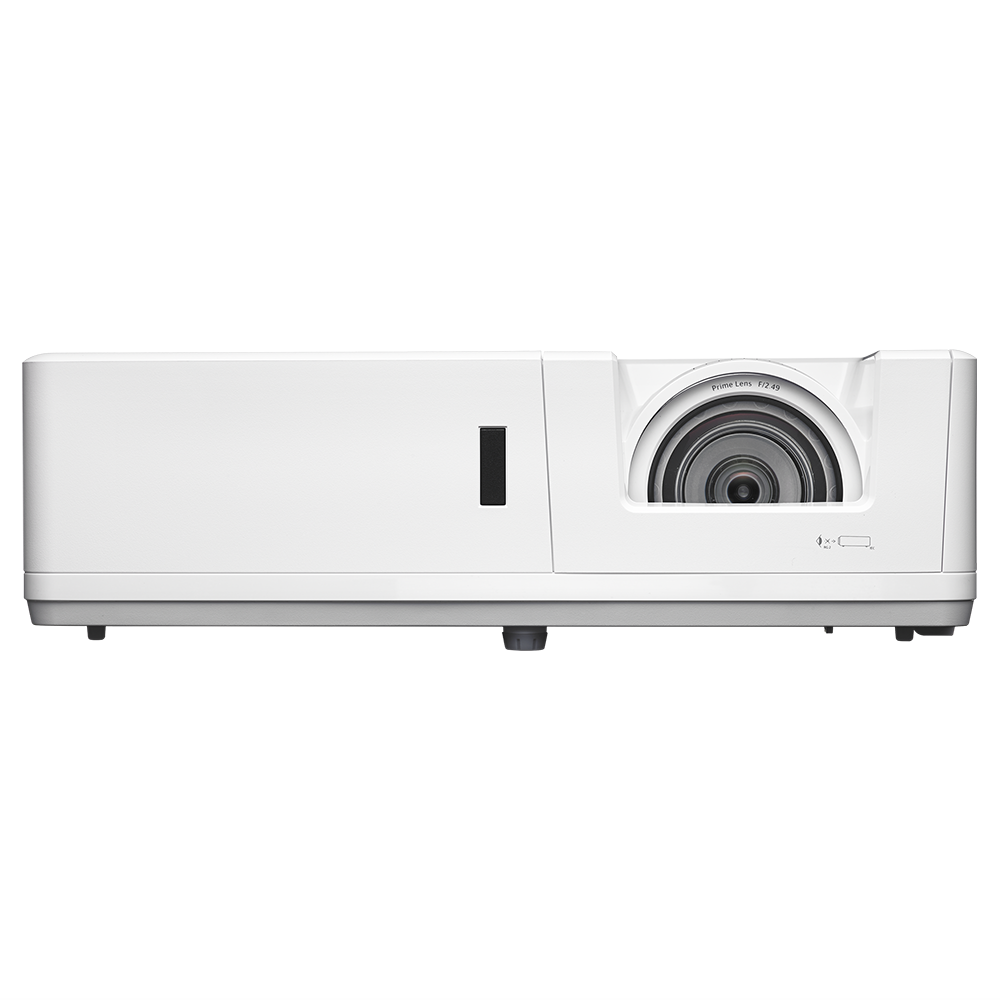

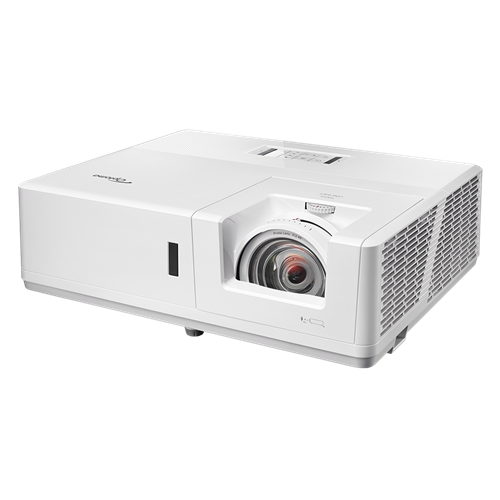

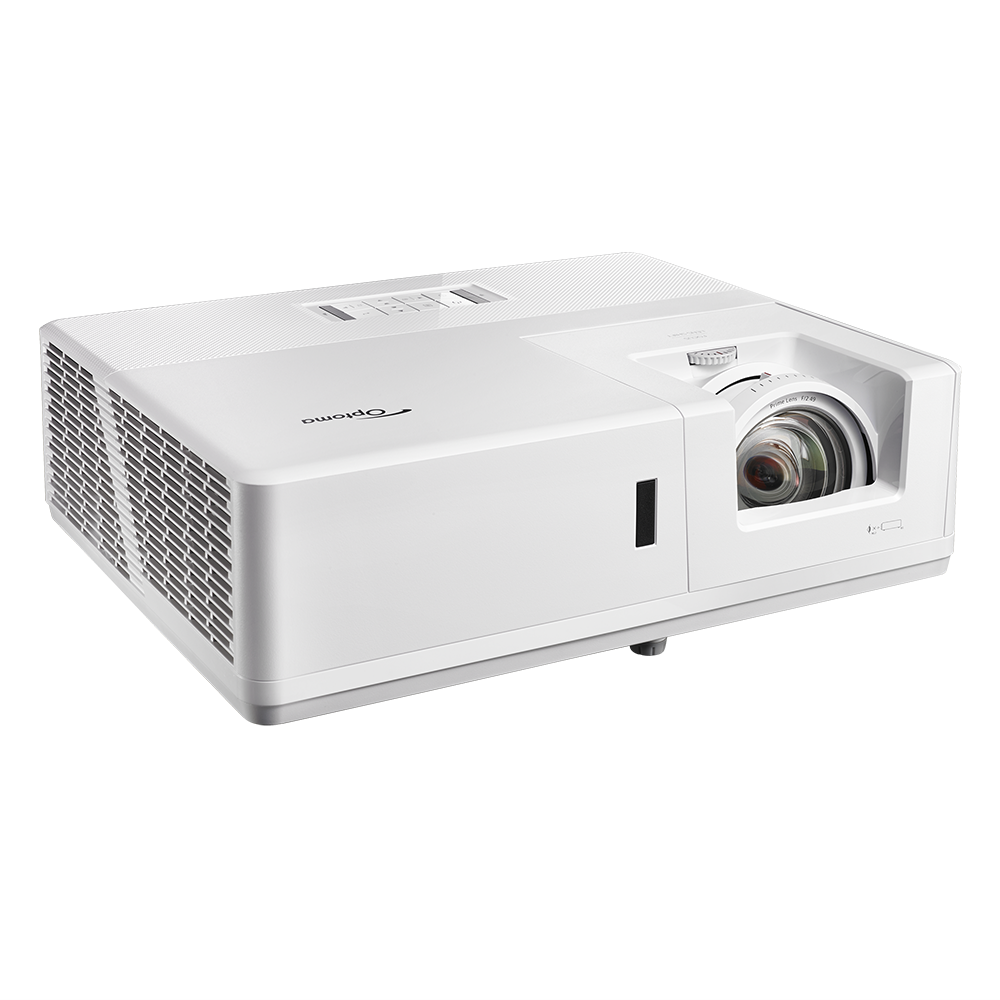

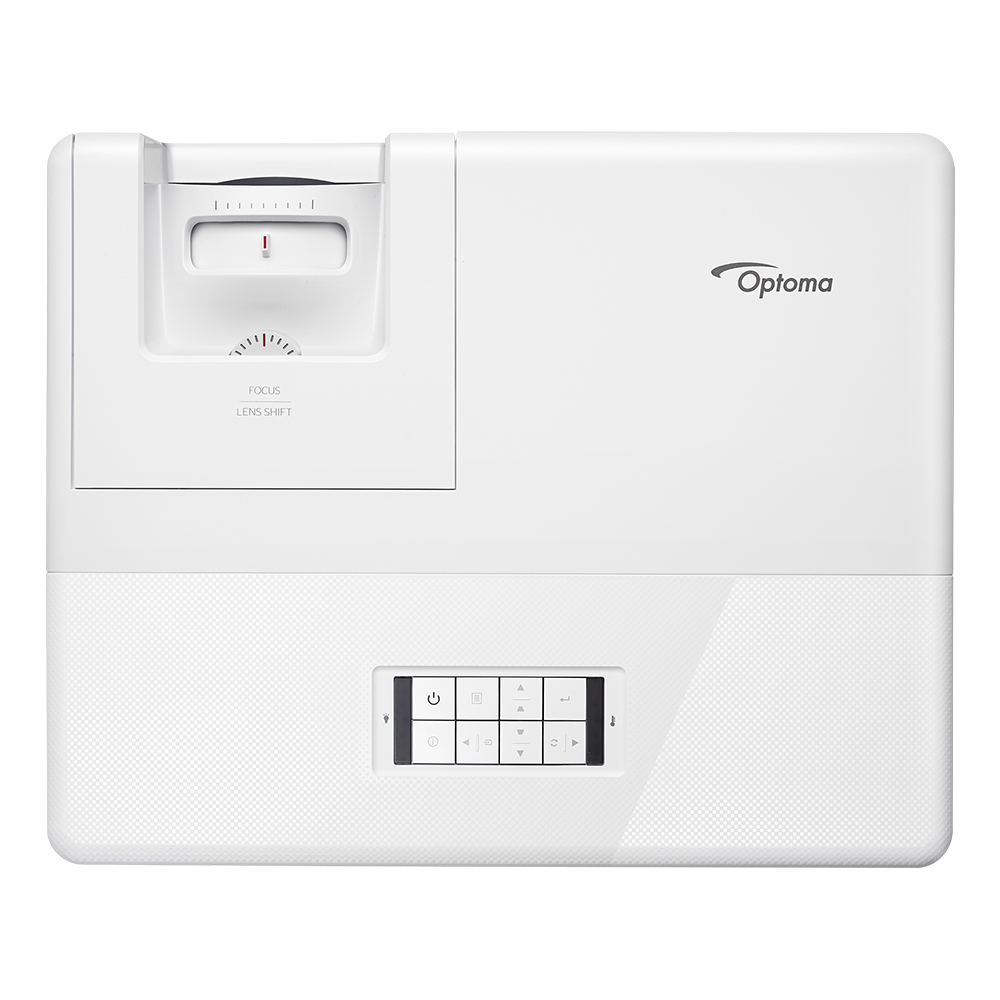

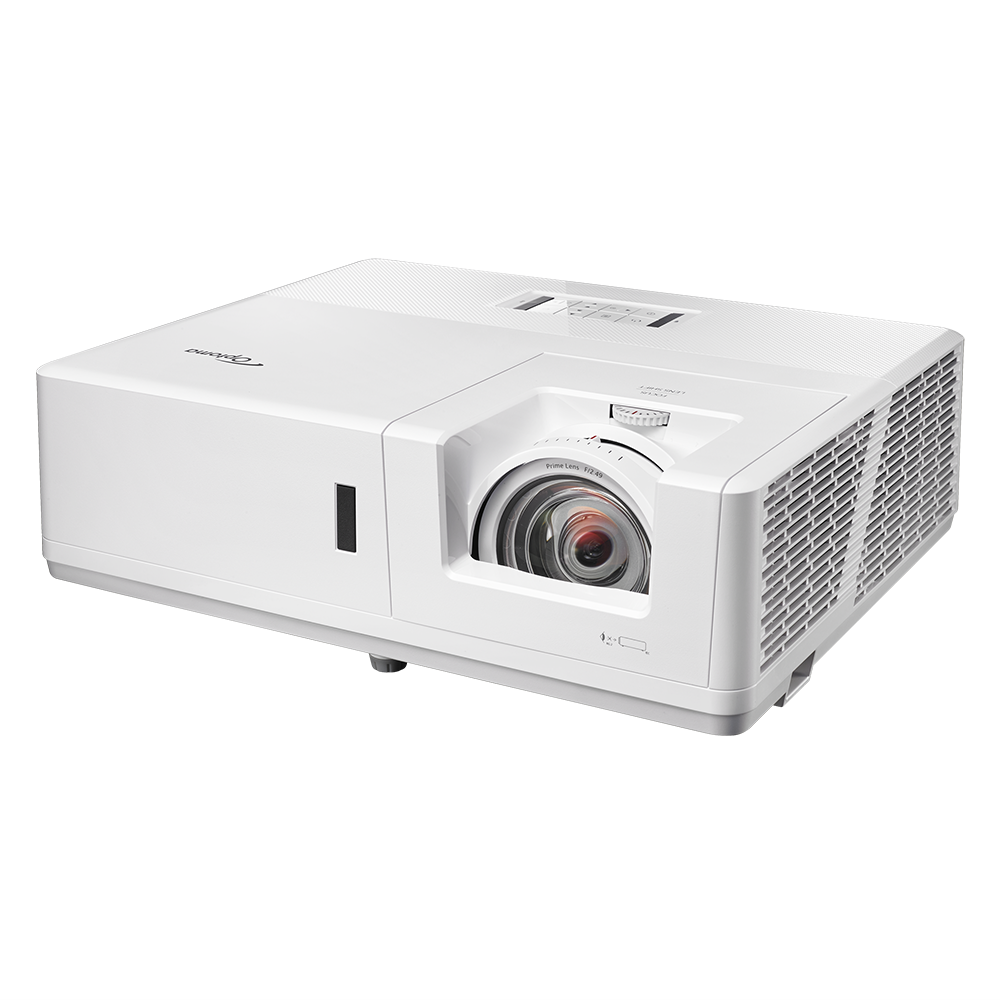

ZU606TST

• High lumens brightness projector compatible with 4K & HDR
• Short throw lens design creates 100 inch projection images from just 1.7 meters away.
• Optoma DURACORE Technology, IP6X dust resist provides good brightness and reliability
• Up to 20,000 hours laser light source life and virtually zero maintenance for system
• Amazing color, 90% Rec.709 color gamut coverage to render lifelike images
• Dynamic Black delivers more depth to the image with a stunning high contrast ratio.
• Vertical lens shift with smallest size among competition make it labor and time saving for installation
• Tilt free orientation, including portrait mode
• Full 3D supported
• HDBaseT for easy installation

Focusing on its high brightness 6,000 lumens and short throw lens design, the ZU606TST is offering best value for the professional installation market. This projector is perfect for those applications that simply require the brightness level, ease of installation, with minimum maintenance for up to 20,000 hours. Delivering outstanding reliability, high intensity brightness, compact design, stunning colors and spectacular image quality, The ZU606TST is precision engineered to power larger than life experiences.

The ZU606TST is the perfect solution for businesses, conference rooms, higher education, auditoriums, exhibitions, digital signage, entertainment venues, projection mapping, and simulation.


4K / HDR Compatible
The 606 series is capable to accept native 4K signals and compatible with HDR10.

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.


Robust & Reliable Optoma DURACORE
This projector is designed with Optoma’s Airtight Optical Engine with IP6X certification.The airtight enclosure resists dust particles and ensures a long lasting, reliable and maintenance free experience, and ultimate brightness consistency and reliability. The Mercury free laser light source is rated for up to 20,000 hours enabling a low total cost of ownership.


Amazing Color
This project achieves 90% Rec. 709 coverage to render lifelike images that will wow your audience.


Dynamic Black
This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.


Short Throw Projector
The ZU606TST offers big image in tight spaces, creating 100 inch projection images from just 1.7 meters away.


Vertical Lens Shift
Simplify installation with lens shift, which provides a wide range of projector placement possibilities.


4 - Corner Adjustment
By individually adjusting each corner of the image, it eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.


Color Matching Mode
The color matching system, combines accurate measurements across multiple projectors creates seamless blends every time.


Full 3D Supported
606 series can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.


24/7 operation
All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.


360° and portrait projection capability
Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.


Network control protocols
Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery, PJ-Link, Telnet and HTTP protocols are fully supported, allowing the series to be controlled across a network, keeping you in control, wherever you are.


HDBaseT
Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.


AV Mute
In situations where only absolute darkness is required, this projector can provide a total blackout that functions like mechanical shutter. The change between normal projection to a total black image and vice versa is instantaneous.


Low Noise: Quieter than a Whisper
Only 32dB in ECO mode.


Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Display Technology	DLP
Native Resolution	WUXGA 1920 x 1200
Brightness	6000 ANSI Lumens
Contrast	300,000:1 (w/ Extreme black)
Light Source	Laser phosphor
Light Source Life	20,000 hours to 50% brightness (Eco mode)
Throw Ratio	0.8
Zoom Type	Fixed
Lens Shift	100% – 120% vertical

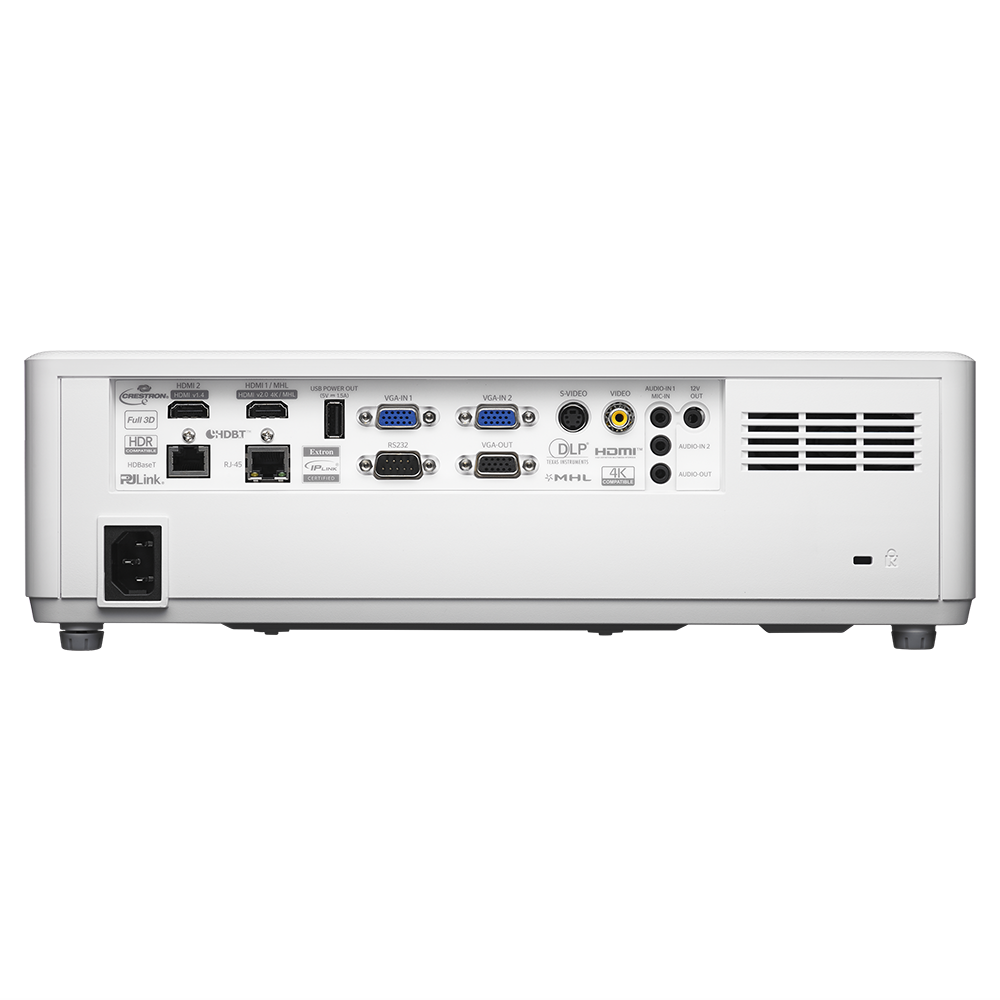

I/O Connectors	HDMI x1, HDMI/MHL x1, VGA in x1, VGA out x1, Audio in 1/ Mic x1, Audio in 2 x1, Audio out x1, USB Power (5V/1.5A), RJ-45, RS232, Composite x1, 12V out x1 2nd VGA in, S-video & HDBaseT
Speaker (Watts)	10W x 2
Keystone Correction	±20° Vertical, ±20° Horizontal
Weight (Kg)	5.7
Dimensions (W x D x H) (mm)	374 x 302 x 107 (excluded adjustment feet)
Aspect Ratio	4:3, 16:9 or 16:10, LBX, Native, Auto
Offset	100% – 120%
Projection Screen Size	29.38” ~ 305.6”
Projection Distance	0.5 – 5.2m
Projection Lens	C21R, fixed
Uniformity	85%
Computer Compatibility	UHD, WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA Compression, VESA standards, PC & Macintosh compatible
Video Compatibility	480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (24/50/60Hz), 2160p(24/50/60Hz)
3D Support	Full 3D
Horizontal Scan Rate	15.375 – 91.146 kHz
Vertical Scan Rate	24 – 85 Hz (120Hz for 3D feature projector)
Displayable Colors	1073.4 million colors (10 bit)
Noise Level	32db (Eco mode)
Power Supply	100~240V, 50~60Hz, auto-switching
Power Consumption	Bright : Typical 414W MAX 476W @ 110VAC Typical 386W MAX 444W @ 220VAC ECO mode : (50%) Typical 191W MAX 220W @ 110VAC Typical 187W MAX 215W @ 220VAC
360-operation	Yes
Portrait Mode	Yes
Projection Method	360° operation, Portrait mode supported
