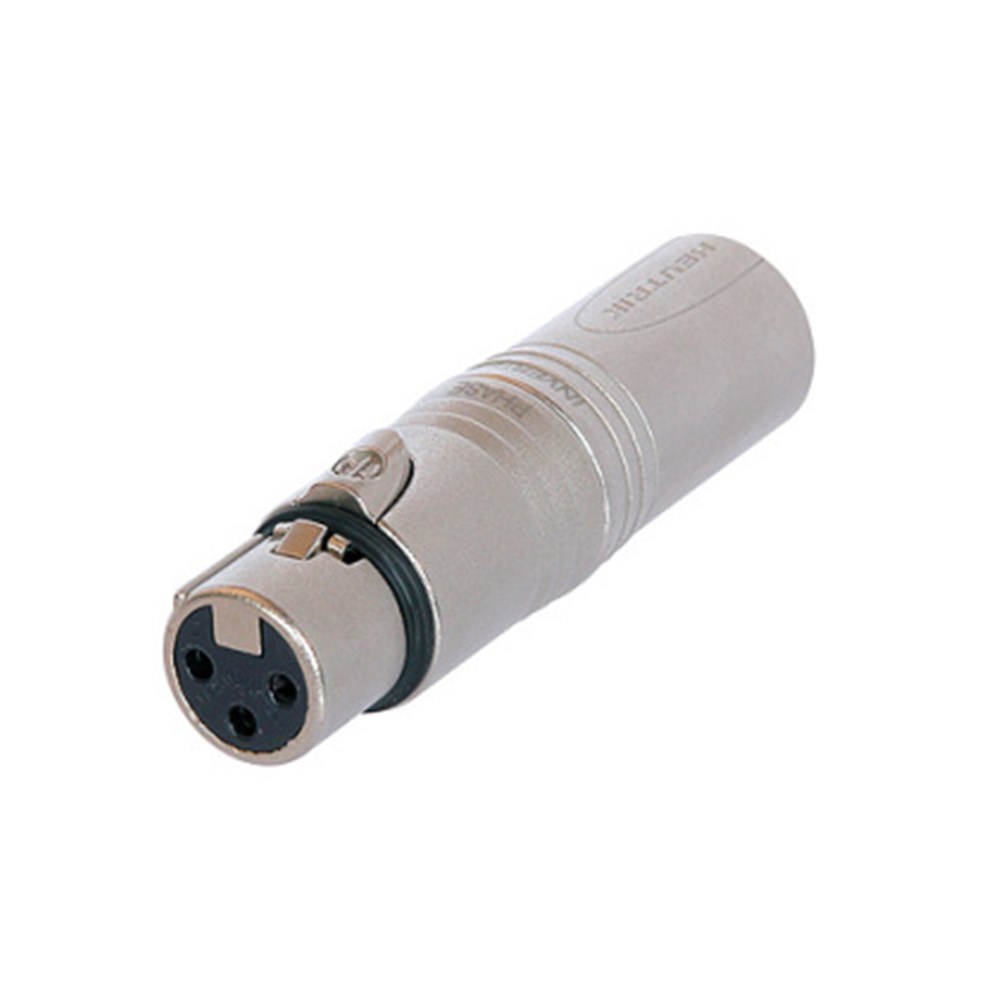

XLR MALE TO XLR FEMALE

Product Code: NU-NA3FM

Brand
Neutrik
RRP $29.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Adapter Type XLR
  • Details
  • Downloads

NA3FM


3 pole XLR male - 3 pole XLR female (extention adapter)


Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability.



Product


Title

  • NA3FM

Connection Type

  • Adapter

Electrical


Contact resistance

  • ≤ 3 mΩ

Dielectric strength

  • 1,5 kVdc

Insulation resistance

  • > 2 GΩ

Mechanical


Locking device

  • Latch lock

Material


Contact plating

  • 2 µm Ag

Contacts

  • Bronze (CuSn6) (female)

Insert

  • Polyamide (PA 6.6 30 % GR)

Shell

  • Zinc diecast (ZnAl4Cu1)

Shell plating

  • gal Cu/Ni

Environmental


Temperature range

  • -20 °C to +65 °C

Product Documents

No documents available
