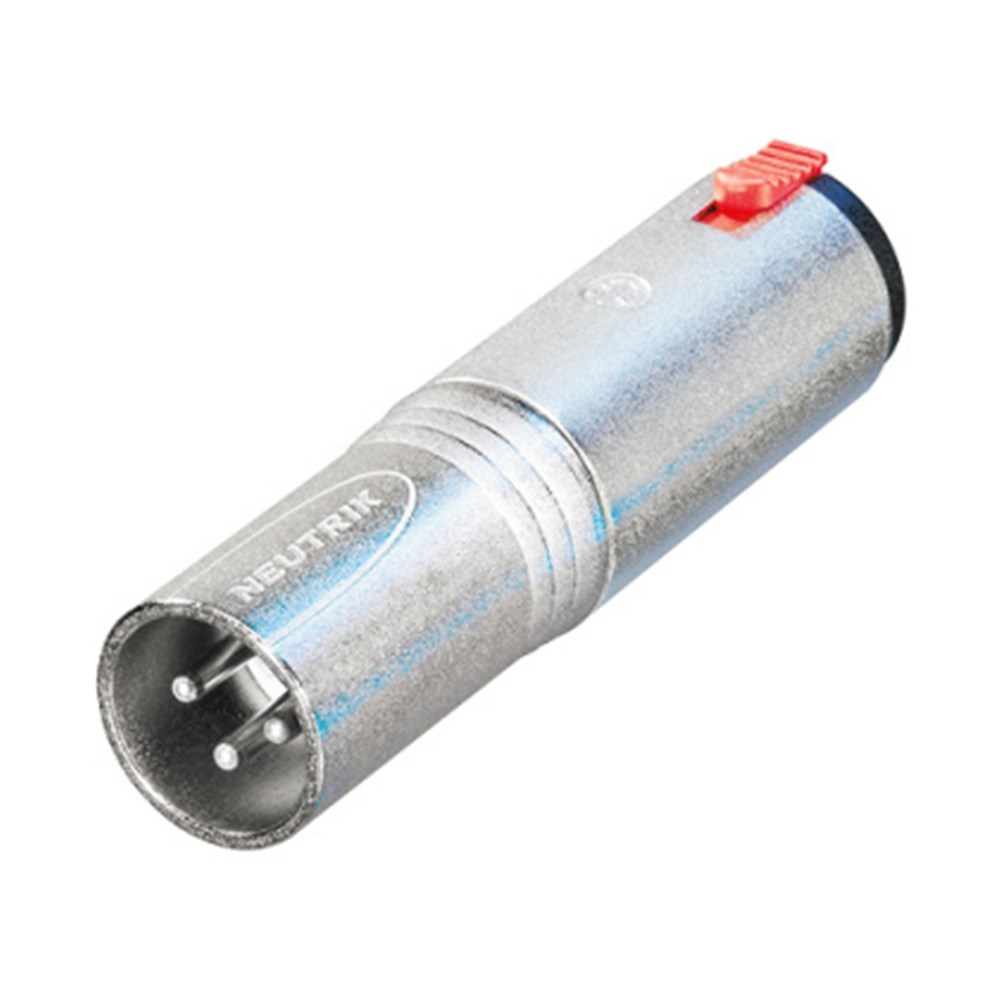

XLR MALE TO STEREO LOCK JACK

Product Code: NU-NA3MJ

Brand
Neutrik
RRP $37.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Adapter Type 6.3mm-XLR
  • Details
  • Downloads

NA3MJ


3 pole XLR male - stereo 1/4" locking jack (Tip, Ring, Sleeve contact)


Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the XX XLR Series
  • Rugged diecast shell for best reliability



Product


Title

  • NA3MJ

Connection Type

  • Adapter

Electrical


Contact resistance

  • ≤ 3 mΩ (XLR)

Contact resistance

  • ≤ 6 mΩ

Dielectric strength

  • 1.5 kV dc / > 1 kVdc (XLR/Jack)

Insulation resistance

  • > 2 GΩ

Mechanical


Locking device

  • Latch lock

Material


Contact plating

  • 2 µm Ag

Contacts

  • Bronze (CuBe2) (jack)

Insert

  • Polyamide (PA 6.6 30 % GR)

Shell

  • Zinc diecast (ZnAl4Cu1)

Shell plating

  • gal Cu/Ni

Environmental


Temperature range

  • -20 °C to +65 °C
