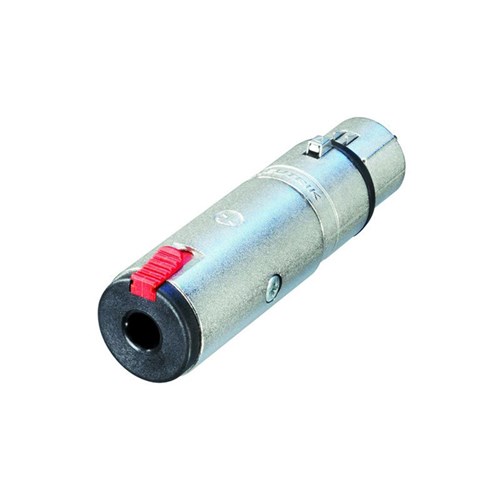

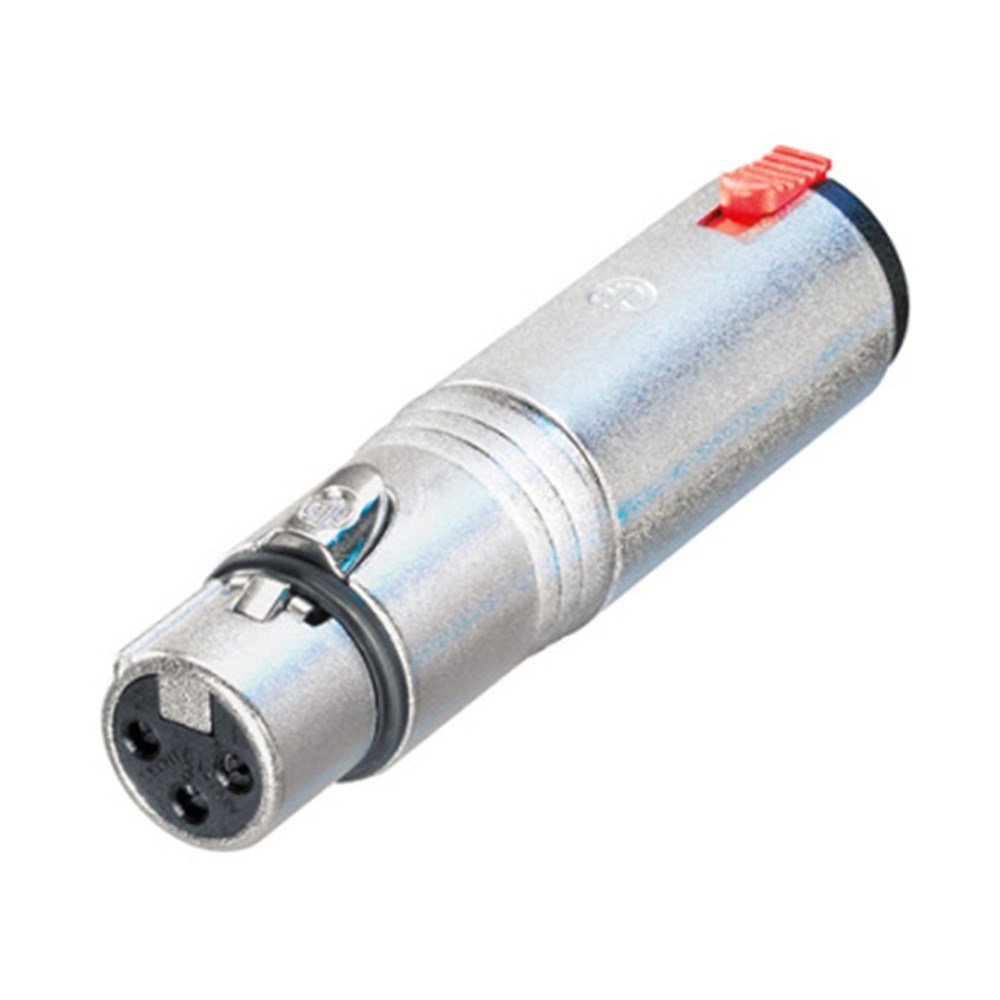

NA3FJ

3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact)

Features & Benefits

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Product

Title

• NA3FJ

Connection Type

• Adapter

Electrical

Contact resistance

• ≤ 3 mΩ (XLR)

Contact resistance

• ≤ 6 mΩ

Dielectric strength

• 1.5 kV dc / > 1 kVdc (XLR/Jack)

Insulation resistance

• > 2 GΩ

Mechanical

Locking device

• Latch lock

Material

Contact plating

• 2 µm Ag

Contacts

• Bronze (CuBe2) (jack)

Insert

• Polyamide (PA 6.6 30 % GR)

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• gal Cu/Ni

Environmental

Temperature range

• -20 °C to +65 °C
