Microphones

This is a Special Order Item

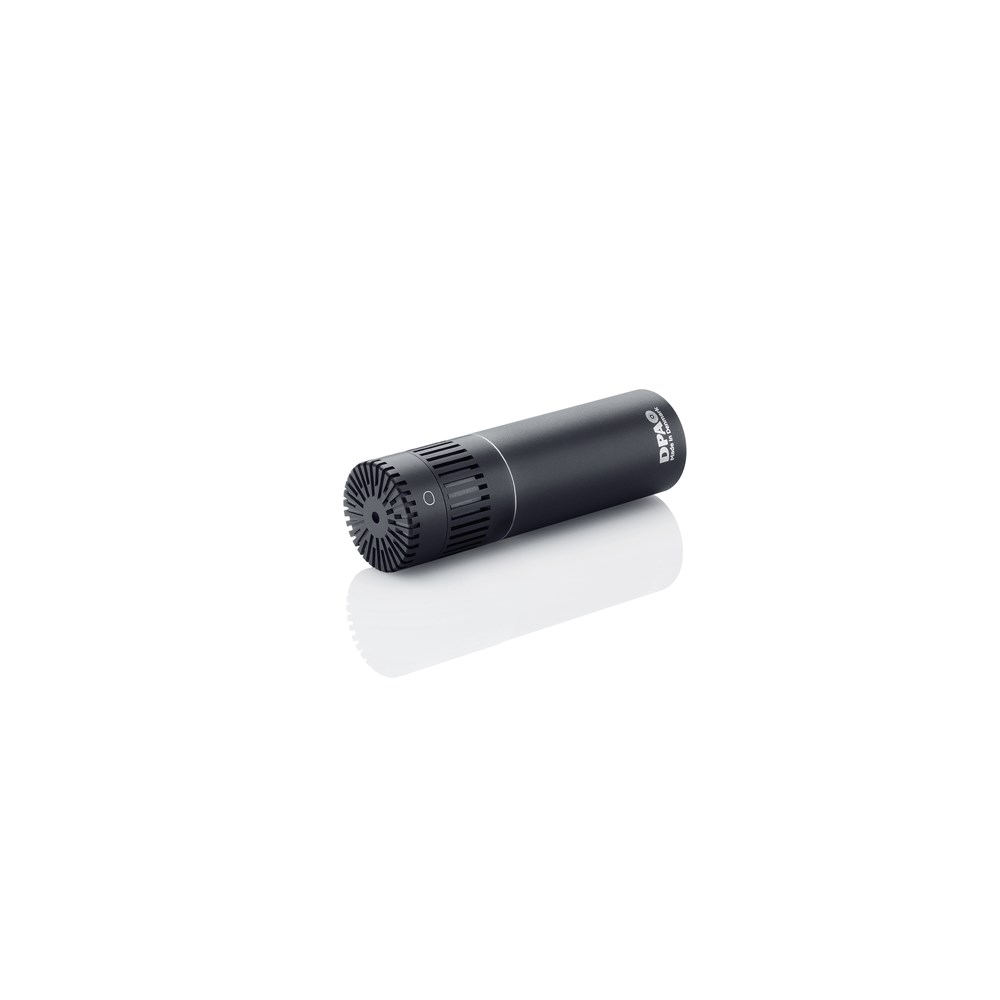

DPA d:dicate™ 4015C Compact Wide Cardioid Mic

Product Code: DP-4015C

Brand
DPA Microphones
RRP $3,615.00


Unit of Measure
EACH


5 Year
Features

Totally linear off-axis characteristics

  • Low profile – wide pickup area
  • Natural reproduction
  • Directional ambience pickup
  • Exceptional for vocals
  • Modular flexibility
This mic is the perfect fill-in between an omnidirectional and a directional microphone.

The off-axis characteristics of this mic are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.
Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Specifications

Directional pattern: Wide Cardioid
Principle of operation: Pressure Gradient
Cartridge Type: Pre-polarized condenser
Frequency range: 20 Hz to 20 kHz
Frequency range, ± 2 dB: 40 Hz to 20 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 139 dB SPL peak
Minimum load impedance: 2 kohm
Dynamic range: Typ. 121dB
Max. SPL, peak before clipping: 152 dB
Output impedance: <200 ohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Color: Matte black
Weight: 58 g (2 oz)
Diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Output voltage, RMS: > 5 V
Microphone Length: 64 mm (2.5 in)
Polarity: +V at Pin 2 for positive sound pressure
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Relative Humidity (RH): Up to 90%
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Matching tolerance: ± 1 dB
Phase deviation for kit: < 10°
