Microphones

This is a Special Order Item

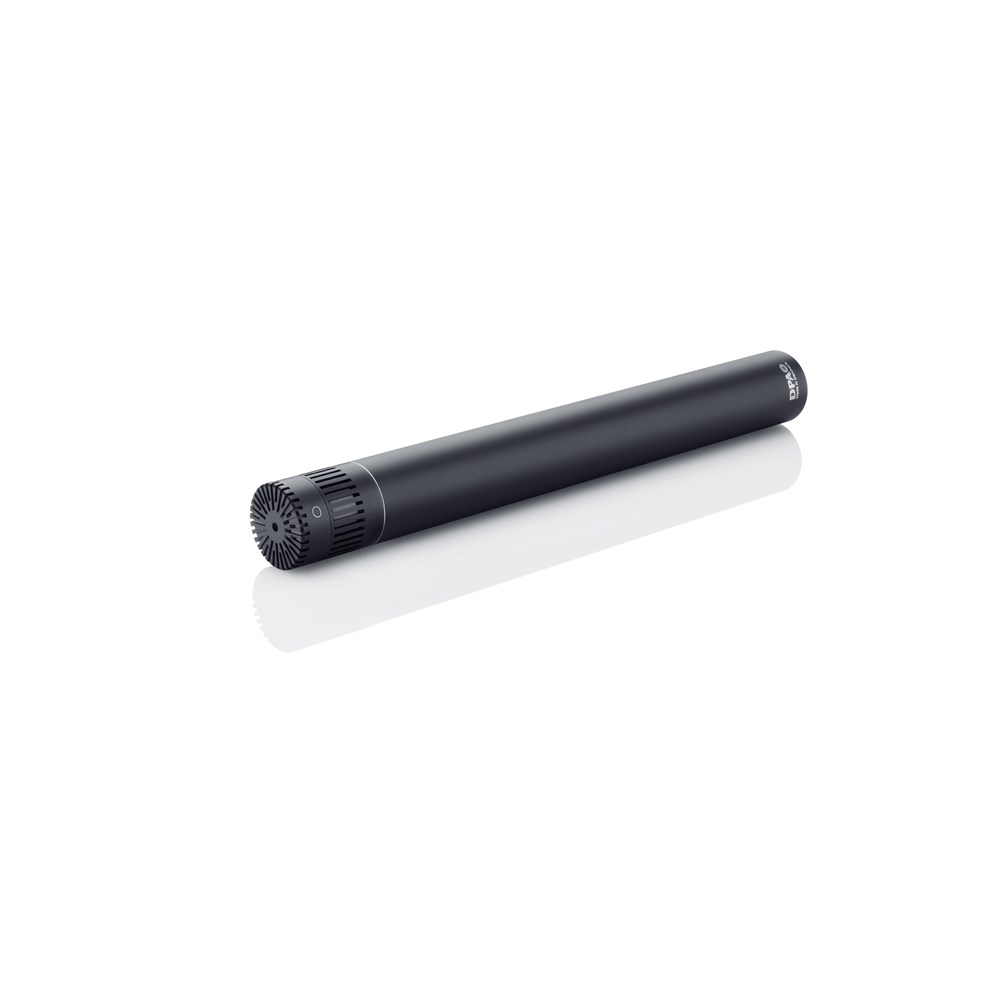

DPA d:dicate™ 4015A Wide Cardioid Mic

Product Code: DP-4015A

Brand
DPA Microphones
RRP $3,945.00


Unit of Measure
EACH


5 Year
Features

Totally linear off-axis characteristics

  • Low profile – wide pickup area
  • Natural reproduction
  • Directional ambience pickup
  • Exceptional for vocals
  • Modular flexibility
This mic is the perfect fill-in between an omnidirectional and a directional microphone.

The off-axis characteristics of this mic are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.
Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Specifications

Directional pattern:                                                                 Wide cardioid
Principle of operation:                                                            Pressure gradient
Cartridge type:                                                                          Pre-polarized condenser
Frequency range:                                                                     20 Hz - 20 kHz
Frequency range, ±2 dB, at 60 cm (23.6 in):                        40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz:                                    10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted:                                      Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4:                                Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):        Typ. 76 dB(A)
Total harmonic distortion (THD):                                           < 1% up to 139 dB SPL peak
Dynamic range:                                                                         Typ. 121 dB
Max. SPL, peak before clipping:                                             159 dB
Switchable attenuator, filters etc.:                                          0 dB / -20 dB
Output impedance:                                                                    200 Ω
Minimum load impedance:                                                      2 kΩ
Cable drive capability:                                                               100 m (328 ft)
Output balance principle:                                                          Impedance balancing with Active Drive
Common mode rejection ratio (CMRR):                                  > 60 dB
Power supply (for full performance):                                       48 V Phantom power (± 4 V)
Current consumption:                                                                2.8 mA
Connector:                                                                                    XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color:                                                                                             Matte black
Weight:                                                                                          158 g (5.6 oz)
Microphone diameter:                                                                19 mm (0.75 in)
Capsule diameter:                                                                       19 mm (0.75 in)
Microphone length:                                                                     170 mm (6.7 in)
Maximum output voltage, RMS:                                                 > 5 V
Polarity:                                                                                          +V at pin 2 for positive sound pressure
Temperature range:                                                                     -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH):                                                                Up to 90%
Matching tolerance (frequency response and sensitivity):    ±1 dB
Phase deviation for kit:                                                                < 10°

Product Documents

No documents available
