DPA Microphones

This is a Special Order Item

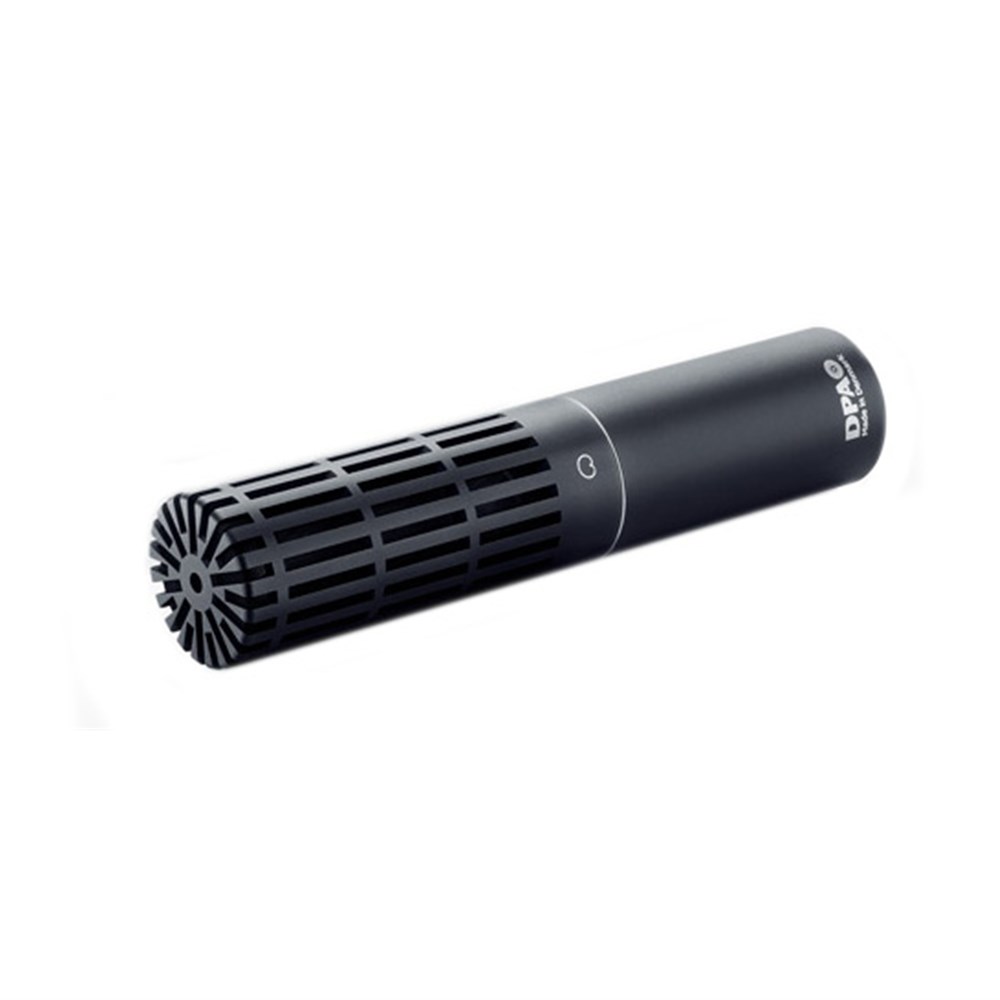

DPA d:dicate™ 2011C Compact Twin Diaphragm Cardioid Mic

Product Code: DP-2011C

Brand
DPA Microphones
RRP $1,969.00


Unit of Measure
EACH


2 Year
Features

Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Distinctive, well-balanced sound

  • Blends clarity, richness and dynamics
  • Twin Diaphragm Capsule Technology
  • Advanced Interference Tube Technology
  • Superb stage separation and level control
  • Modular flexibility

The d:dicate™ 2011 Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of the d:dicate™ Recording Microphone Series and our well-known d:screet™ Miniature Microphone Series.
Two opposite-facing miniature capsules are custom rebuilt inside this microphone. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to the supreme d:dicate™ Microphone series preamps, which gives the sound more air and precision.


Specifications

Directional pattern Cardioid
Principle of operation Pressure gradient, with interference tube
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in) 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted
 Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 33 dB (max. 36 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 74 dB(A)
Total harmonic distortion (THD) < 1% up to 137 dB SPL peak
Dynamic range Typ. 117 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 100 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 50 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 64 g (2.3 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 92 mm (3.6 in)
Maximum output voltage, RMS > 4 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
