JTS Professional Microphones

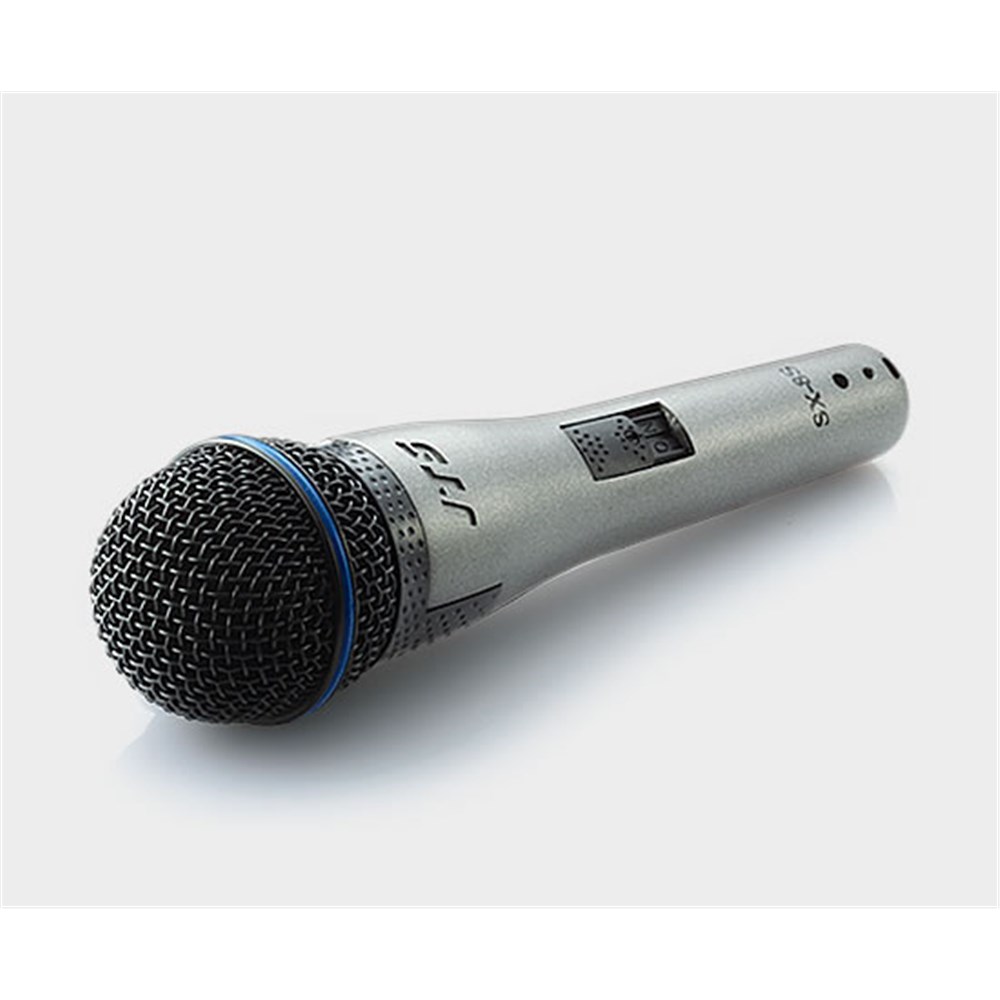

SX-8 with switch for vocals

Product Code: JP-SX8S

Brand
JTS
RRP $209.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

SX-8S


SX-8/SX-8S re-enhance overall performance. SX-8/SX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. Ideal for lead vocal.



SPECIFICATIONS

Type

  • Moving Coil Dynamic

Frequency Response

  • 50~16,500 Hz

Polar Pattern

  • Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

  • -77dB*(0.14mV)*0dB=1V/μbar

Impedance

  • 250Ω

Phasing

  • Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

  • Three-pin professional audio connector (male XLR type)

Case

  • Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille

SX-8S

  • Equipped with Magnetic Reed Switch

Product Documents

No documents available
