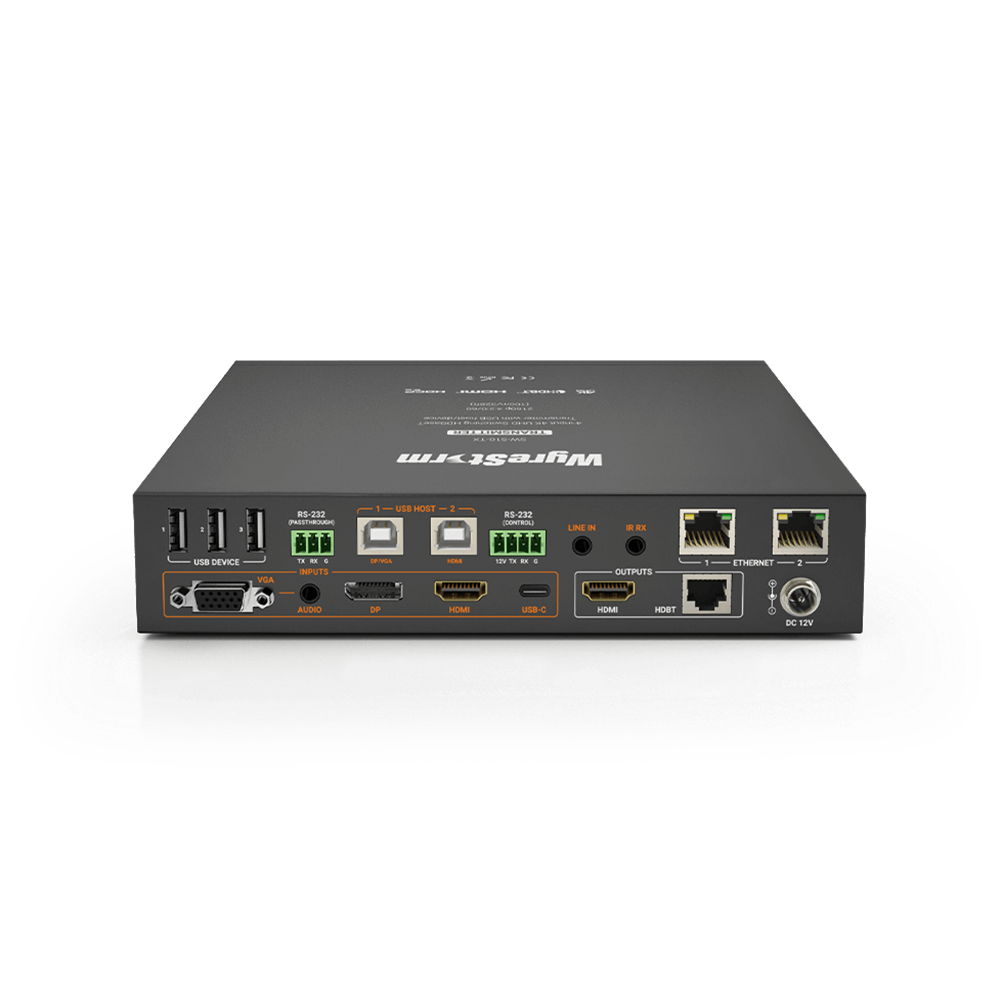

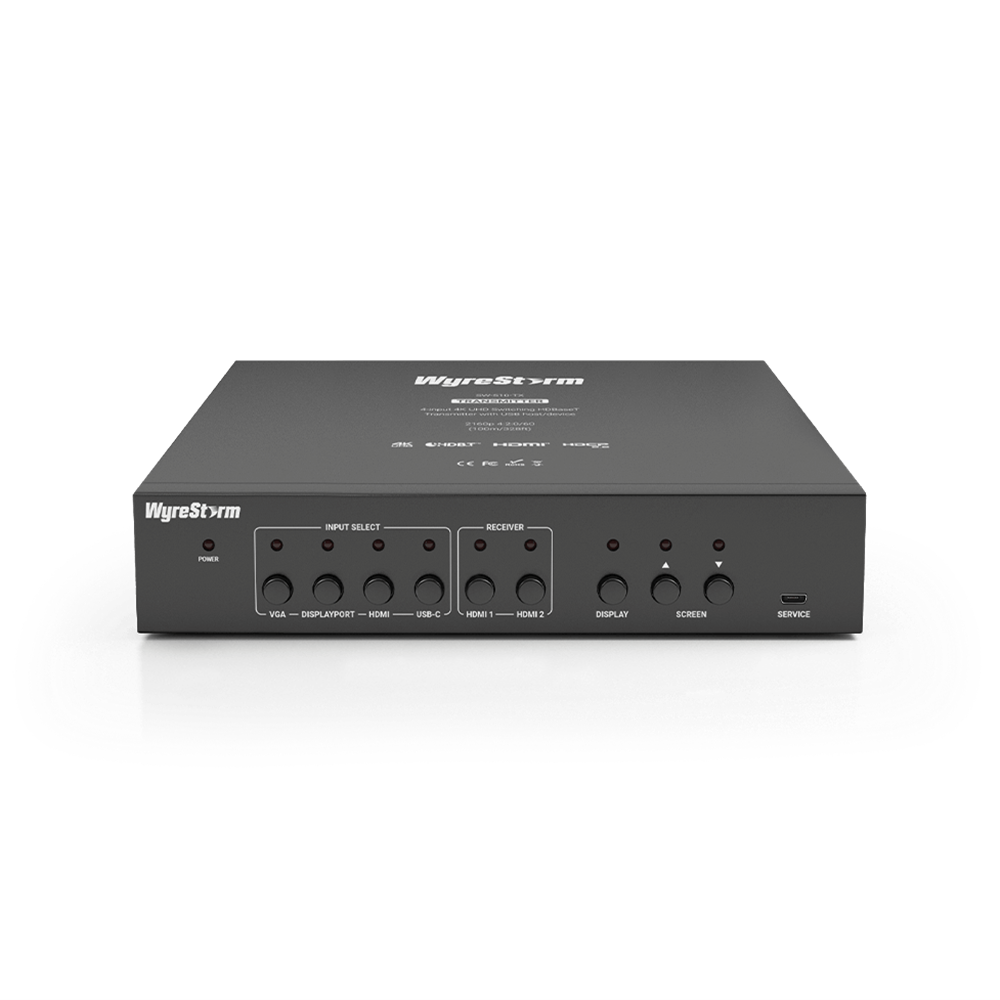

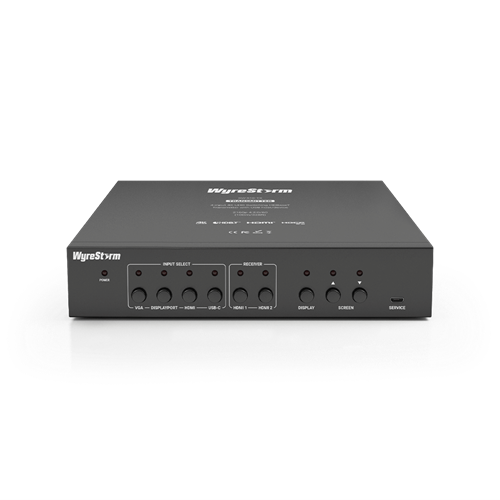

4-Input 4K HDBaseT Switcher with USB

SKU: SW-510-TX

When the next generation of HDBaseT transmission meets WyreStorm’s presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.

• 4-INPUT SWITCHING EXTENDER
  A new flagship in our PRO range and a first for our switching extenders, the SW-510-TX brings a wide range of premium features into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Proudly carrying the H2 moniker, it will support 4K content and even HDCP2.2 protected content.
• ADDITIONAL RECEIVER INPUTS
  When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.
• TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER
  With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.
• USB 2.0 PASS-THROUGH
  HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.

Features

• Professional switching transmitter for education or corporate meeting rooms
• Automatic or manual switching between HDMI, VGA, DisplayPort and USB-C inputs
• Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
• USB-C input supports Alt-mode functionality for AV and USB device connection through a single cable
• Automatic or manual CEC triggering for compatible connected screens or projectors
• Supports source content up to 4K/60 4:2:0 with HDCP 2.2

Specifications

AUDIO AND VIDEO

• Inputs:
  • 1x VGA In: 15-pin VGA
  • 1x Display Port In: DisplayPort 1.3
  • 1x HDMI In: 19-pin type A
  • 1x Audio In: 3.5mm (1/8in) TRS Stereo
  • 1x Line In: 3.5mm (1/8in) TRS Stereo
• Outputs:
  • 1x HDMI Out: 19-pin type A
  • 1x HDBT Out: 8-pin RJ-45 Female
• Output Video Encoding:    HDBaseT™ Class C
• Encoding Data Rate:    9.2Gbps
• End to End Latency:    10μs (micro seconds)
• Audio Formats:    2ch Analog/PCM | Multichannel: LPCM

• Supported Standards:    DCI | RGB
• Maximum Pixel Clock:    297MHz

COMMUNICATION AND CONTROL

• HDMI:    HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• HDBaseT™:    HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
• RS-232:    1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
• Ethernet:    2x 8-pin RJ-45 female | Bidirectional over HDBaseT™
• IR:    1x IR RX: 3.5mm (1/8in) TS Mono
• USB:    1x USB-C: USB 3.1 Audio/Video2x USB Host: USB-B | 3x USB Device: USB-A

POWER

• Power Supply:    12V DC 2A
• Max Power Consumption:    14.02W

ENVIRONMENTAL

• Operating Temperature:    0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature:    -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
• Maximum BTU:    56.3BTU/hr
• Rack Units | Wall Box:    <1U
• Height With | Without Feet:    44.5mm/1.76in | 42mm/1.66in
• Width With | Without Brackets:    263mm/10.36in | 220mm/8.67in
• Depth With | Without Handles:    148.7mm/5.86in | 148.7mm/5.86in
• Weight:    0.97kg/2.13lbs

REGULATORY

• Safety and Emission:    CE | FCC | RoHS
