Cables and Connectors

This is a Special Order Item

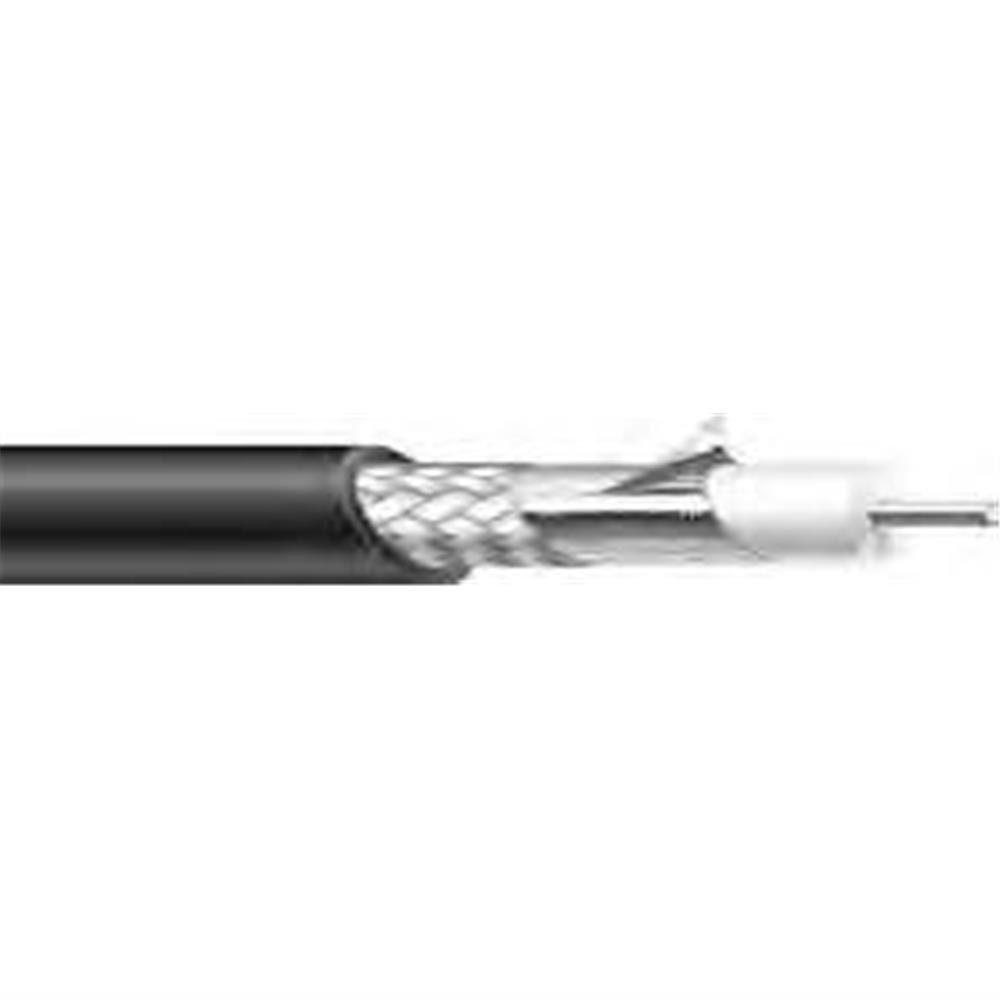

75O Super Low Loss Coax. HD Cable Nom OD 4.2mm Canare AIR FREIGHTED

Product Code: CA-L-2.5CHD-B100

Brand
Canare
RRP $280.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Coax
  • Details
  • Downloads

75 ohm Digital Video Coaxial Cable Super Low Loss Coax (Highly-Foamed PE Insulation) (L-CHD Series)


Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Supper Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.

  • HD-Serial Digital Video.
  • Satellite Head Ends.
  • HDTV Upgrades.
  • Broadband Facilities.
  • SMPTE 259M, 292M,424M.
  • Best suited to 3G-SDI / HD-SDI transmission.
  • Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
  • Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
  • Tinned copper braid with aluminum foil brings excellent shielding.
  • L-2.5CHD is ideal for internal rack wiring.
  • Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD).

Model

Std. Lng.

 Nom.
O.D.		 Wt
Std. Lng.		 Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm		 Inner
Cond
O.D.
in.
(mm)		 Insulation
O.D.
in.
(mm)		 Outer Conductors
Shield Coverage
& Comp.		 Inner
Cond.
Resistance
ohm/mile
(ohm/km)		 Outer
Cond.
Resistance
ohm/mile
(ohm/km)

Static
Capacity

(pF/m)

Characteristic
Impendence

ohm

Attenuation
dB/100m(328ft)

750MHz)
L-2.5CHD 100M 4.2mm 2.6 (kgs)/100m (23)
1/0.59A		 0.02
(0.59)		 0.10
(2.59)		 0.12TA/7/16
(95% or more)		 39.95
(64.3)		 10.5
(16.9)		 53 75 30.2
