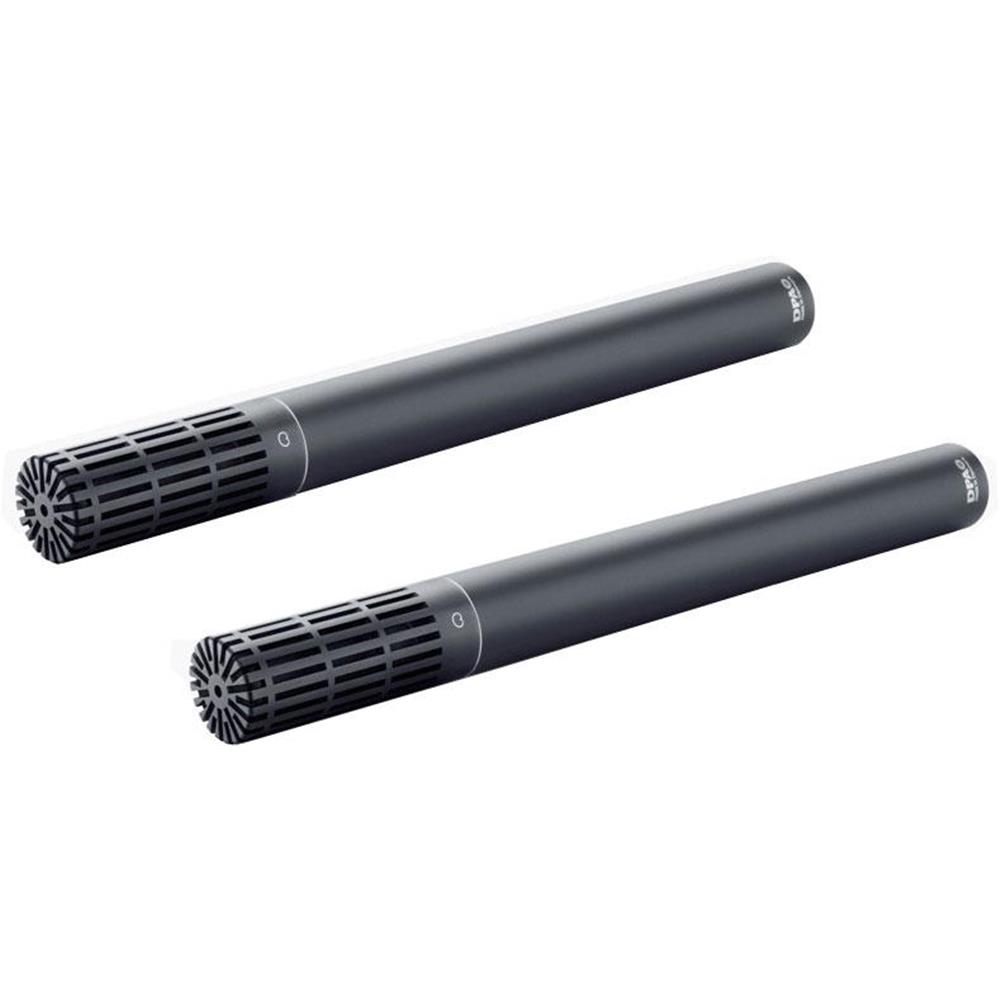

Name: DPA d:dicate™ 2011A Stereo Pair with Clips and Windscreens in Peli Case
Price: 3265.5 NZD

This is a Special Order Item

Specifications

Directional pattern	Cardioid
Principle of operation	Pressure gradient, with interference tube
Cartridge type	Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range	20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)	50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz	10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 33 dB (max. 36 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 74 dB(A)
Total harmonic distortion (THD)	< 1% up to 137 dB SPL peak
Dynamic range	Typ. 117 dB
Max. SPL, peak before clipping	153 dB
Switchable attenuator, filters etc.	0 dB / -20 dB
Output impedance	200 Ω
Minimum load impedance	2 kΩ
Cable drive capability	100 m (328 ft)
Output balance principle	Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)	> 60 dB
Power supply (for full performance)	48 V Phantom power (± 4 V)
Current consumption	2.8 mA
Connector	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color	Matte black
Weight	164 g (5.8 oz)
Microphone diameter	19 mm (0.75 in)
Microphone length	198 mm (7.8 in)
Maximum output voltage, RMS	> 5 V
Polarity	+V at pin 2 for positive sound pressure
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%

Brands	DPA Microphones
Series	d:dicate

DPA Microphones

DPA d:dicate™ 2011A Stereo Pair with Clips and Windscreens in Peli Case
