JP-RU850LTHB4

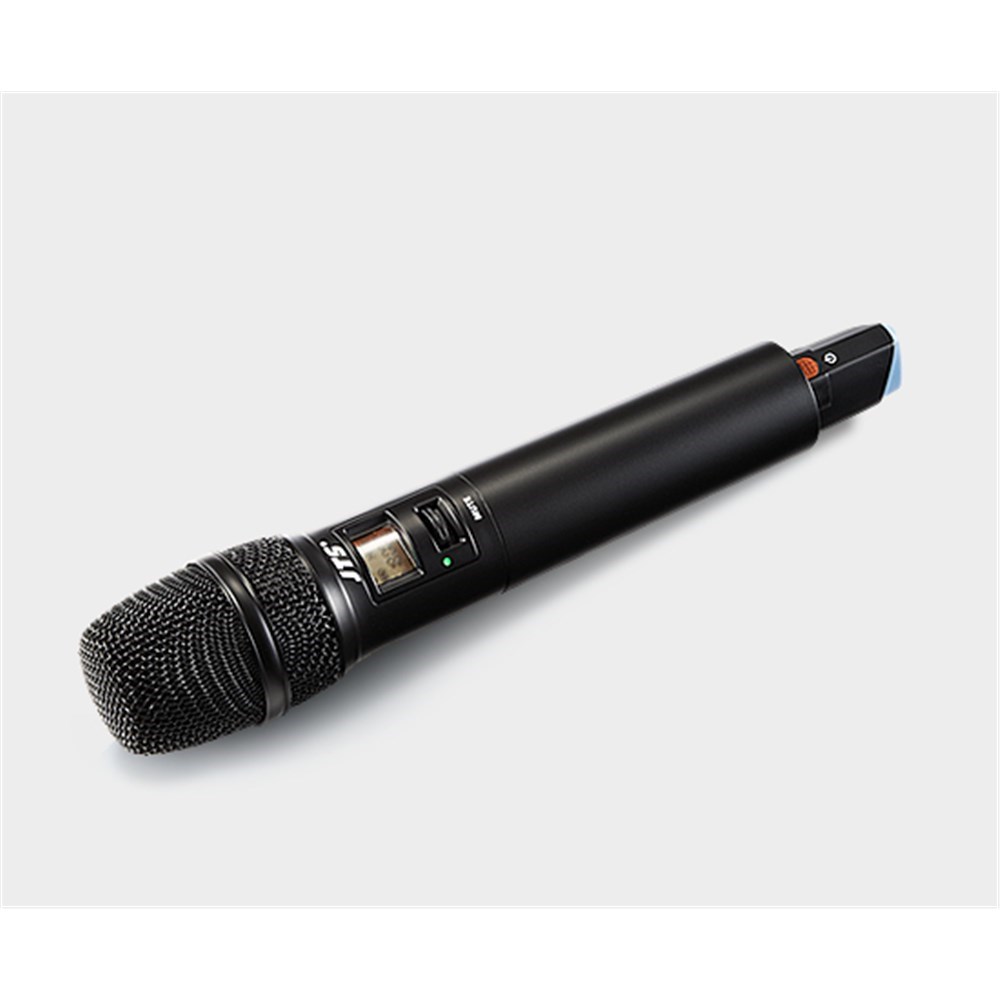

RU-850LTH handheld transmitter, 638-674MHz, with dynamic capsule, for 8011DB/8012DB systems

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-674MHz

Frequency Setting

• REMOSET U(Receive)

RF Outpus

• Low / High

Stability

• <±10KHz@Fc

Frequency Deviation

• ±48KHz

Spurious Emissions

• <-50dBc

Function

• Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

• LCD+LED

Controls

• Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

• UM3, AA x2
