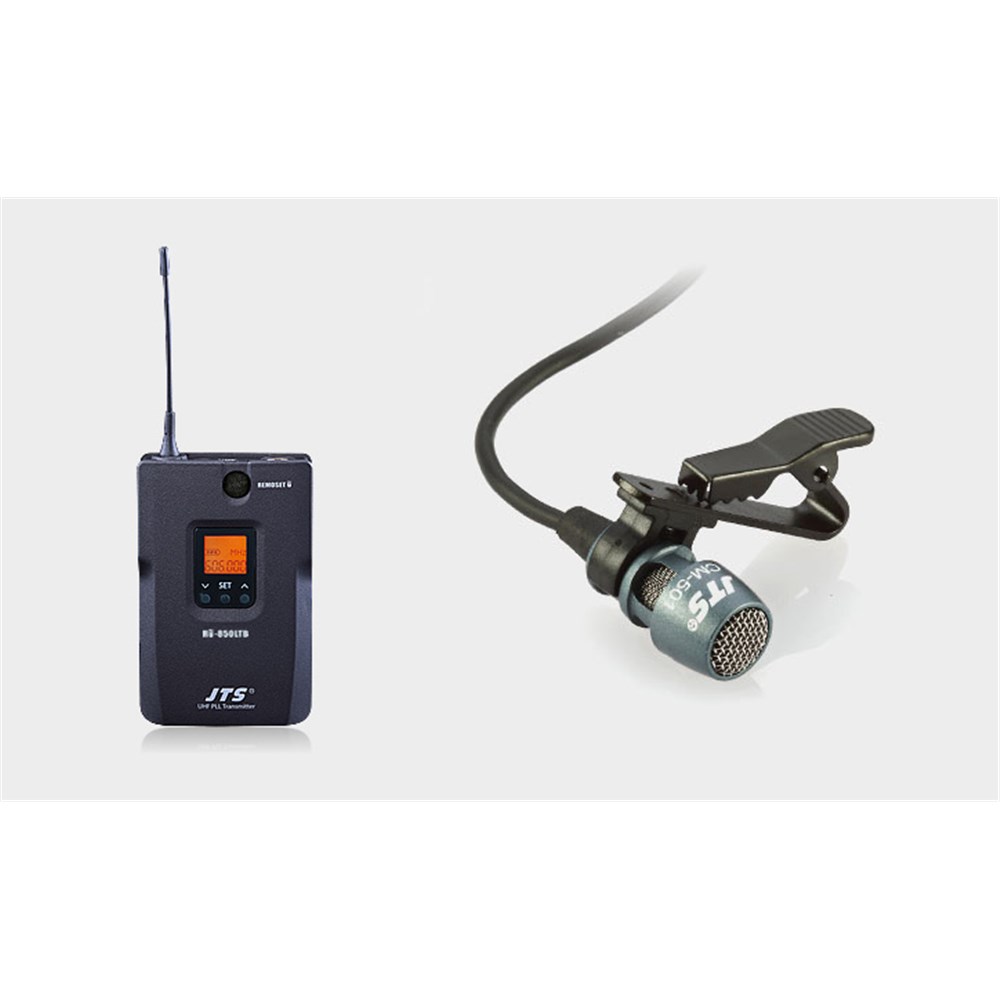

RU-850LTB

This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system.

SPECIFICATIONS

Frequency Preparation

• PLL Synthesized Control

Carrier Frequency Range

• 638-674MHz

Frequency Setting

• REMOSET U(Receive)

RF Outpus

• Low / High

Stability

• <±10KHz@Fc

Frequency Deviation

• ±48KHz

Spurious Emissions

• <-50dBc

Function

• Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display

• LCD + LED

Input Connector

• 4P Mini XR

Controls

• Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock

Battery

• UM3, AA x2

CM-501

• Uni-direction for high-quality voice pick-up.
• Wide dynamic range and frequency response for excellent sound reinforcement.
• Small size for minimum visibility.
• Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS

Connector

• 4P Mini XLR

Frequency Response

• 100~15,000 Hz

Polar Pattern

• Cardioid

Sensitivity (at 1KHz)

• -60±3 dB* (1mV)*0dB=1V/μbar

Impedance

• 2.2kΩ

Max. SPL for 1% THD

• 130dB

Dimension(mm)

• Ø10.1mm(W)* 26.4mm(H)

Net Weight

• 21.5g
