Microphones

This is a Special Order Item

R4-TB transmitter belt-pack inc CM-501 lapel mic for R-4 system

Product Code: JP-R4TBB1

Brand
JTS
RRP $479.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads
  • Ordering

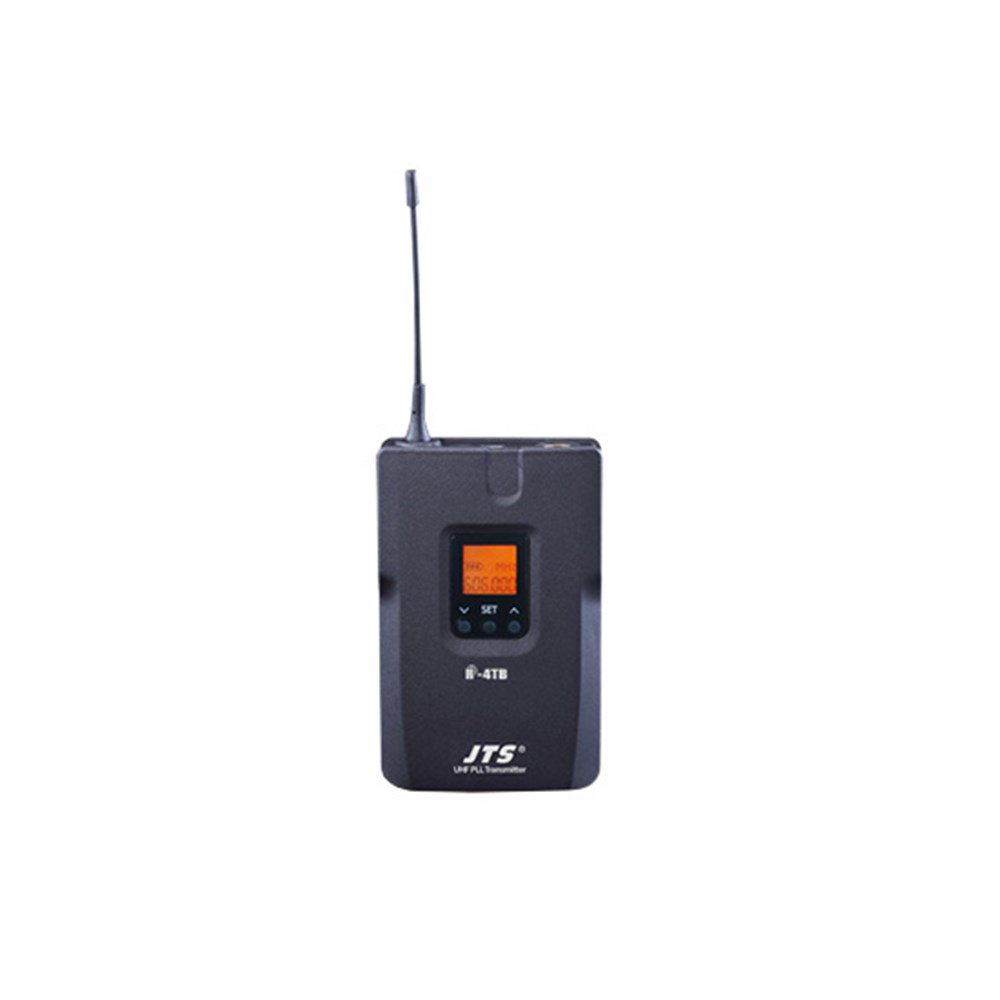

R-4TB

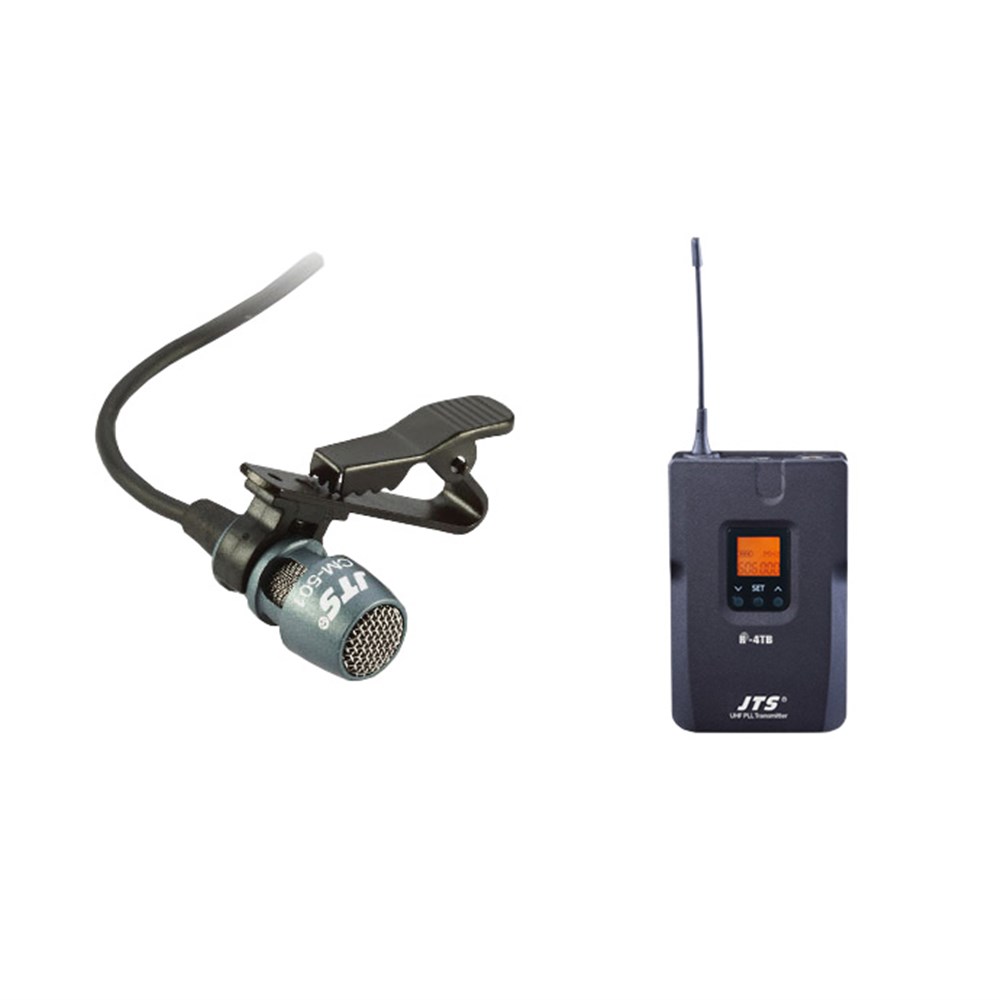

 R4-TB transmitter belt-pack inc CM-501 lapel mic for R-4 system

R-4TB

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

NEWEST FEATURE:

  • It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



SPECIFICATIONS

Frequency Preparation

  • PLL Synthesized Control

Carrier Frequency Range

    • B1: UHF 520~556 MHz
    • B4: UHF 638~674 MHz

Bandwidth

  • 108MHz Wideband

RF Outputs

  • Low / High

Stability

  • < ±10KHz

Frequency Deviation

  • ± 48KHz (Peak)

Chassis

  • Plastic

LCD Display

  • Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust

Controls

  • Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Output Connector

  • 4P Mini XLR

Spurious Emissions

  • <-50 dBC

Audio Frequency Response

  • 50Hz ~ 18k Hz

Battery

  • UM3, AA x2

Dimensions

  • 62.3mm (W) x97.5mm (H) x20mm (D)

Weight

  • 75g

Notes

  • Actual product specifications may vary depending on model and region.

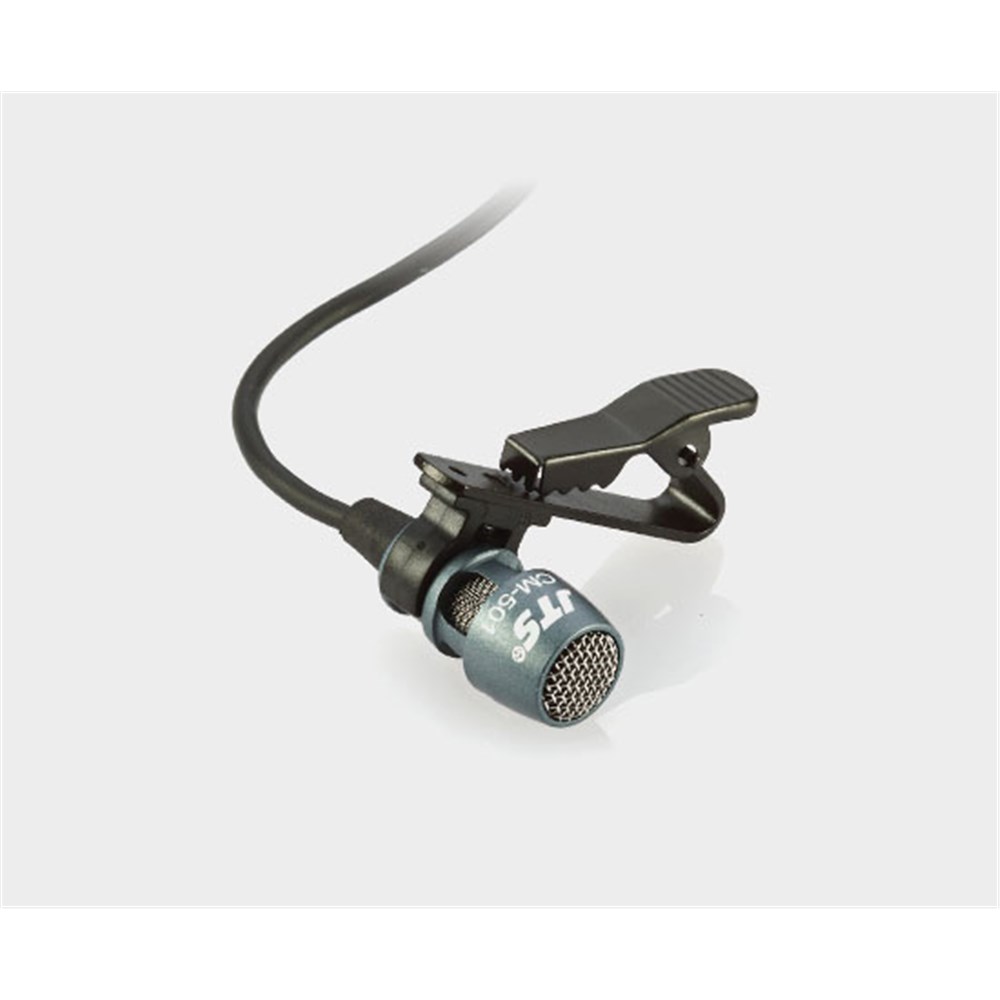

CM-501
Uni-direction for high-quality voice pick-up.
Wide dynamic range and frequency response for excellent sound reinforcement.
Small size for minimum visibility.
Together with clip for easy attaching to a tie, lapel, dress etc.
SPECIFICATIONS

Connector

4P Mini XLR

Frequency Response

100~15,000 Hz

Polar Pattern

Cardioid

Sensitivity (at 1KHz)

-60±3 dB* (1mV)*0dB=1V/μbar

Impedance

2.2kΩ

Max. SPL for 1% THD

130dB

Dimension(mm)

Ø10.1mm(W)* 26.4mm(H)

Net Weight

21.5g
