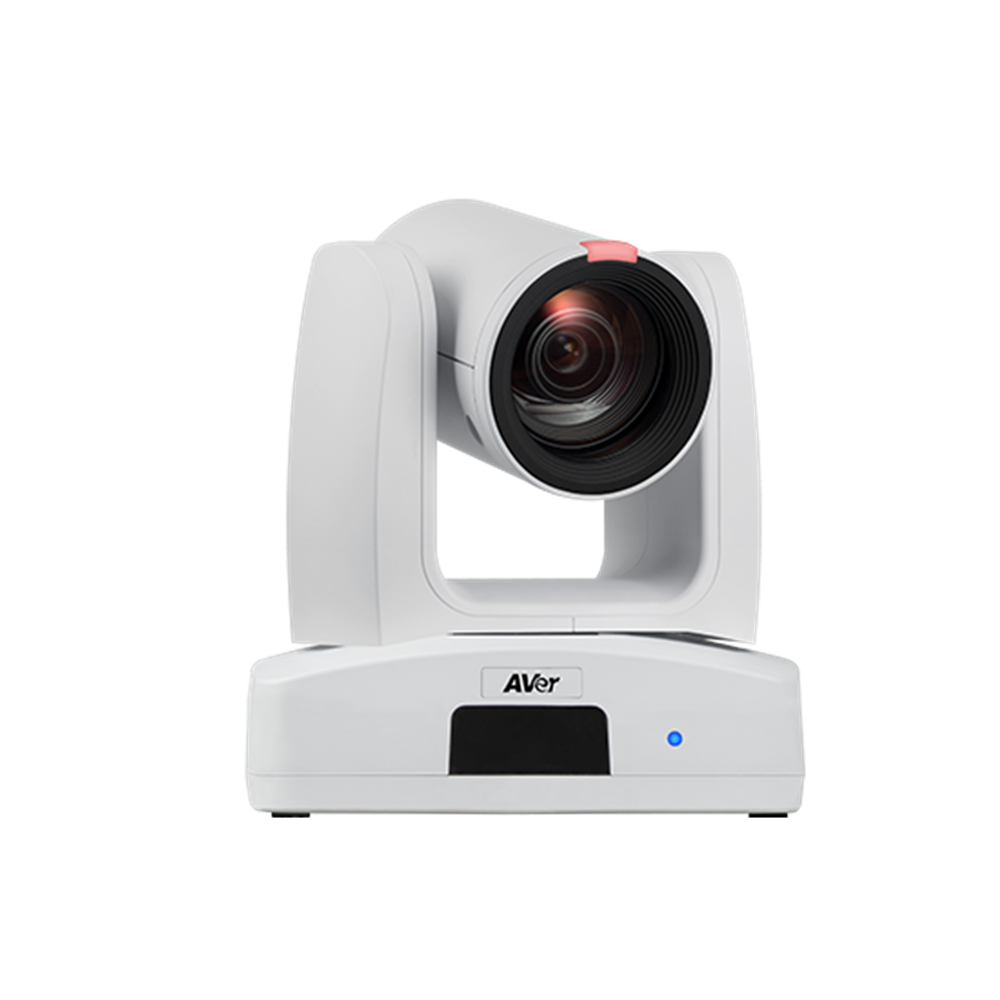

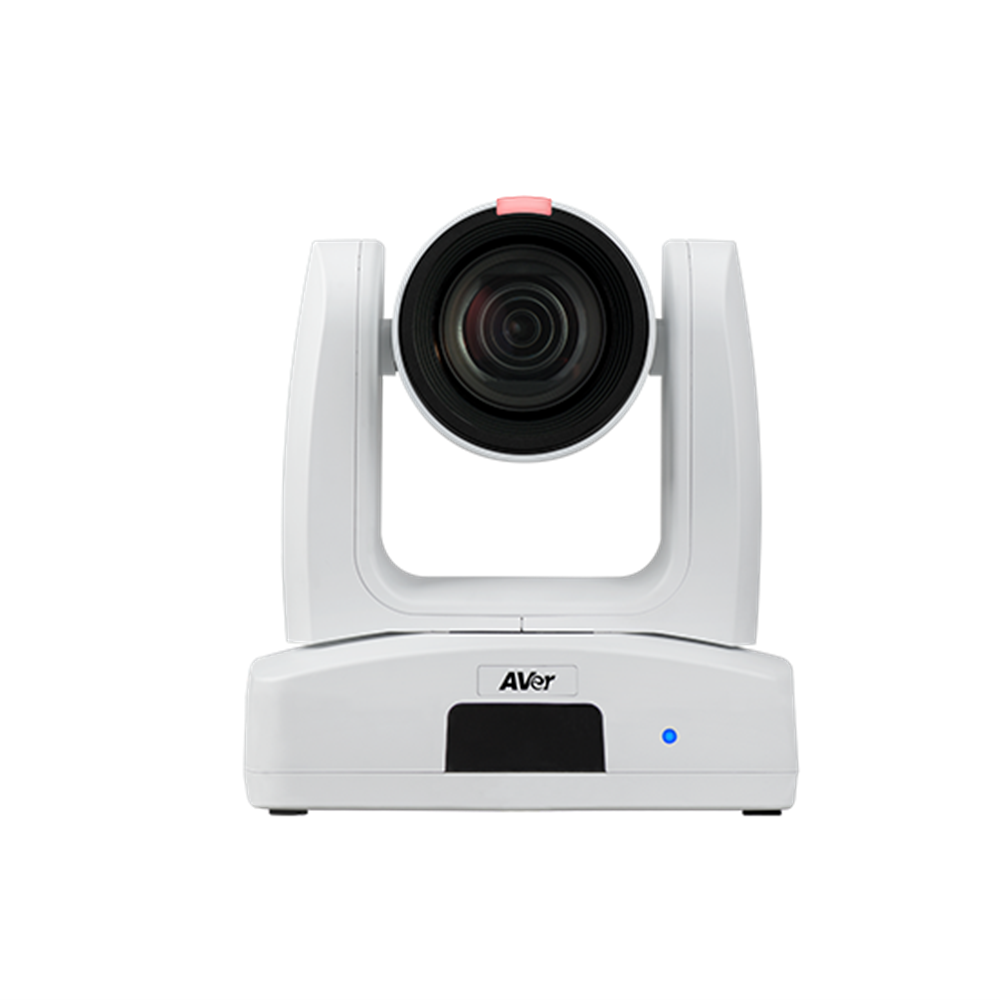

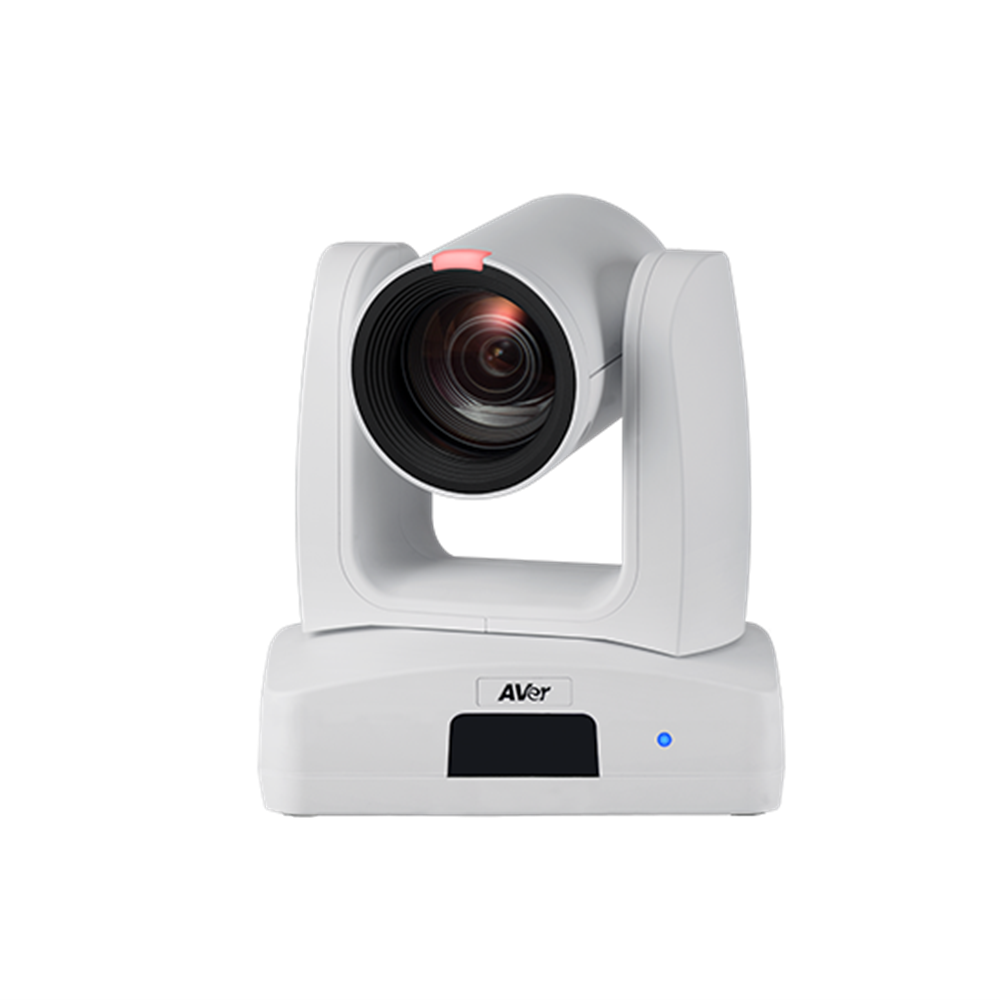

PTZ330UNV2

Perfect Streams with NDI® HX3

NDI®|HX3 PTZ Camera

Stream like a pro with AVer’s latest NDI®|HX3 PTZ Camera! Get superior 4K 60 fps streaming through HDMI, USB, and IP outputs. And with a 30X optical zoom lens and embedded intelligent SmartShoot technology, you’ll have the flexibility to capture every detail of your presentation in perfect clarity. Upgrade your streaming experience today with the PTZ330UNV2!

NDI®|HX3
60 fps
4K Ultra HD
30X Optical Zoom
SmartShoot
HDMI/USB/IP/3G-SDI Outputs
Superior Camera Motion
Intuitive Web UI

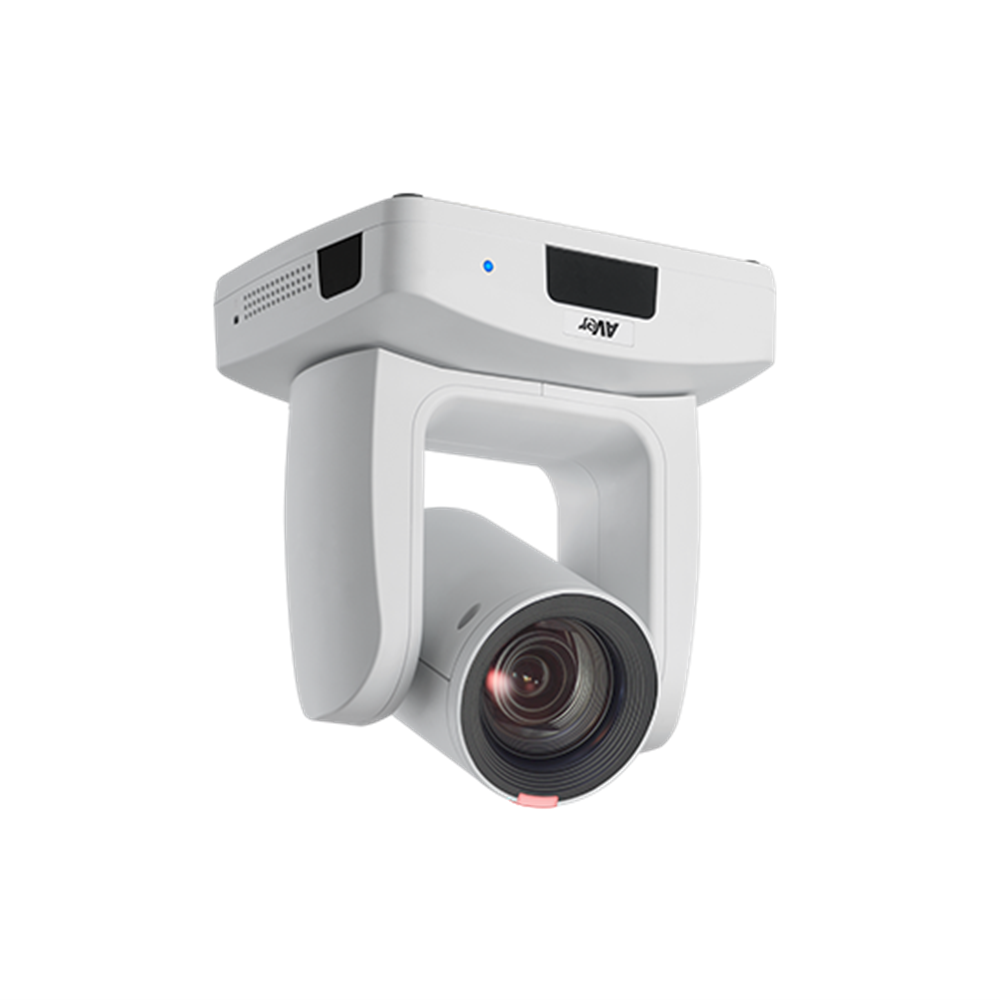

Upside-Down Installation
Voice Tracking*

NDI® is a registered trademark of Vizrt NDI AB.

NDI® is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI® can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.

NDI® HX3 Compatible.
The Latest and Greatest
Revolutionize your streaming with PTZ330UNV2's NDI® HX3 technology! Enjoy lossless, low-latency video streaming without the hassle of a complicated setup. Experience the convenience of pan, tilt, and zoom functions. Get your hands on this next-generation tech and take your streaming to the next level!

30X Optical Performance.
Harness the Power of Zoom
The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you'll never miss a moment of any occasion.

4K Ultra HD.
A New Level of Clarity
With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UNV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

HDMI/USB/IP + 4K 60 fps.
Smoother Streams
NDI® has praised the PTZ330UNV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

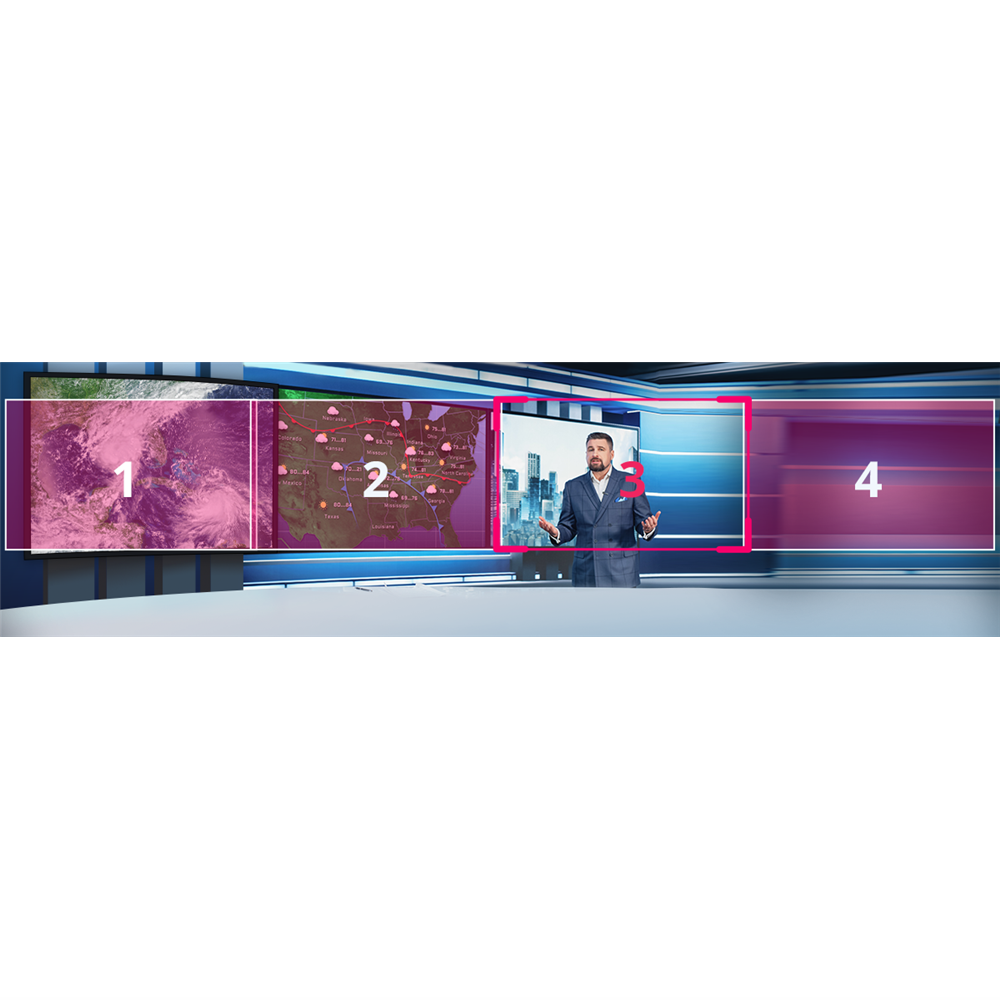

SmartShoot.
Keep People and Content in Focus
With embedded SmartShoot, the PTZ330UNV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

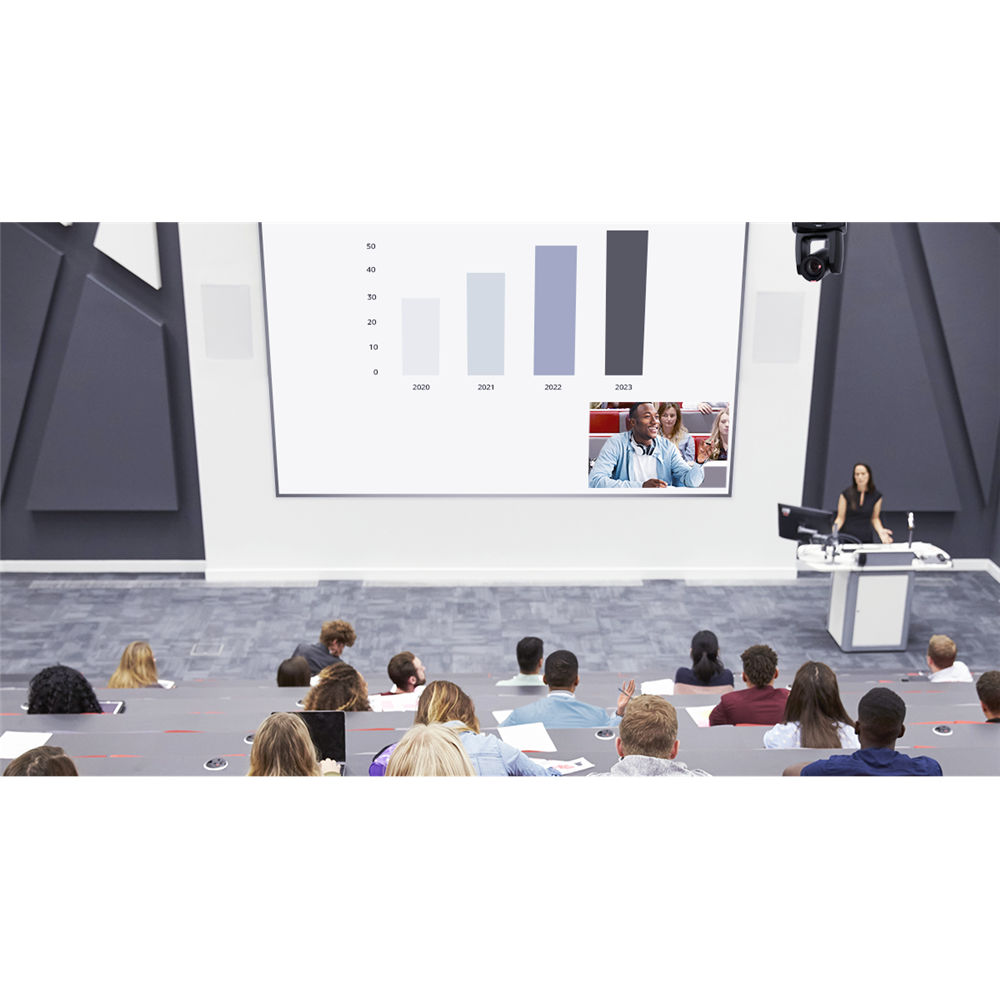

PTZ Link.
Bring Voice Tracking to PTZ Cameras
PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifications

Camera
Image Sensor: 1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements: 8 Megapixels
Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio: ≥ 50 dB
Gain: Auto, Manual
TV Lines: 1400 (Center/Wide)
Shutter Speed: 1/1 to 1/32,000 sec
Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance: Auto, Manual, ATW, One Push
Optical Zoom: 30X
Digital Zoom: 12X
Total Zoom: 360X
Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°
Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec
Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
Camera Control - Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
Camera Control - Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
Power Frequencies: 50 Hz, 60 Hz

AI Function

Mode: SmartShoot

Audio

Channels: 2ch Stereo
Codecs: AAC-LC

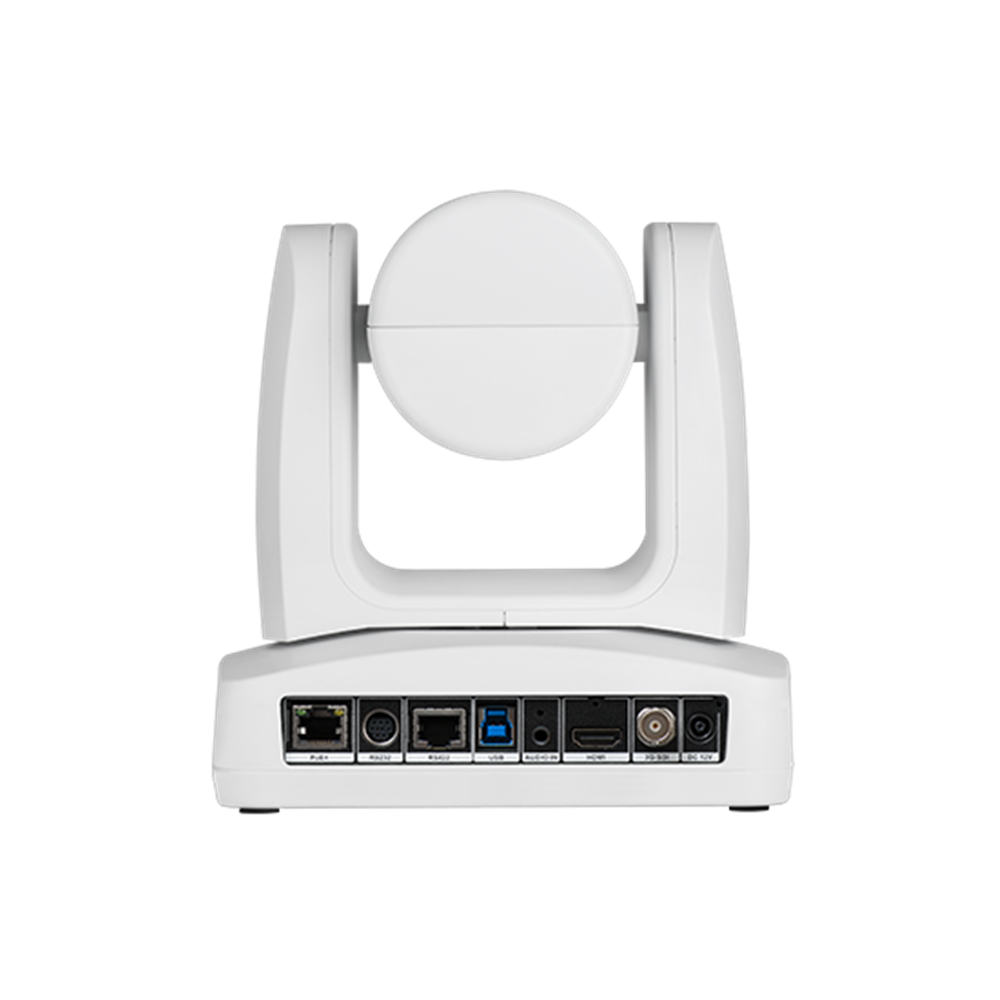

Interface

Video Outputs: 3G-SDI, HDMI, IP, USB
Audio Outputs: 3G-SDI, HDMI, IP, USB
Audio Inputs: MIC in, Line in

General

Power Requirement: AC 100 - 240V to DC 12V/2A
Power Consumption: 19W
PoE: PoE+
Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
Net Weight: 2.0 (±0.1) kg
Application: Indoor
Tally Lamp: Yes
Security: Kensington Slot
Remote Control: Infrared
Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution: 4K 60fps
Network Video Compress Formats: H.264, H.265, MJPEG
Maximum Frame Rate: 4K 60fps
Bit-Rate Control Modes: VBR, CBR (selectable)
Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
Network Interface: 10 / 100 / 1000 Base-T
Multi-Stream Capability**:
- 5
- 4K 60fps: RTSP, HDMI, USB & NDI® HX
- 1080p 60fps: 3G-SDI
Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
NDI®|HX3: Yes
NDI® Genlock: Yes (available in Q3)

USB

Connector: USB 3.1
Video Formats: MJPEG, YUY2
Maximum Video Resolution: 2160p
USB Video Class (UVC): UVC 1.1
USB Audio Class (UAC): UAC 1.0

Web UI

Live Video Preview: Yes
Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment: Exposure, White Balance, Picture
Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search and Configuration Tool: Support Windows® 7 or later
PTZ Management: Support Windows® 7 or later
PTZ Control Panel: Supports iOS & iPadOS® 11 or later
PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Camera: 5 Years
Accessories: 1 Year
Package Contents: Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount
