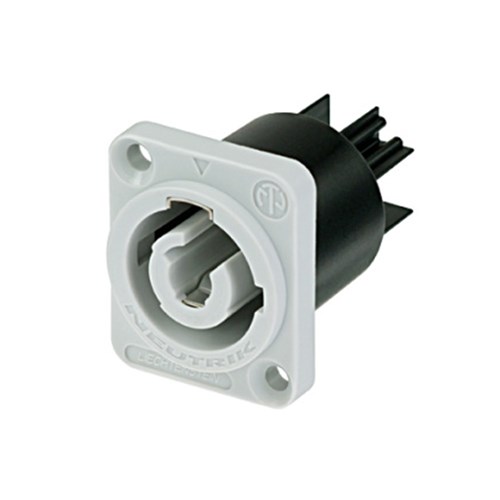

NAC3MPB-1

Chassis connector, power-out, 3/16'' flat tab terminals, grey

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits

• Locking 20 A / 250 V ac appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling
• UL, cUL recognized components
• VDE certified
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications

Product

Title

• NAC3MPB-1

Gender

• male

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 4 kVdc / 2.8 kVac

Insulation resistance

• > 0.1 GΩ (after damp heat test IEC 68-2-30)

Number of electronical contacts

• 2 + PE

Rated current per contact

• 20 A rms

Rated voltage

• 250 V ac

Mechanical

Lifetime

• > 1000 mating cycles

Locking device

• Quick Lock

Mounting direction

• Front mounting

Chassis shape

• D

Material

Contact plating

• 2 µm Ag

Locking element

• Steel Ck67

Shell

• Polyamide (PA 6.6 30 % GR)

Contacts

• Bronze (CuNi1Si0.2)

Environmental

Flammability

• UL 94 V-0

Temperature range

• -30 °C to +80 °C

Product specific

Coding

• B-type for power outlet (color coding gray)
