EXP-CAB-HAOC-4

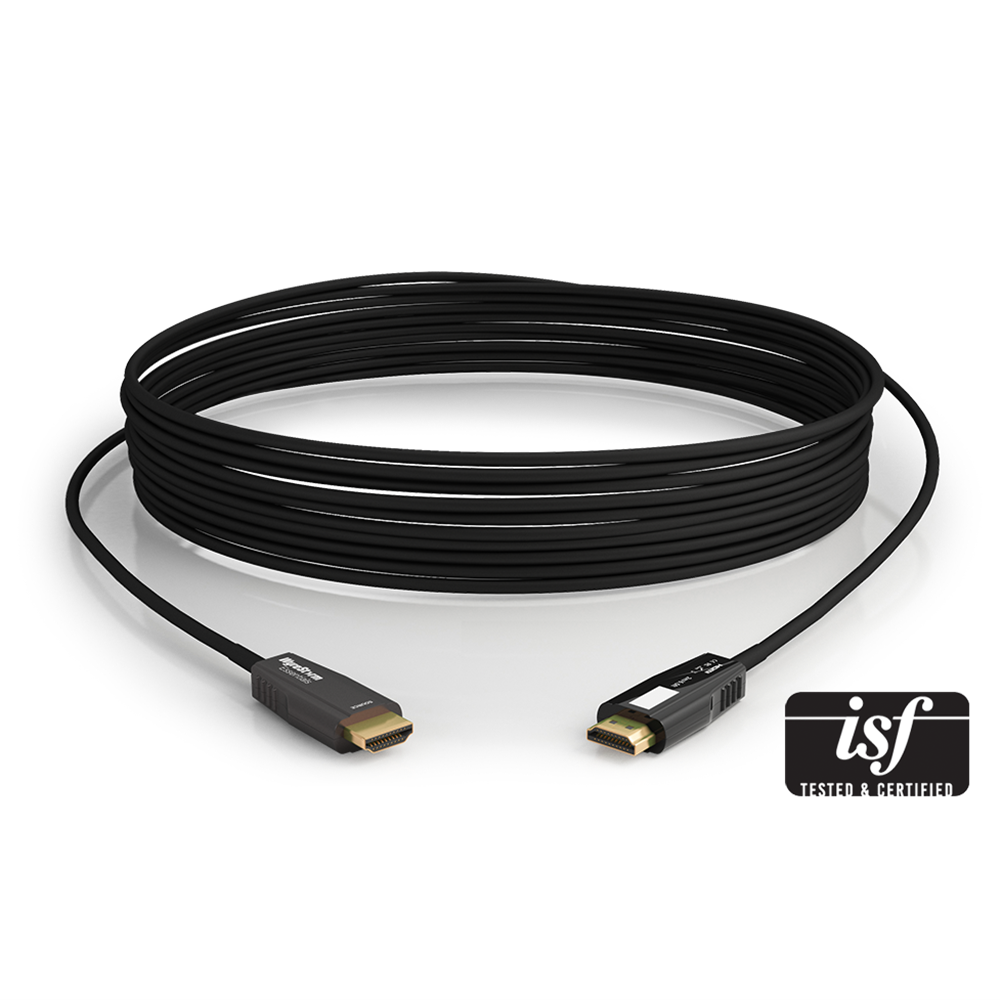

24Gbps 4-Core Active Optical HDMI Cable | 4K HDR 4:4:4/60, ARC, CEC, ALLM & VRR | Kevlar strengthened | ISF Certified

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication, thanks to their ability to be a passive communication technology compared to normal HDBaseT™ extenders that often terminate the HDMI signal prior to transmission.

Features

• Uncompressed optical transmission of HDMI content up to 24Gbps:
  • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
  • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
  • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
• Compatible with all current and emerging HDR standards at up to 60Hz:
  • HLG (Hybrid Log Gamma)
  • HDR-10 and HDR-10+
  • Dolby Vision
  • PQ (Perceptual Quantizer)
  • SL-HDR-1
• Ready for future HDCP 2.3 content encryption
• True native HDMI communication ensures CEC and ARC communication between compatible devices
• Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
• Perfect for use in environments with excessive EM or RF interference
• Kevlar protected communication cores

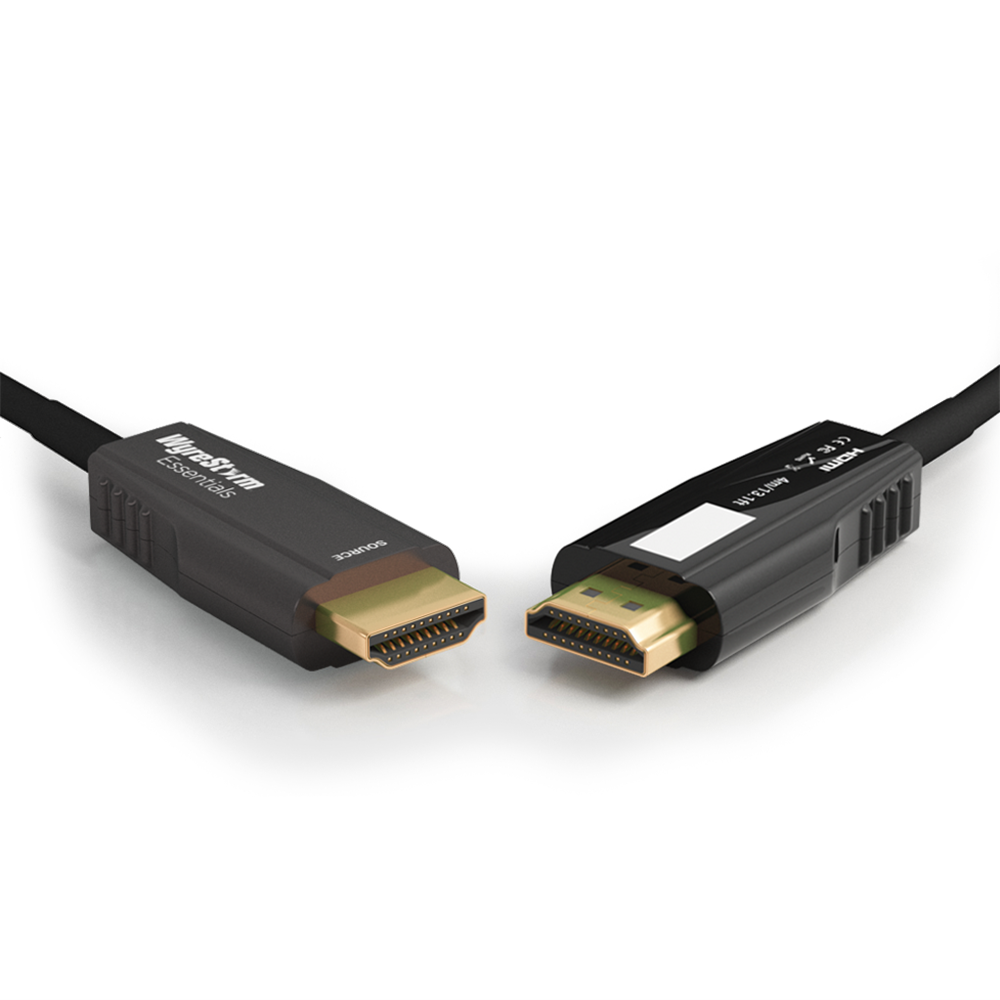

• High quality aluminum construction with low-profile 20mm/0.79” TX head
• Supplied coiled in box
• No single use plastic included* #SUPFree
• Also available in 2m, 6m & 8m lengths in Essentials range and 10-50m lengths available in WyreStorm Professional range of products

SPECIFICATIONS

Transmission

• Transmission Encoding: Uncompressed AOC
• End to End Latency: 10µs
• Maximum Transmission Bit Rate: 24 Gbps (4-core, 6Gbps per lane)

Video

• HDMI:
  • (v2.0b) TMDS | 600MHz Maximum
  • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
• Input: 1x HDMI: 19-pin Type A Male
• Output: 1x HDMI: 19-pin Type A Male
• Maximum Data Rate: 22.8 Gbps

  • 1920x1080p @240Hz 8bit RGB
  • 2560x1440p @120Hz 8bit RGB
  • 3840 x 2160p @60Hz 10bit HDR 4:2:0
  • 3840 x 2160p @60Hz 12bit HDR 4:2:2
  • 3840 x 2160p @60Hz 10bit HDR 4:4:4
  • 3840 x 2160p @60Hz 10bit HDR RGB
  • 5120 x 2880p @30Hz 10bit HDR 4:4:4
• Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100

Audio

• Audio Formats:
  • 2ch PCM
  • Multichannel LPCM
  • DTS-X
  • Dolby Atmos
• Maximum Sampling Rate: 192KHz
• Maximum Audio Channels: 32
• Audio Return Channel (ARC): Supported

Communication and Control

• HDCP: Pass-through, 2.3 supported
• EDID: Pass-through, RX>TX
• Ethernet: 100Mbps supported
• Consumer Electronics Control (CEC): Supported
• Auto Low Latency (ALLM): Supported
• Variable Refresh Rate (VRR): Supported

Installation Restrictions

• Max Bend Radius: 2cm
• Max Pull Tension: 15kg/33lbs
• Orientation: Uni-directional - Observe signal flow direction prior to installation

Power

• Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
• Max Power Consumption: 250mW

Environmental

• Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 0.85 BTU/hr
• Impact: Low, free from single use plastic

Dimensions & Weight (Connector Housing)

• Height :9mm/0.36in
• Width: 19.8mm/0.78in
• Depth: 39.5mm/1.56in
• Weight: NA

Regulatory

• Safety and Emission: All Lengths: CE | FCC | RoHS
