Wyrestorm 10M Optical Hdm CABHAOC10 Wyrestorm

Product Code: WY-CABHAOC10

Brand
Wyrestorm
RRP $519.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Terminated Cable Type HDMI
  • Details
  • Downloads

CAB-HAOC-10

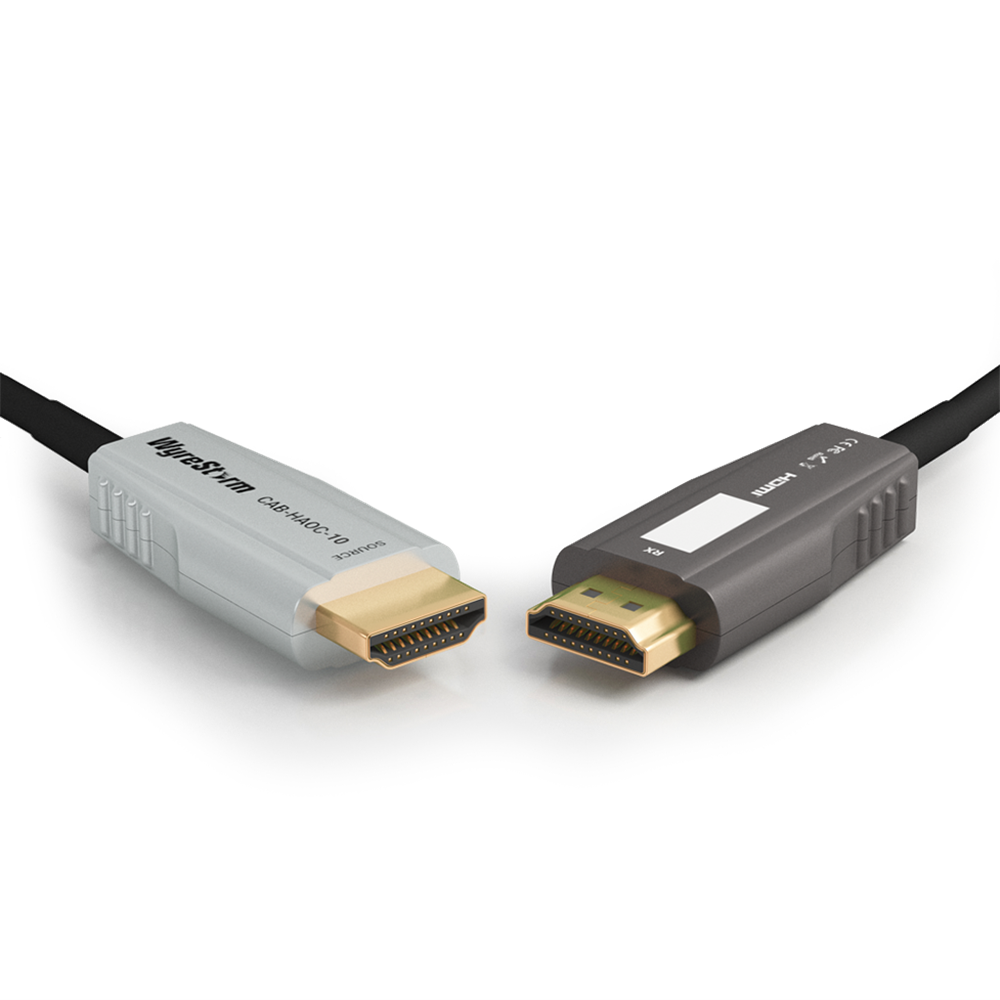

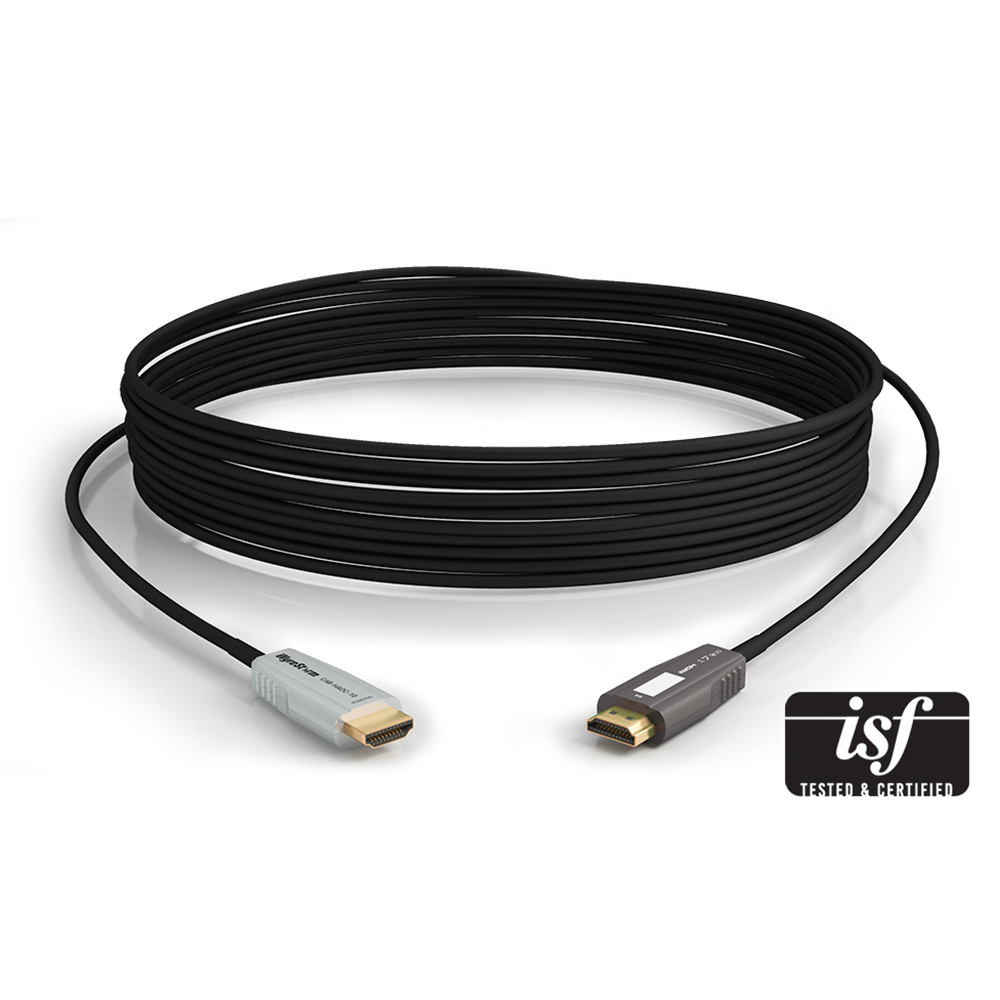

18Gbps Over Active Optical HDMI Cable 10m/32ft

Next generation active optical HDMI cables designed for next generation 4K UHD with HDR content, the WyreStorm CAB-HAOC-10 delivers uncompressed full bandwidth 18Gbps HDMI content up to 10m/33ft using the latest optical transmission technology.

Features:

  • Uncompressed transmission of 18Gbps HDMI content over optical transmission
  • Available in 10m/32ft, 15m/49ft, 20m/65ft and 30m/98ft cable lengths
  • Supports full bandwidth 4K/60 4:4:4 8-bit and 4K/60 4:2:2 HDR 12-bit
  • Perfect for use in environments with excessive EM or RF interference
  • Solid alloy head construction with 20mm/0.79” width perfect for feeding through conduit
  • HDCP 2.2, ARC and CEC support





  • Uncompressed optical transmission of HDMI content up to 24Gbps:
    • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
    • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
    • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
  • Compatible with all current and emerging HDR standards at up to 60Hz:
    • HLG (Hybrid Log Gamma)
    • HDR-10 and HDR-10+
    • Dolby Vision
    • PQ (Perceptual Quantizer)
    • SL-HDR-1
  • Ready for future HDCP 2.3 content encryption
  • True native HDMI communication ensures CEC and ARC communication between compatible devices
  • Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
  • Perfect for use in environments with excessive EM or RF interference
  • Kevlar protected communication cores
  • High quality aluminum construction with low-profile 20mm/0.79” TX head
  • Supplied coiled on cardboard spool in box, with RX head out first.
  • No single use plastic included* #SUPFree

SPECIFICATIONS


Transmission
  • Transmission Encoding: Uncompressed AOC
  • End to End Latency: 10µs
  • Maximum Transmission Bit Rate: 24 Gbps (4-core, 6Gbps per lane)
Video
  • HDMI:
    • (v2.0b) TMDS | 600MHz Maximum
    • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
  • Input: 1x HDMI: 19-pin Type A Male
  • Output: 1x HDMI: 19-pin Type A Male
  • Maximum Data Rate: 22.8 Gbps
  • Video Resolutions (Max):
    • 1920x1080p @120Hz
    • 2560x1440p @144Hz
    • 3840x2160p @60Hz 10bit HDR 4:2:0
    • 3840x2160p @60Hz 12bit HDR 4:2:2
    • 3840x2160p @60Hz 10bit HDR 4:4:4
    • 3840x2160p @60Hz 10bit HDR RGB
    • 5120x2880p @30Hz 10bit HDR 4:4:4
  • Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100
Audio
  • Audio Formats:
    • 2ch PCM
    • Multichannel LPCM
    • DTS-X
    • Dolby Atmos
  • Maximum Sampling Rate: 192KHz
  • Maximum Audio Channels: 32
  • Audio Return Channel (ARC): Supported
Communication and Control
  • HDCP: Pass-Through, 2.3 Supported
  • EDID: Pass-Through, RX > TX
  • Ethernet: 100Mbps Supported
  • Consumer Electronics Control (CEC): Supported
  • Auto Low Latency Mode (ALLM): Supported
  • Variable Refresh Rate (VRR): Supported
Installation Restrictions
  • Max Bend Radius: 2cm
  • Max Pull Tension: 15kg/33lbs
  • Orientation: Uni-directional - Observe signal flow direction prior to installation
Power
  • Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
  • Max Power Consumption: 250mW
Environmental
  • Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 0.85 BTU/hr
  • Impact: Low, free from single use plastic
Dimensions & Weight (Connector Housing)
  • Height: 9mm/0.36in
  • Width: 19.8mm/0.78in
  • Depth: 39.5mm/1.56in
  • Weight: NA
