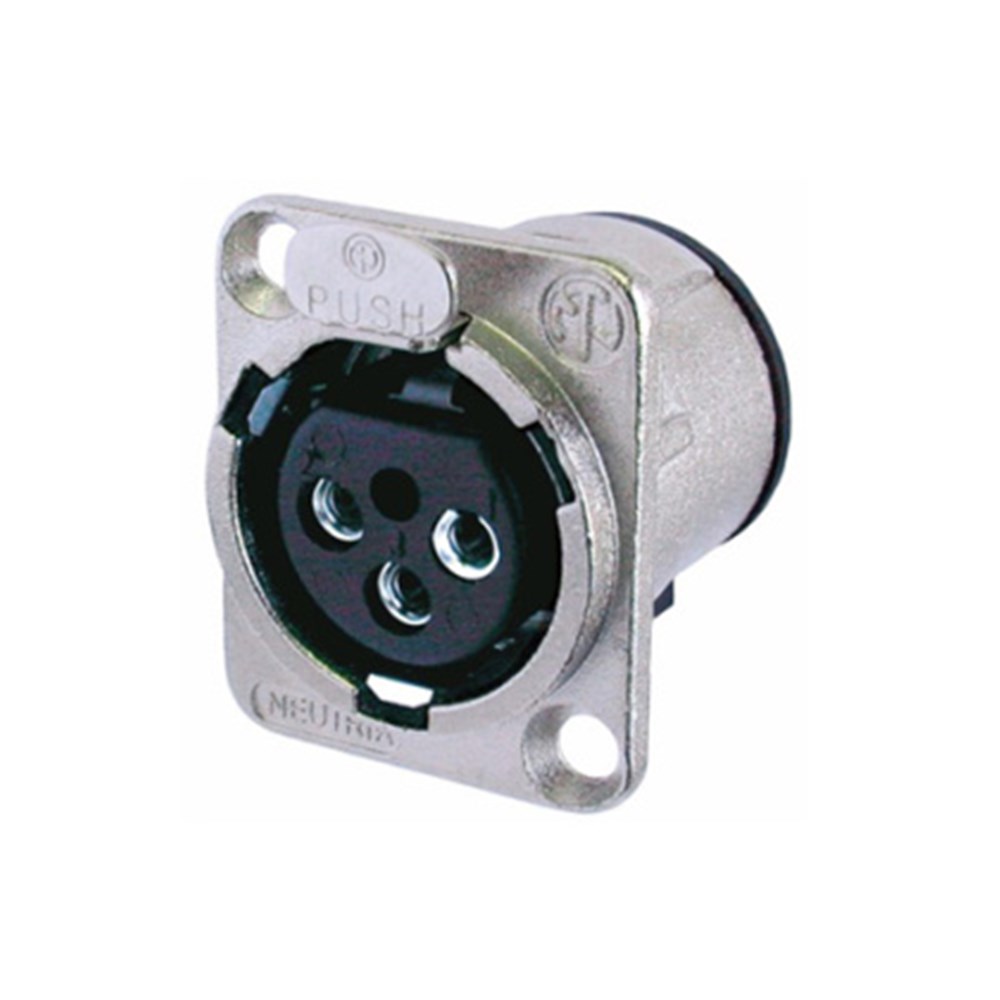

NC3FD-V

3 pole female receptacle, vertical PCB mount, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.

Features & Benefits

• D-shape metal shell
• Optimal RF protection using 3 shield contacts.
• Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
• Front or rear panel mount

Specifications

Product

Title

• NC3FD-V

Connection Type

• XLR

Gender

• female

Electrical

Capacitance between contacts

• ≤ 4 pF

Contact resistance

• ≤ 5 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 10 GΩ (initial)

Rated current per contact

• 6 A

Rated voltage

• < 50 V

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiring

• vertical PCB mount

Locking device

• Latch lock

Mounting direction

• Rear mounting

Chassis shape

• D

Material

Contact plating

• 2 µm Ag over 2 µm Ni

Contacts

• Bronze (CuSn6)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Nickel

Environmental

Approvals

• UL

Flammability

• UL 94 HB

Standard compliance

• IEC 61076-2-103

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
