NetworkHD™ 4-Input 4K60 Multiview Switcher

The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with five different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.

Additional Features

• Built-in web interface for standalone configurations
• Analog audio de-embed for connection to 3rd-party audio systems

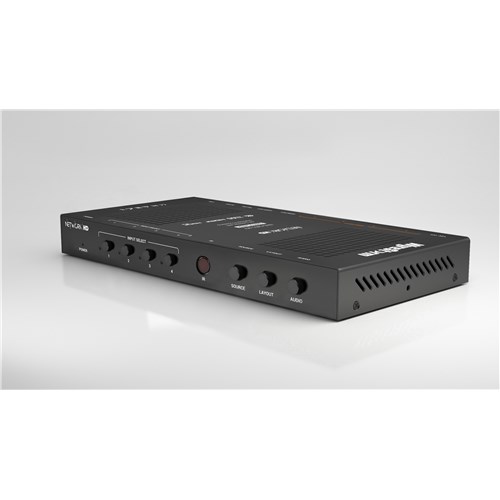

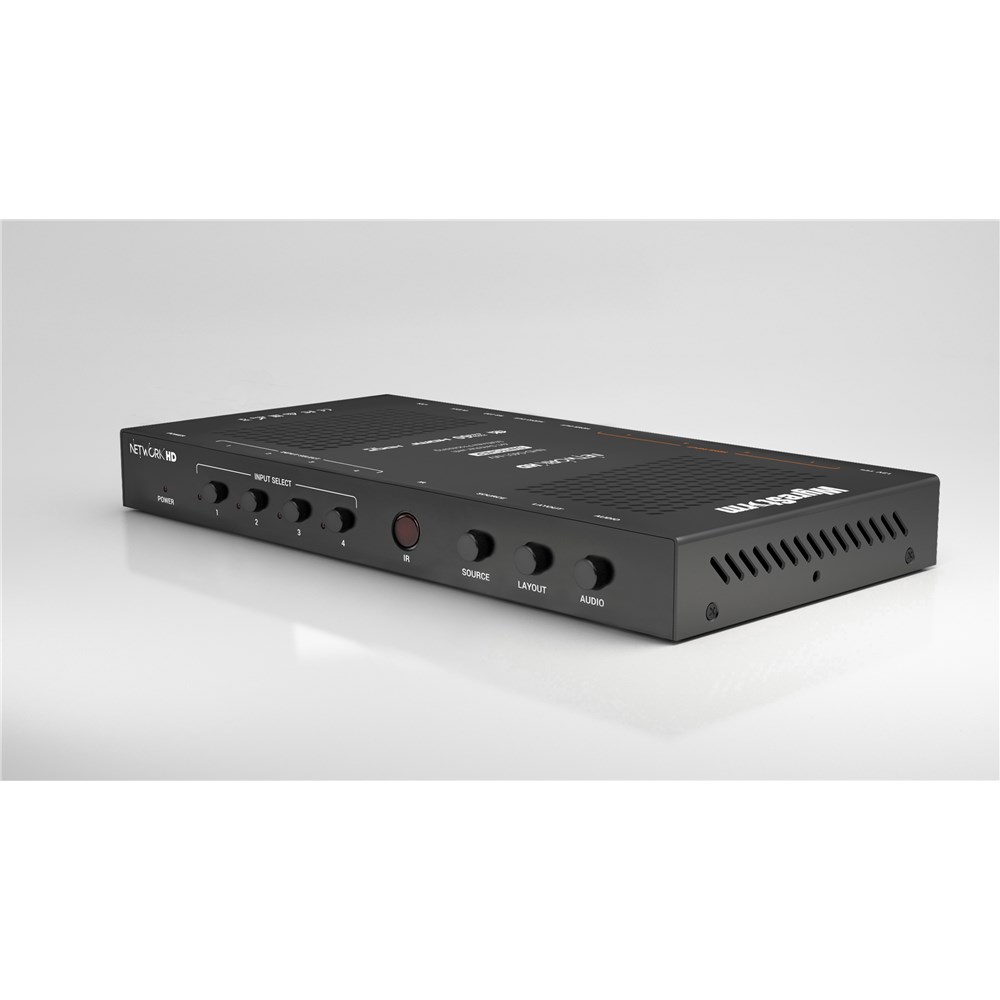

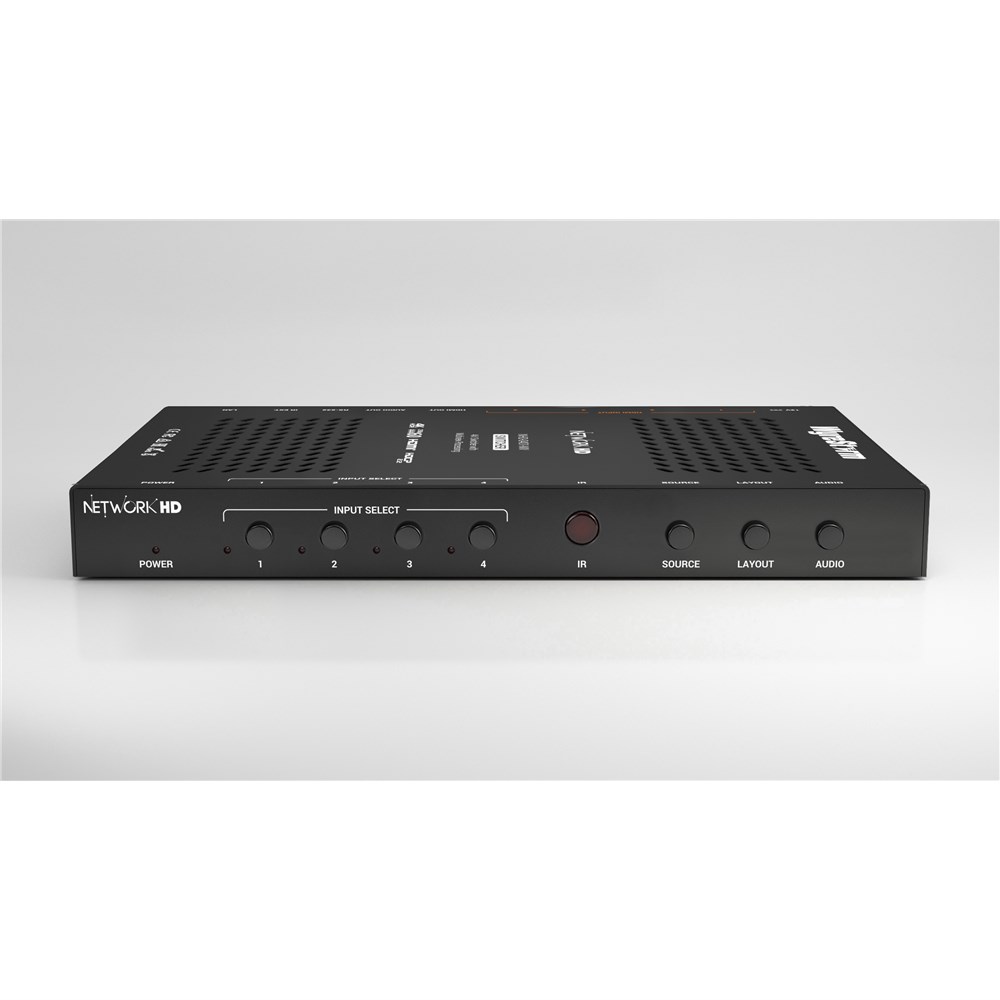

• Front panel control buttons for switching inputs and multiview layouts
• Compatible with NetworkHD Touch

VERSATILE
Choose to use this switcher as a standalone multiview processor or pair it with a NetworkHD system. For a standalone solution, connect source devices directly to the four HDMI inputs and a display to the HDMI output. Or connect the switcher to a network switch with a NHD-CTL-PRO and link it to NetworkHD 400 or 500 series encoders & decoders.

READY, SET, GO
No need to spend time configuring complicated multiview layouts. Five pre-loaded layouts are available that accommodate many different uses. Seamlessly switch between each layout and easily control what source is in each multiview window. You can even discretely choose which audio is playing from the four inputs.

HDMI 2.0
Each input supports the latest HDMI 2.0 content, including 4K60 4:4:4 and high dynamic range such as HDR10, HLG and Dolby Vision. A built-in HDMI downscaler will automatically adjust the resolution to match the maximum capability of the connected display.

RACK MOUNTABLE
The NHD-0401-MV is specifically designed to fit perfectly inside the NHD-000-RACK4, making it easy to be part of a NetworkHD system. Slot the switcher next other encoders and decoders for a tidy and convenient installation.

Technical Specifications

Audio and Video

• Inputs/Outputs

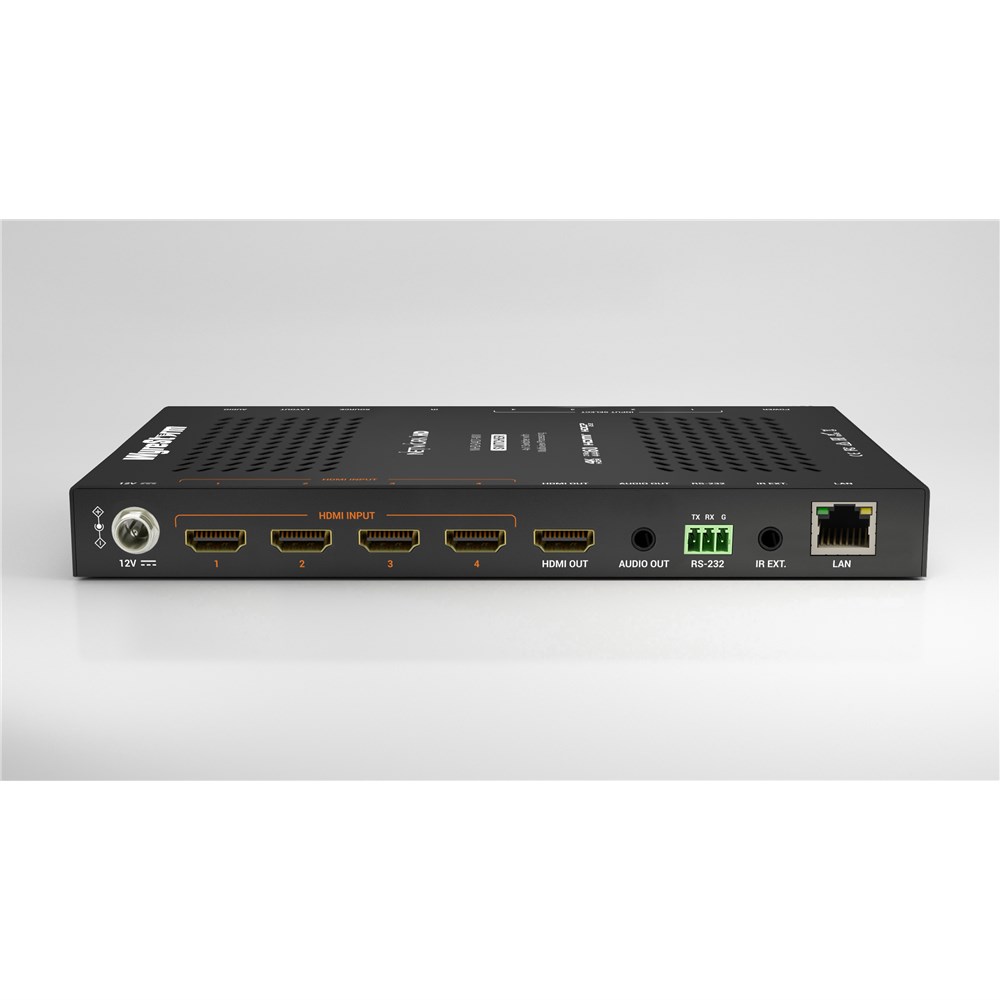

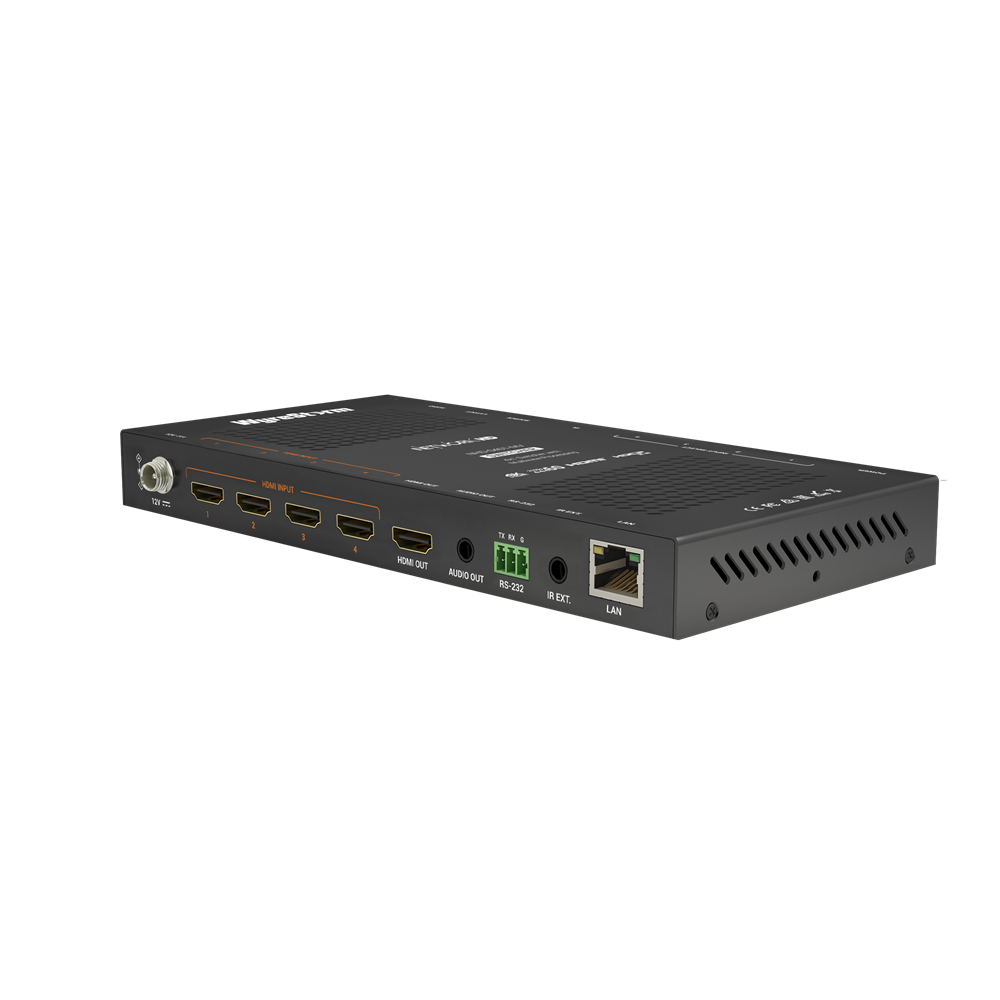

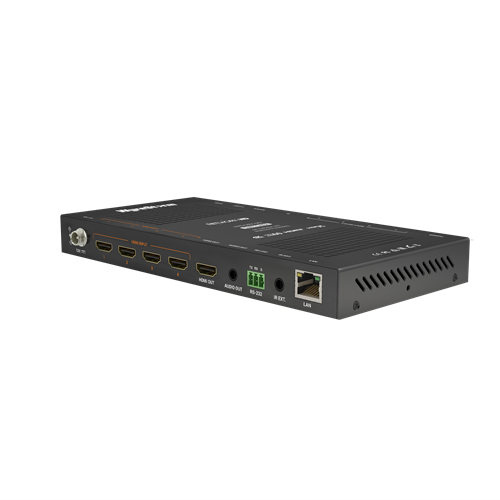

  • 4x HDMI In
  • 1x HDMI Out
  • 1x 3.5mm TRS Analog Out
• Maximum Pixel Clock
  • 600Mhz
• Max Video Resolutions
  • 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
  • 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
  • 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
  • 1920x1080p @60Hz 12bit
• Supported Standards
  • RGB | DCI | BT.2020 | Rec.709
• Output Video Encoding
  • Uncompressed HDMI

COMMUNICATION AND CONTROL

• HDMI
  • HDMI 2.0b | HDCP 2.2 | CEC | EDID
• Network
  • 1x 1GbE RJ45
• RS-232
  • 1x 3-Pin Phoenix Connector (API Control)
• IR
  • 1x IR RX 3.5mm TRS Stereo Jack

POWER

• Power Supply
  • 12V 2A DC
• Power Consumption
  • 18w
