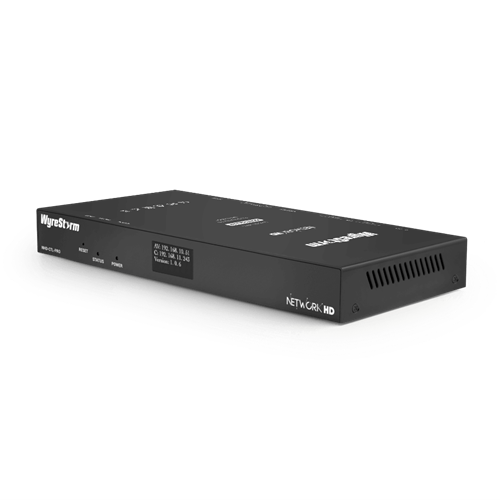

Pro Controller for NetworkHD™ Series

The NHD-CTL-PRO is the new brain for NetworkHD and reimagines how a system should operate. We’ve designed the NHD-CTL-PRO from the ground up to provide an innovative cutting-edge experience. The all-new unified setup environment allows all configurations to be made from one user interface. This includes adjusting IP address, naming endpoints, creating video walls, firmware updates and much more. This intuitive user interface can be accessed from any device with a web browser whether it be a computer, smartphone, or tablet. The NHD-CTL-PRO also includes a powerful setup wizard that guides you from start to finish making it incredibly easy to have a fully configured NetworkHD system in a matter of minutes.

UNIFIED ENVIRONMENTS
The all-new software environment provides an intuitive setup and control experience for NetworkHD. All configurations are performed in one interface which can be access via any device with a web browser. We’ve taken all the common settings and made them front facing and quicker to access along with adding a ton of new features into the mix!

SETUP WIZARD
Whether your new to NetworkHD or a seasoned veteran, the setup wizard will help you configure a system quickly an easily by providing a guided step-by-step process such as adjusting IP addresses, naming endpoints, or creating a video wall. NetworkHD is one of the simplest AV over IP systems in the market to setup.

DUAL NETWORK
Dual network interfaces allow the NHD-CTL-PRO to bridge AV networks and enterprise/control networks easily and efficiently. The two network interfaces provide complete isolation keeping multicast AV traffic separated from managed IT systems.

SECURITY
Equipped with the latest security protocols. SSH and TLS encrypt all communications between the NHD-CTL-PRO and external computers or control systems accessing the API. HTTPS secures the webserver with certification authentication ensuring safe access to the user interface.

DUAL POWER
The controller supports both PoE or a local AC power connection providing flexibility and redundancy.

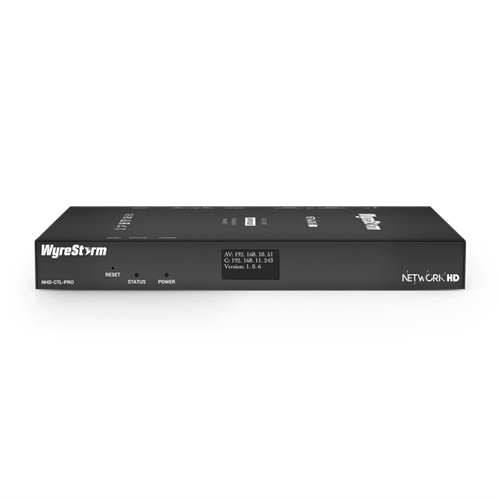

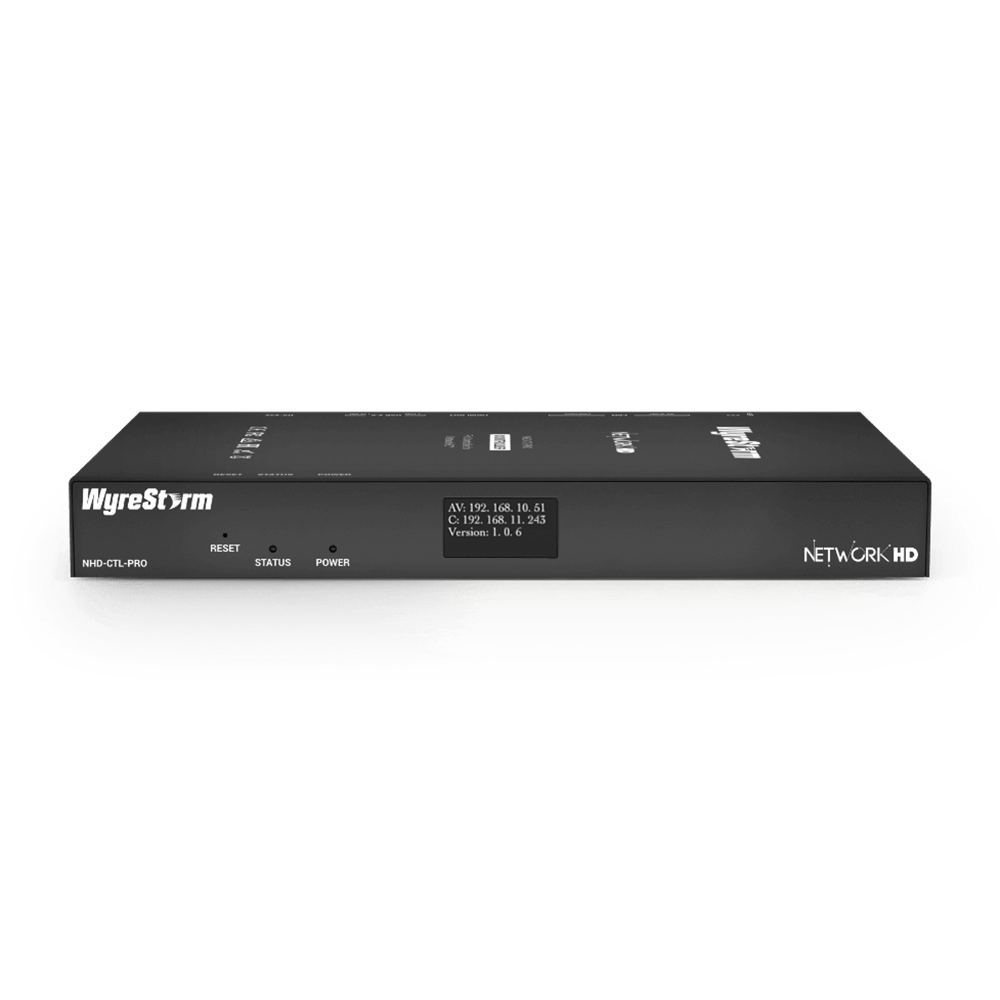

LED SCREEN
A simple screen that provides quick access to system information such as IP addresses and software versions.

OPEN API
Create custom control interfaces with the powerful NetworkHD API which is easy to use and understand.

Additional Features

• Compatible with all current NetworkHD series*
• Instant deployment available for the NetworkHD Touch control app to provide live video previews and drag and drop source selection
• Provides automatic discovery of NetworkHD devices
• Interfaces to major control systems through powerful drivers
• *Discontinued NetworkHD models not supported

Technical Specifications

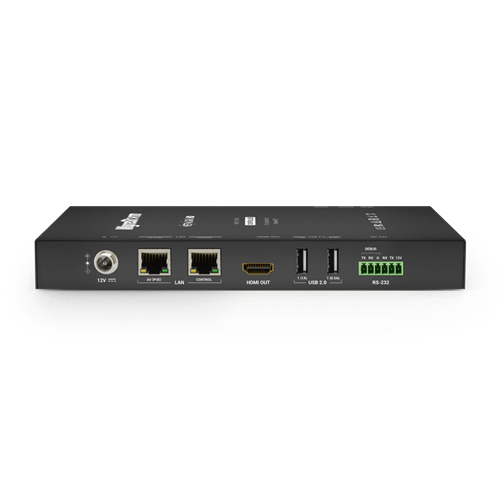

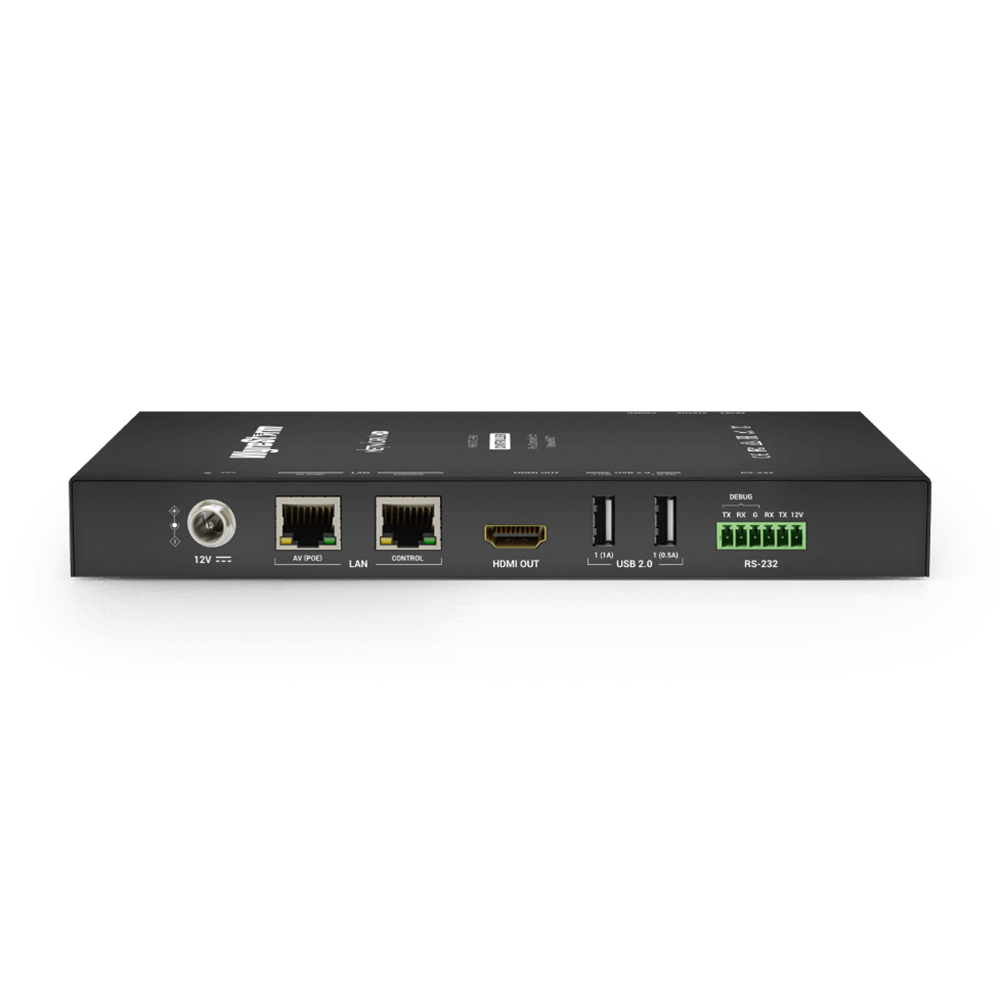

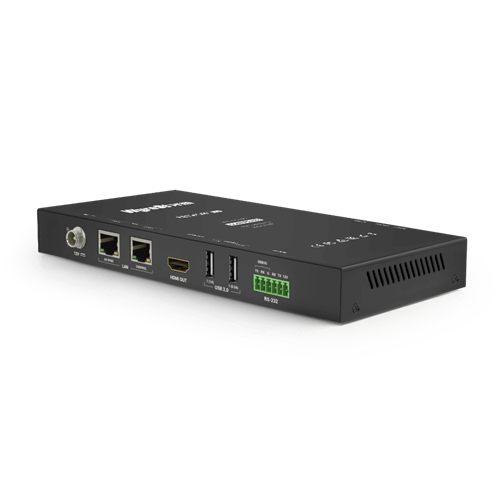

• COMMUNICATION AND CONTROL
  • Network: 2x 1GbE RJ45 (Control & AV)
  • RS-232: 1x 6-Pin Phoenix Connector
  • Security Protocols: SSH | TLS | HTTPS
  • USB: Reserved for future use
  • HDMI: Reserved for future use
• POWER
  • Power Supply: 12v DC | PoE Compliant
  • Power Consumption: Max 15.4 | Average: 8w
• ENVIRONMENTAL
  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
  • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
  • Maximum BTU: x
  • Dimensions: 215mm x 120mm x 25mm/8.46”x 4.72”x 0.98” (1RU)
  • Weight: x

In the Box

• 1x NHD-CTL-PRO Controller
• 1x Pair Rack Mount Brackets
• 1x Power Supply (US/UK/EU/AU)
• 1x 6-pin Phoenix Connector
