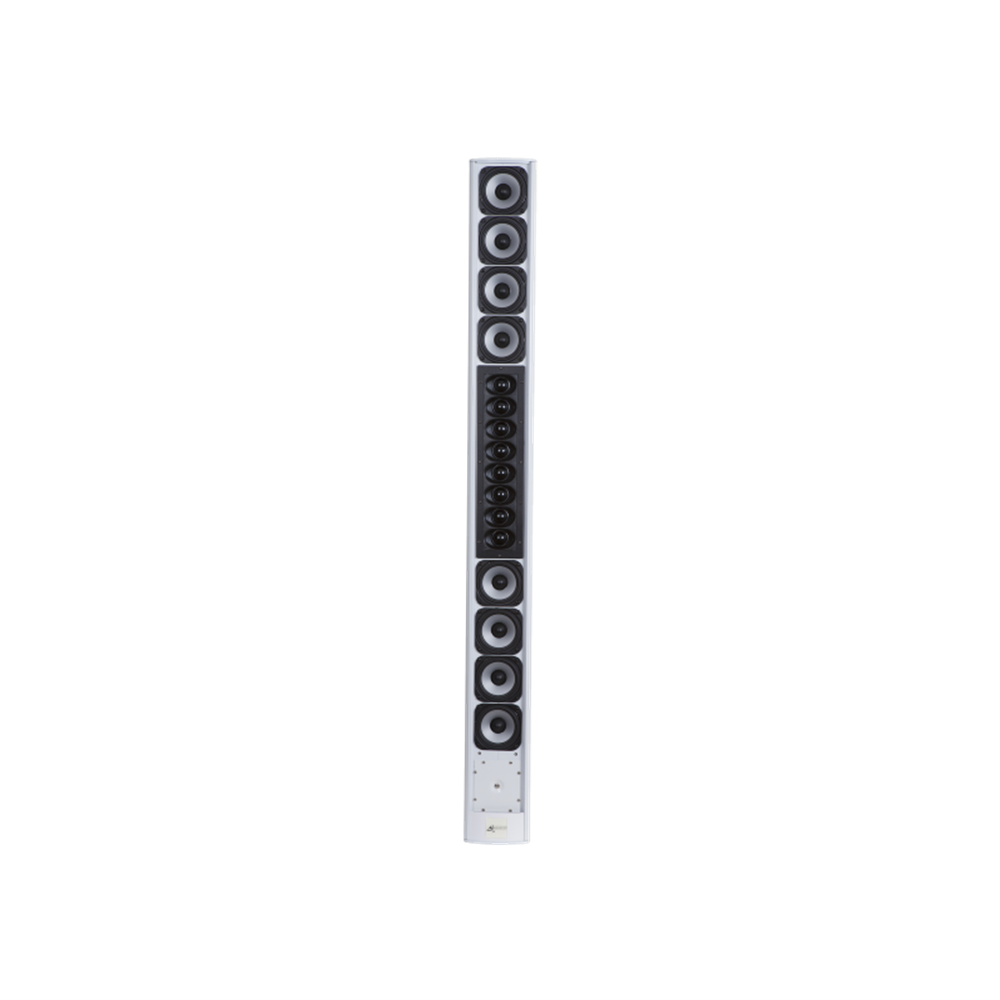

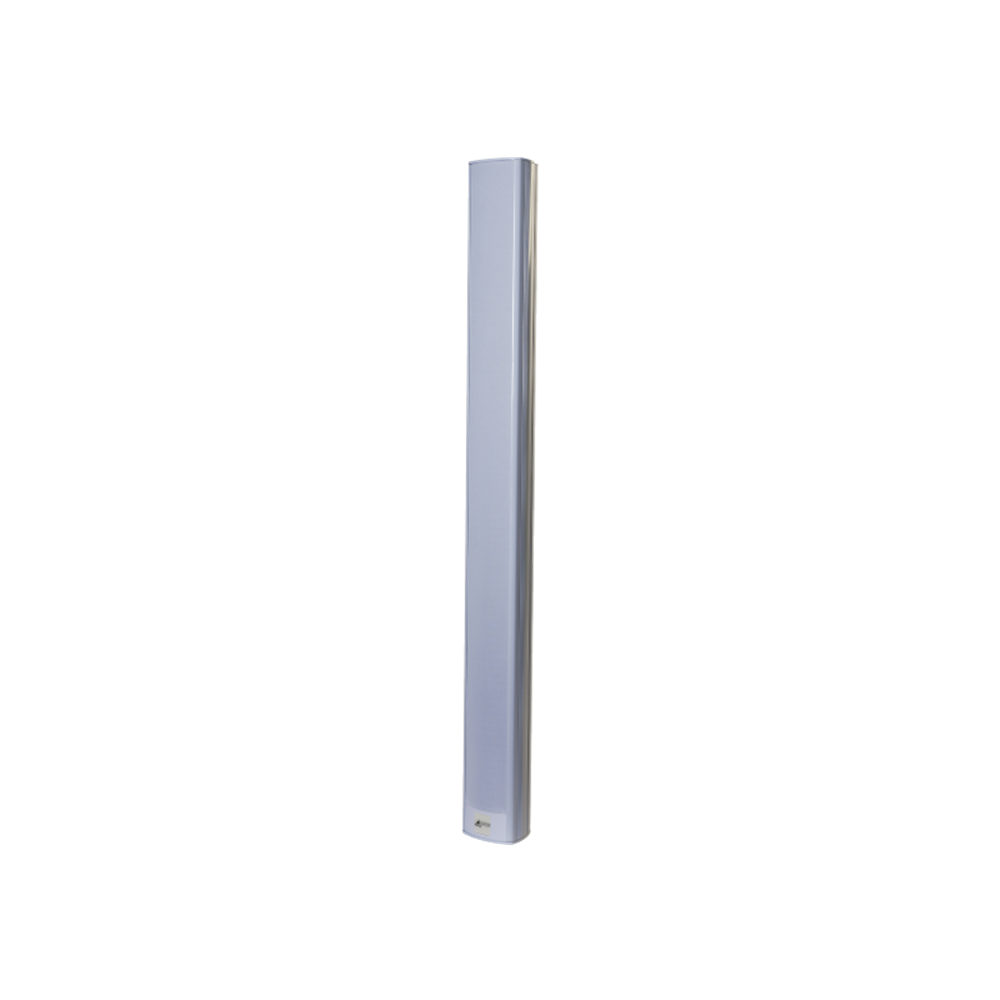

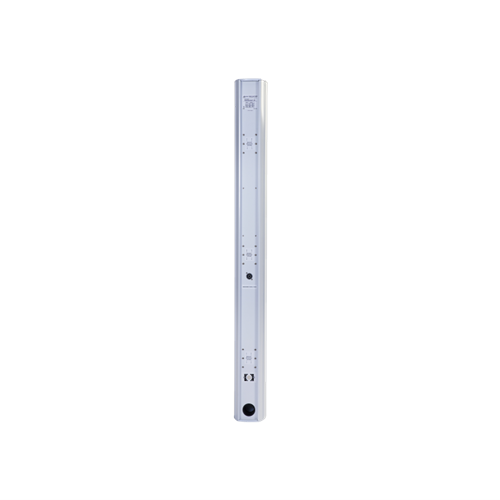

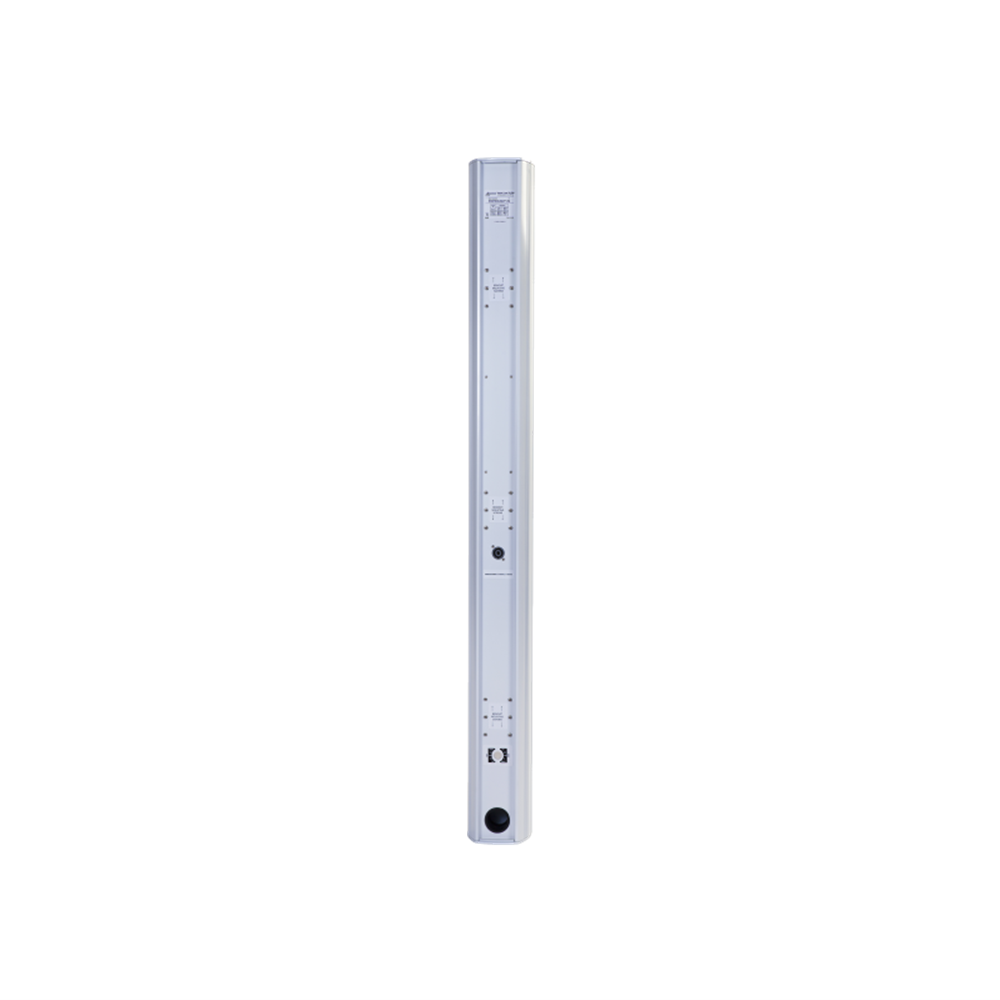

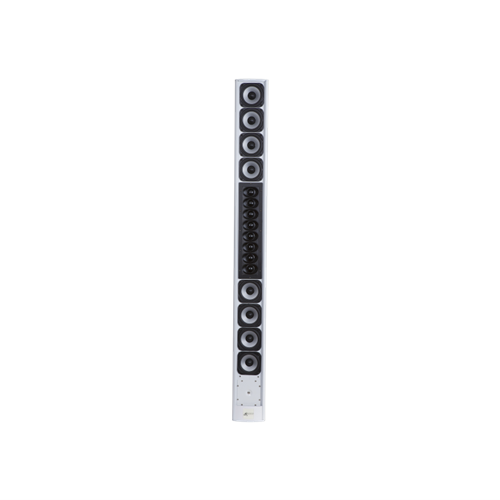

VL8W

Column Line Array

White

• 110°H x 20°V Dispersion pattern
• Frequency response 180 Hz – 20 kHz
• Crossover frequency 1800 Hz
• Maximum SPL is 119 dB continuous , 125 dB peak.
• Power tappings of 7.5W (70 Volt), 15 W, 30 W, 60W (100V) and 4 ohm
• 300 watts RMS into 4 ohms
• Innovative waveguide featuring 8 identical 1" tweeters
• 8 robust 3" midrange drivers

Specifications

• Form Factor: Column
• Max Continuous Power: 300W
• Tappings: 60W-30W-15W-7.5W-4 Ohm
• Max Program Power: 600W
• IP Rating: No
• Max Peak Power: 1200W
• EASE Model: No
• SPL 1W/1m: 94dB
• Powered: Passive
• Max SPL RMS: 119dB
• Driver Diameter: 3" x 8 & 1" x 8
• Max SPL Peak: 125dB
• Colour: White
• Frequency Response (-3dB): 180Hz - 20kHz
• Warranty: 5 years
• Dispersion: 110 x 20deg
• Product Dimensions: (W x D x H) 125mm x 110mm x 1264mm
• Shipping Dimensions: (W x D x H) 174mm x 174mm x 1325mm
• Net Weight: 10.3 Kg
• Shipping Weight: 12.2 Kg
• GTIN EAN: 9323383013926
