Product Code: AJ-VL8B

Technical Specifications

Brands	Australian Monitor
Series	Column Series
Size	3"
Speaker Type	Stage / Stadium

Details
Downloads

VL8B

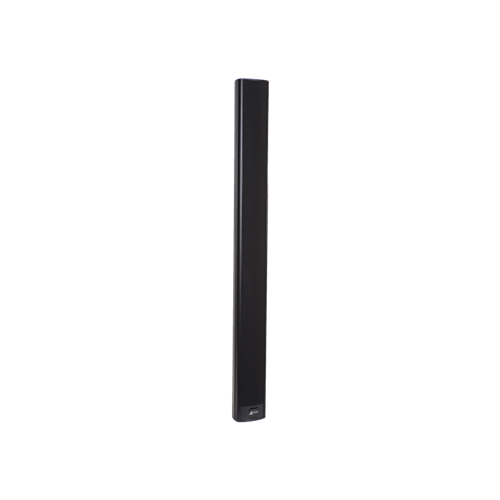

Name: Monopole Line Array Black VL8B Australian Monitor
Price: 1909 NZD

Column Line Array

Black

The advantages of column array technology in challenging acoustic environments has recently become better understood. Issues of low speech intelligibility, the constant threat of feedback and fast diminishing SPL level have always been hampered by the traditional driver & horn box. The release of the Australian Monitor VL8 now allows you to address audio reinforcement in these difficult spaces.

110°H x 20°V Dispersion pattern
Frequency response 180 Hz – 20 kHz
Crossover frequency 1800 Hz
Maximum SPL is 119 dB continuous , 125 dB peak.
Power tappings of 7.5W (70 Volt), 15 W, 30 W, 60W (100V) and 4 ohm
300 watts RMS into 4 ohms

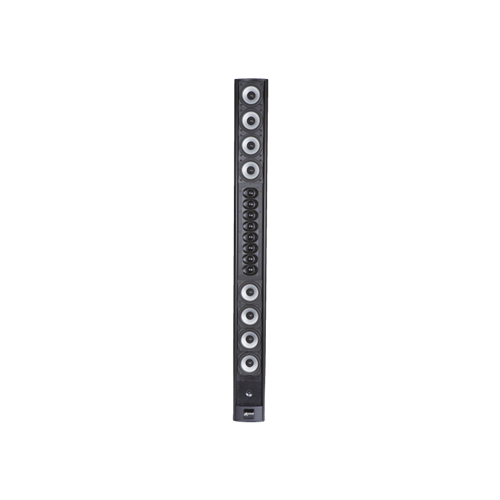

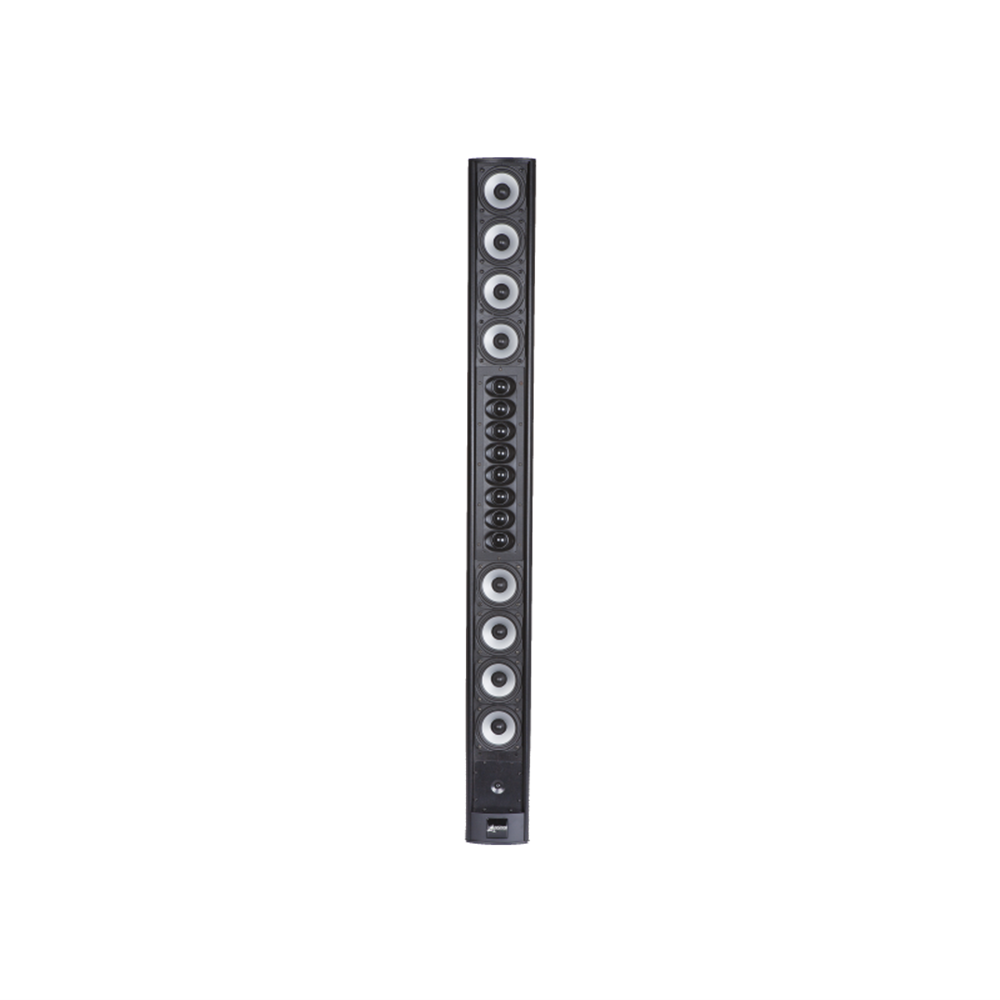

Innovative waveguide featuring 8 identical 1" tweeters
8 robust 3" midrange drivers

Specifications

Form Factor: Column
Max Continuous Power: 300W
Tappings: 60W-30W-15W-7.5W-4 Ohm
Max Program Power: 600W
IP Rating: No
Max Peak Power: 1200W
EASE Model: No
SPL 1W/1m: 94dB
Powered: Passive
Max SPL RMS: 119dB
Driver Diameter: 3" x 8 & 1" x 8
Max SPL Peak: 125dB
Colour: Black
Frequency Response (-3dB): 180Hz - 20kHz
Warranty: 5 years
Dispersion: 110 x 20deg
Product Dimensions: (W x D x H) 125mm x 110mm x 1264mm
Shipping Dimensions: (W x D x H) 174mm x 174mm x 1325mm
Net Weight: 10.3 Kg
Shipping Weight: 12.2 Kg
GTIN EAN: 9323383013865
