PICOBLUv2

30W Mixer Amplifier
Small Form Factor, Bluetooth

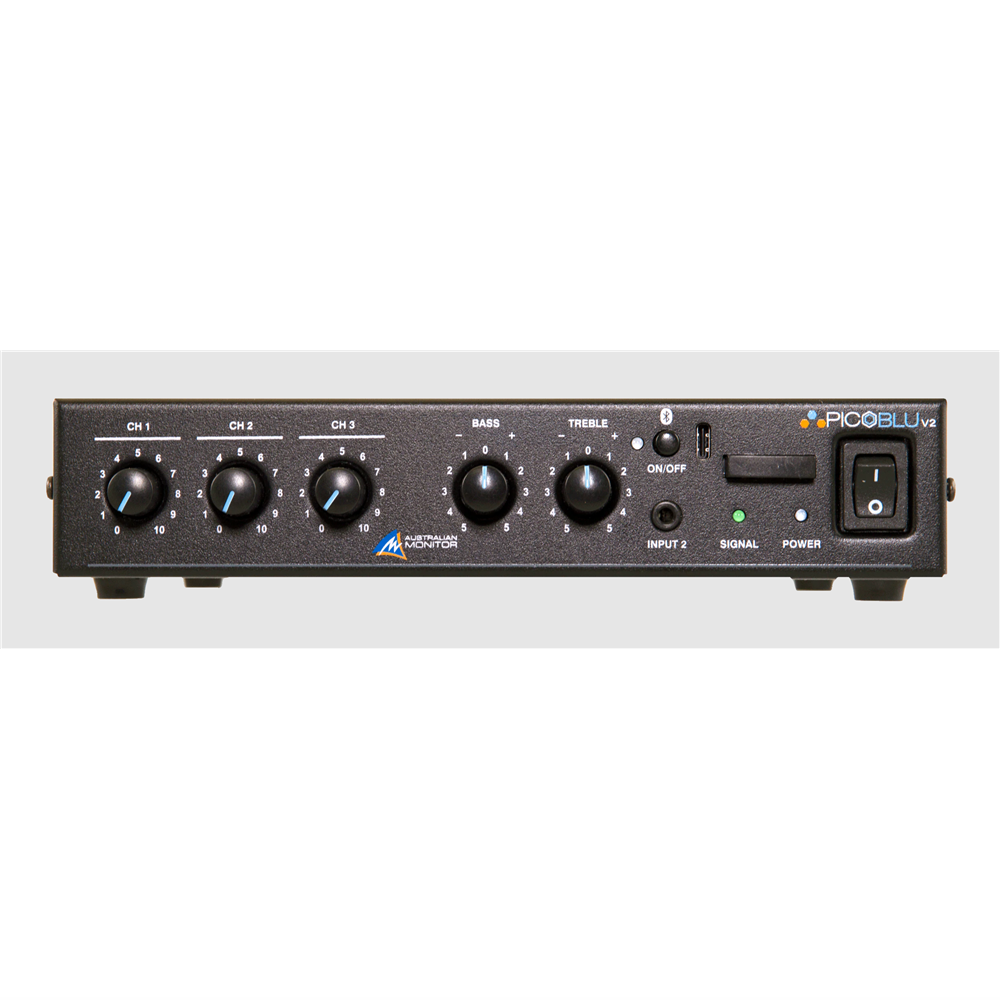

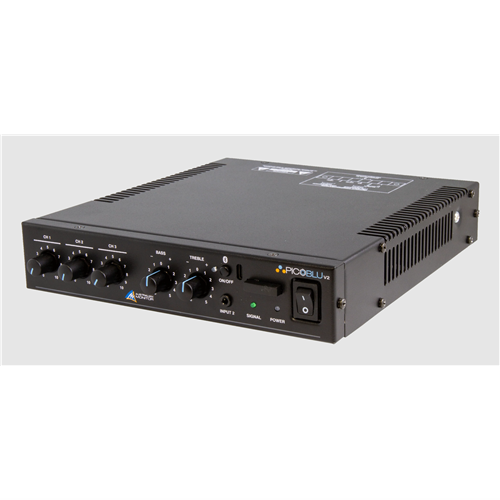

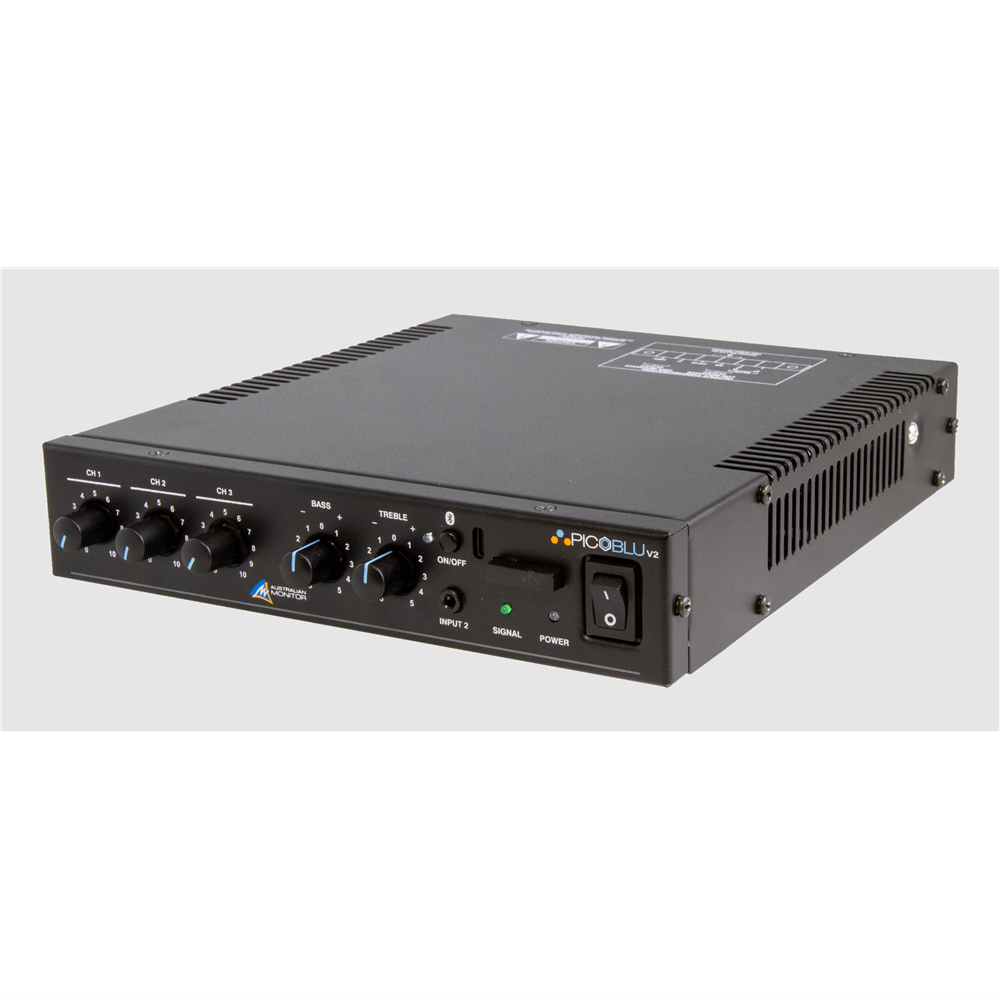

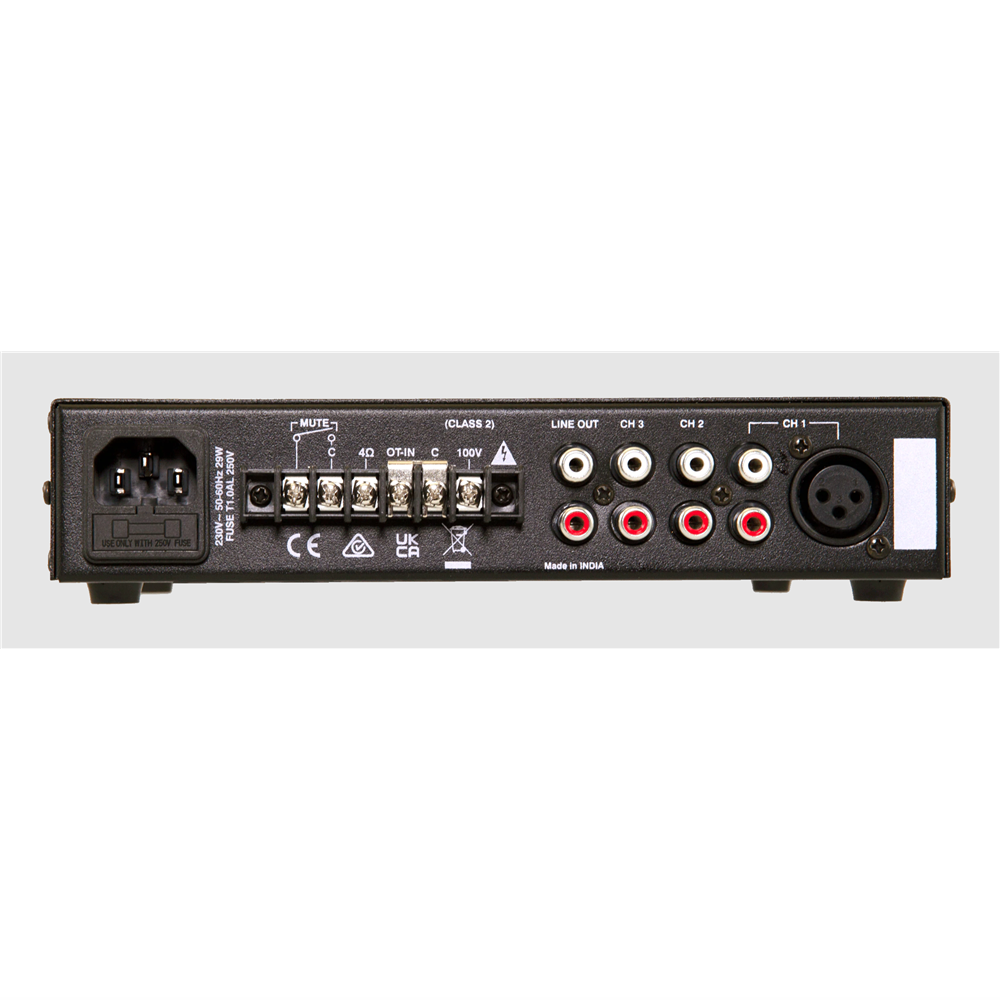

The Australian Monitor PICOBLU®v2 is our second generation small form factor 30W Mixer Amplifier specifically designed for small space applications such as cafes, restaurants, small retail and classrooms.

The PICOBLU®v2 now includes an upgraded and programmable Bluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features.

The system still maintains 3 input channels, including microphone, Bluetooth® and 3.5mm input jack options and an integrated 30W power amplifier with 4Ω and 100V output modes.

Capable of standalone, rack or under desk mounting, using optional kits, the PICOBLU®v2 can fit any application space with ease.

Bluetooth Control Software available from here

• 30W mixer amplifier
• 100 volt or 4 ohm output
• 3 Channel Mixer. Input 1 - MIC/Line, Input 2 - 3.5mm/Line, Input 3 - Bluetooth/Line
• Programmable Bluetooth name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• 3.5mm TRS jack line input
• External mute contact closure
• Small form factor
• Rack or desk mounting kits options. PICO-RMK and PICO-DMK.

Specifications

• Output Power per Channel    30W
• Frequency Response    104Hz - 20kHz
• Output Mode    4 Ohm-100V
• THD+N    < 0.2%
• Input Channels    1 MIC/Line and 2 Line
• Signal to Noise Ratio    > 85dB
• Input Voltage    230Vac 50Hz
• Input Sensitivity    MIC: 3mV - Line: 405mV
• Mounting    1RU
• Cooling    Fan-assisted
• Product Dimensions
  • (W x D x H)    217mm x 287mm x 44mm    Shipping Dimensions
  • (W x D x H)    315mm x 365mm x 105mm
• Net Weight    3.75 Kg
• Shipping Weight    4.7 Kg
• GTIN EAN    9323383020283
