DPA Microphones

This is a Special Order Item

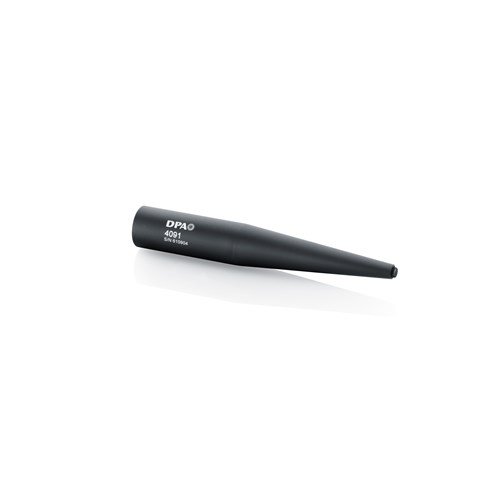

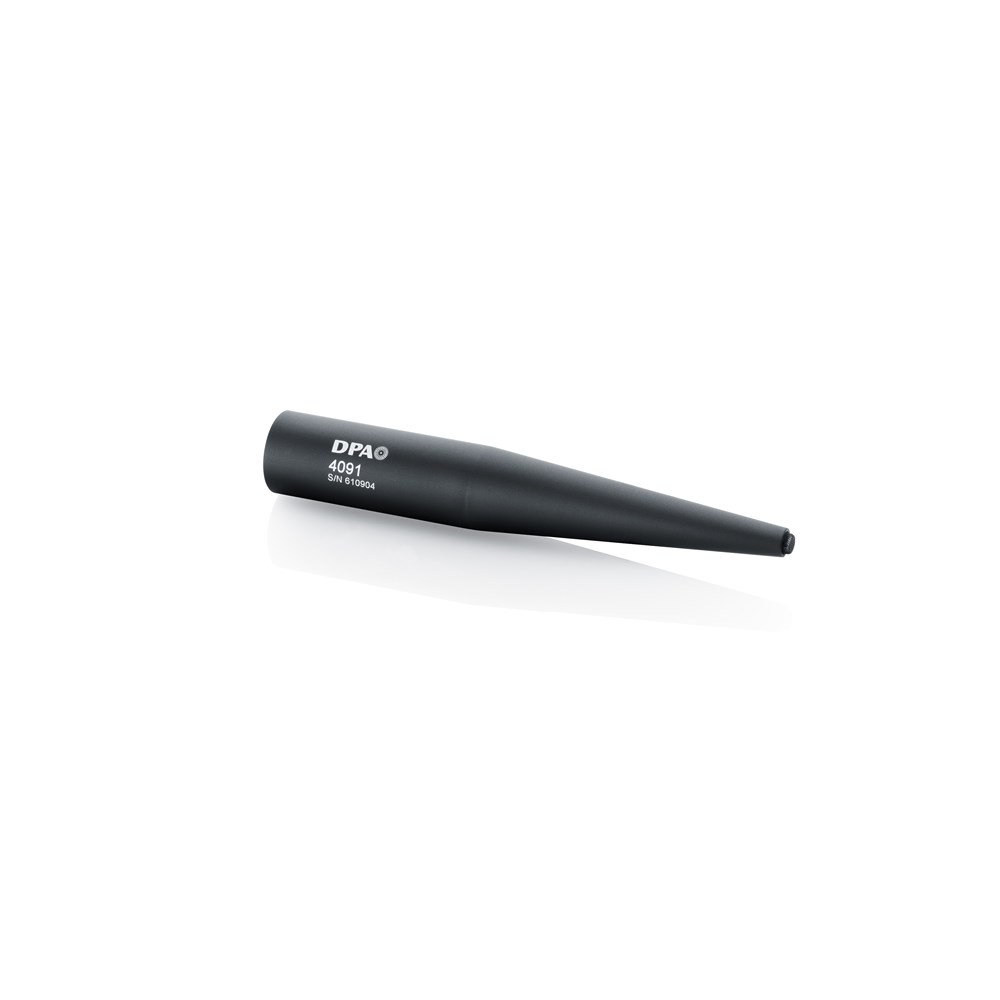

DPA Miniature Instrument Microphone - Lo sensitivity

Product Code: DP-4091

Brand
DPA Microphones
RRP $1,345.00


Unit of Measure
EACH


2 Year
Technical Specifications
Brands DPA Microphones
Series 4090
  • Details
  • Downloads

Natural and open sound

  • Natural and open sound
  • For instrument miking in the studio or on the stage
  • d:dicate™ 4090: For acoustic guitar, strings, piano and wind instruments
  • d:dicate™ 4091: Handles high-SPL with ease
This is a high-quality omnidirectional condenser microphone. Due to its uniquely natural and open sound, the d:dicate™ 4090 is suitable for instrument-miking applications in the studio or on the stage.


Specifications

Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser element with vertical diaphragm
Frequency range, ± 2 dB: 20 Hz - 20kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A)
Dynamic range: Typ. 97 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: < 40 ohm
Cable drive capability: Up to 300 m (984 ft)
Power supply: 48V Phantom power +/- 4V
Connector: 3-PIN XLR-M
Color: Black
Microphone weight: 38g
Microphone diameter: 19mm; at tip 6.7mm
Microphone length: 122 mm
Polarity: +V at pin 2 for positive pressure
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up t 90%
