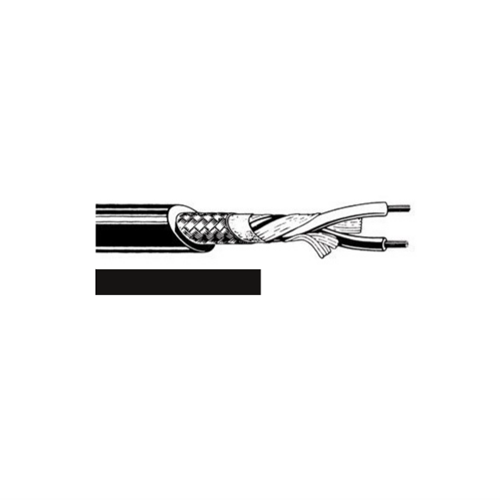

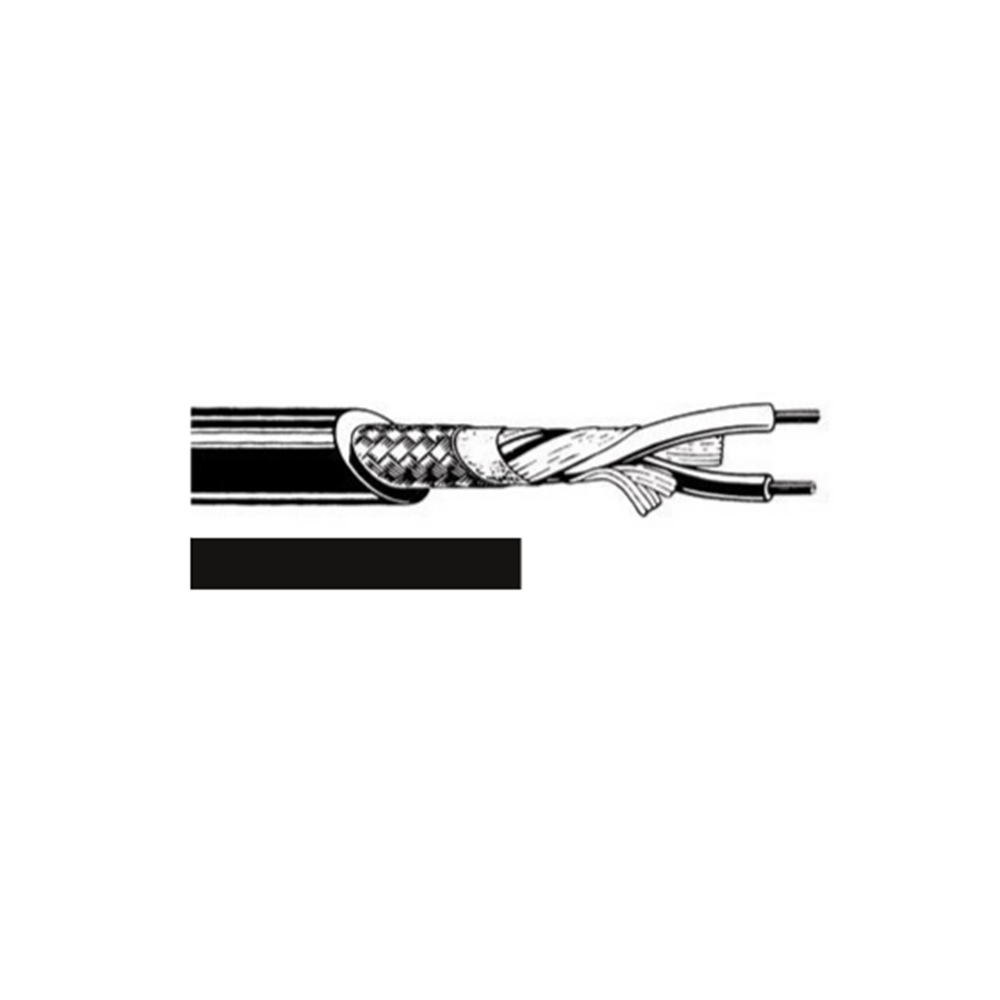

2-CONDUCTOR MICROPHONE CABLE

Product Code: CA-L-2T2S-BK200

Brand
Canare
RRP $900.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Microphone
  • Details
  • Downloads
Our standard diameter 2-conductor microphone cable for general purpose audio applications. The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.

Microphones.
Portable Applications.
Audio Patch Cords.
PA Systems.
Braided Copper Shield.
Flexible in Extreme Cold Weather.
Reduced Handling Noise.
Rejects EMI and RFI.
MECHANICAL SPECIFICATIONS
Model Std.
Lng.

ft.
(m)
Wt
Std.
Lng.
lbs
(kgs)
Nom.
O.D.

in.
(mm)
Jacket
Nom.
Thick.
in.
(mm)
Brittle
Point

(C°)
No.
of
Cond.
Insul.

Type*
Thick
mil
Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.²
Pitch
Twist
Quad
in.
(mm)

Shield
Cover-
age

L-2T2S 656
(200)
20
(9)
.236
(6.00)
.039
(1.0)
-56
(-49)
2 IPE
19.7
AC - #23
(60/3.15)
465
Less than 0.79
(less than 20)
greater than 94%
TAC
Braid
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = &gt1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.
ohm/1000ft
(ohm/100m)
Shield
D.C.R.
ohm/1000ft
(ohm/100m)
Nom.
Cap.
***

pF/m
Nom.
Cap.


pF/m
Nom.
Imp.
ohm
Nom.
Atten.
V/1000ft
(V/100m)
Group
Delay
Time
nS/ft
(nS/m)
L-2T2S less than 19.8
(less than6.5)
less than 9.4
(less than 3.1)
70 106 88 0.9
(0.3)
1.83
(6.00)
***Capacitance between&nbspconductors.
†Capacitance between conductors to shield.
COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
L-2T2S [+] [o] - - [o] - - [o] - - [o] - - [o]
[+]=Standard Color, [o]=Available Color, "- -"=n/a
